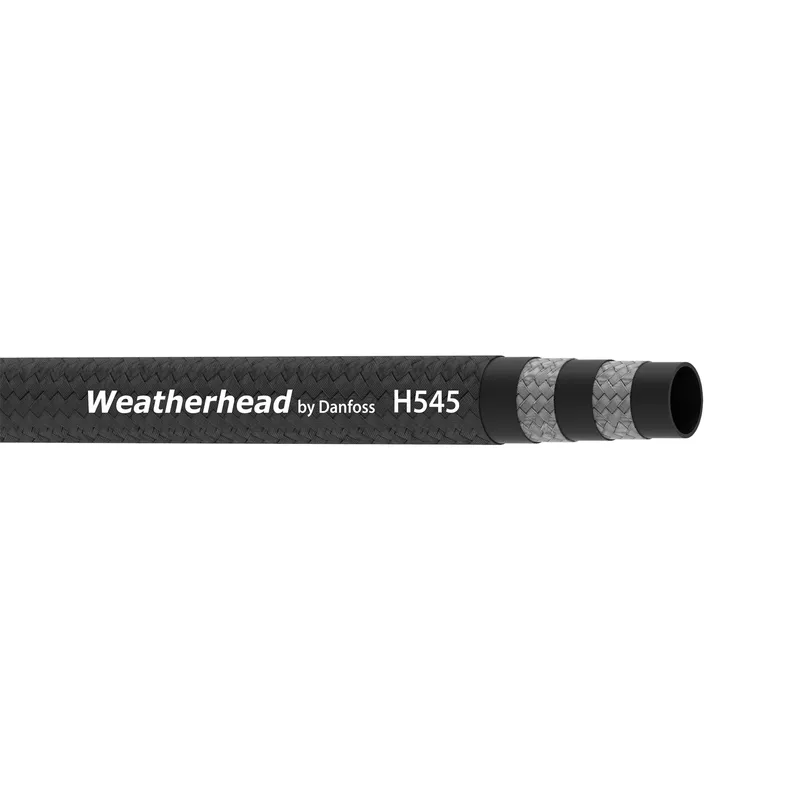

Danfoss H54512

HOSE-WTH, H545, -12, R1/1SC

MPN
H54512
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H54512?

Danfoss HOSE-WTH, H545, -12, R1/1SC, manufacturer part number H54512. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC757522698122
Abrasion resistanceStandard
ApplicationOff-highway vehicles
Bend radius min (inch)4.720
Bend radius min (mm)120.000
BrandWeatherhead by Danfoss
Burst pressure (bar)828
Burst pressure (psi)12000
ColorBlack
ConductivityConductive
Construction2 Wire Braid
Cover materialNylon 11
Impulse cycle (cycles)200000
Inside diameter (inch)0.75
Inside diameter (mm)19.00
Lay line styleInk transfer
Outside diameter (inch)1.12
Outside diameter (mm)28.60
Package formBulk
Product height in0.750
Product height mm19.000
Product width in0.750
Product width mm19
Qualified hose fittingsCrimp
Reinforcement materialBrass plated steel wire
SeriesH545 Series
Size-12
Tube materialNitrile (NBR)
Working pressure max (bar)207
Working pressure max (psi)3000
Working temperature max (C)121
Working temperature max (F)250.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H54512: frequently asked questions

When can H54512 be shipped?

H54512 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H54512 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H54512 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H54512, subject to availability and destination.
