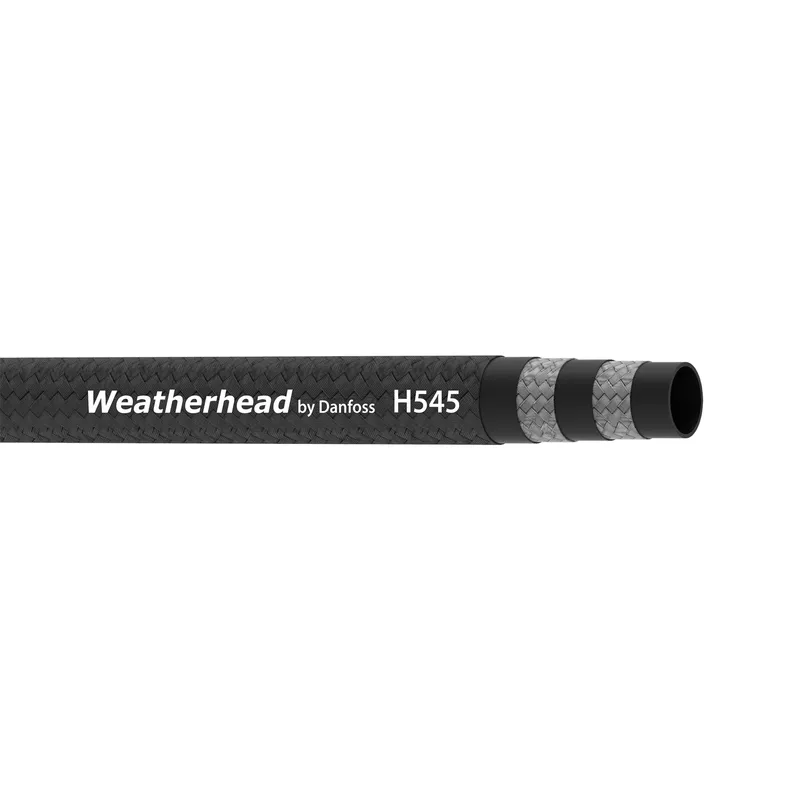

Danfoss H54508-250R

HOSE-WTH, H545, -8, 250FT, RL, R1/1SC

MPN
H54508-250R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H54508-250R?

Danfoss HOSE-WTH, H545, -8, 250FT, RL, R1/1SC, manufacturer part number H54508-250R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC757522698610
Abrasion resistanceStandard
ApplicationOff-highway vehicles
Bend radius min (inch)3.540
Bend radius min (mm)90.000
BrandWeatherhead by Danfoss
Burst pressure (bar)828
Burst pressure (psi)12000
ColorBlack
ConductivityConductive
Construction1 Wire Braid
Cover materialNylon 11
Impulse cycle (cycles)200000
Inside diameter (inch)0.50
Inside diameter (mm)12.70
Lay line styleInk transfer
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)0.80
Outside diameter (mm)20.30
Package formReel
Product height in0.500
Product height mm12.700
Product width in0.500
Product width mm12.7
Qualified hose fittingsCrimp
Reinforcement materialBrass plated steel wire
SeriesH545 Series
Size-8
Tube materialNitrile (NBR)
Working pressure max (bar)207
Working pressure max (psi)3000
Working temperature max (C)121
Working temperature max (F)250.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H54508-250R: frequently asked questions

When can H54508-250R be shipped?

H54508-250R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H54508-250R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H54508-250R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H54508-250R, subject to availability and destination.
