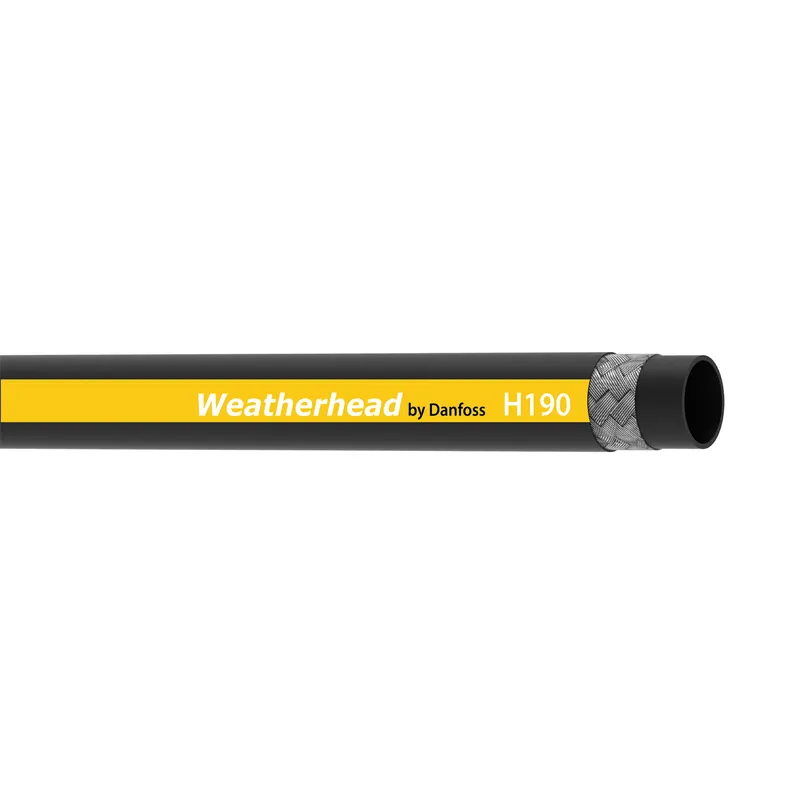

What is the Danfoss H19012-250R?

Danfoss HOSE-WTH, H190, -12, 250FT, RL, R1/1SN, manufacturer part number H19012-250R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789267054
Abrasion resistancePremium
ApplicationPetroleum
Bend radius min (inch)4.720
Bend radius min (mm)120.000
BrandWeatherhead by Danfoss
Burst pressure (bar)552
Burst pressure (psi)8000
CertificationsABS
ColorBlack
CompliancesEN853 1SN
Construction1 Wire Braid
Cover materialNitrile (NBR)
Impulse cycle (cycles)150000
Inside diameter (inch)0.75
Inside diameter (mm)19.00
Lay line styleInk transfer
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)1.10
Outside diameter (mm)27.90
Package formReel
Product height in0.750
Product height mm19.000
Product width in0.750
Product width mm19
Qualified hose fittings1A/Z Series
Reinforcement materialBrass plated steel wire
SeriesH190 Series
Size-12
Tube materialNitrile (NBR)
Vacuum rating (inHg)23
Vacuum rating (mmHg)584.20
Working pressure max (bar)138
Working pressure max (psi)2000
Working temperature max (C)126
Working temperature max (F)260.0
Working temperature min (C)-40
Working temperature min (F)-40.0
