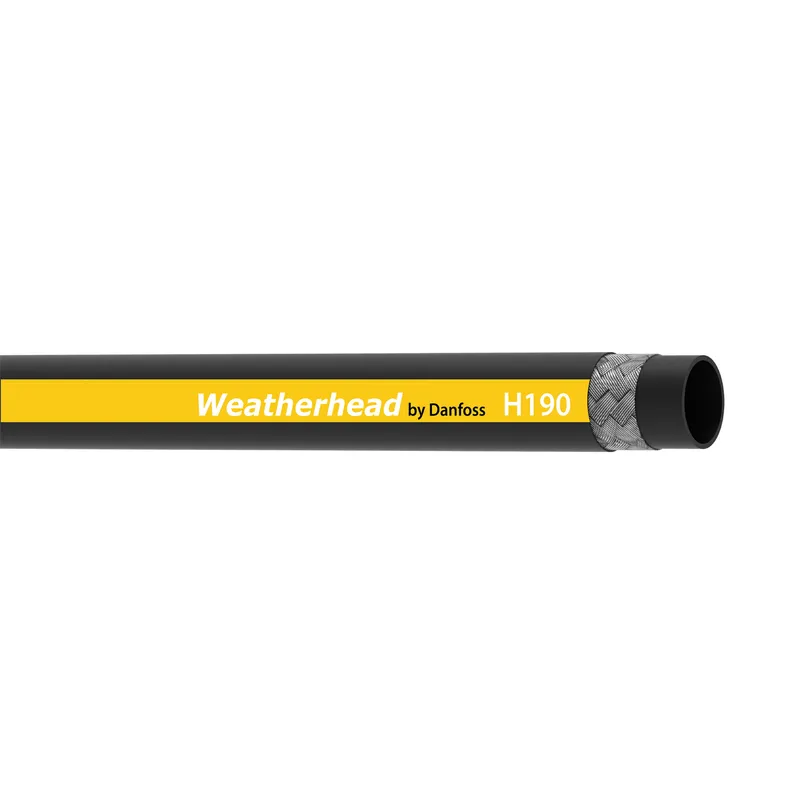

Danfoss H19008-250R

HOSE-WTH, H190, -8, 250FT, RL, R1/1SN

MPN
H19008-250R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H19008-250R?

Danfoss HOSE-WTH, H190, -8, 250FT, RL, R1/1SN, manufacturer part number H19008-250R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789267009
Abrasion resistancePremium
ApplicationPetroleum
Bend radius min (inch)3.540
Bend radius min (mm)90.000
BrandWeatherhead by Danfoss
Burst pressure (bar)800
Burst pressure (psi)11600
CertificationsABS
ColorBlack
CompliancesEN853 1SN
Construction1 Wire Braid
Cover materialNitrile (NBR)
Impulse cycle (cycles)150000
Inside diameter (inch)0.50
Inside diameter (mm)12.70
Lay line styleInk transfer
Length (in)3000.00000
Length (mm)76200.00000
Outside diameter (inch)0.80
Outside diameter (mm)20.40
Package formReel
Product height in0.500
Product height mm12.700
Product width in0.500
Product width mm12.7
Qualified hose fittings1A/Z Series
Reinforcement materialBrass plated steel wire
SeriesH190 Series
Size-8
Tube materialNitrile (NBR)
Vacuum rating (inHg)23
Vacuum rating (mmHg)584.20
Working pressure max (bar)200
Working pressure max (psi)2900
Working temperature max (C)126
Working temperature max (F)260.0
Working temperature min (C)-40
Working temperature min (F)-40.0

H19008-250R: frequently asked questions

When can H19008-250R be shipped?

H19008-250R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H19008-250R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H19008-250R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H19008-250R, subject to availability and destination.
