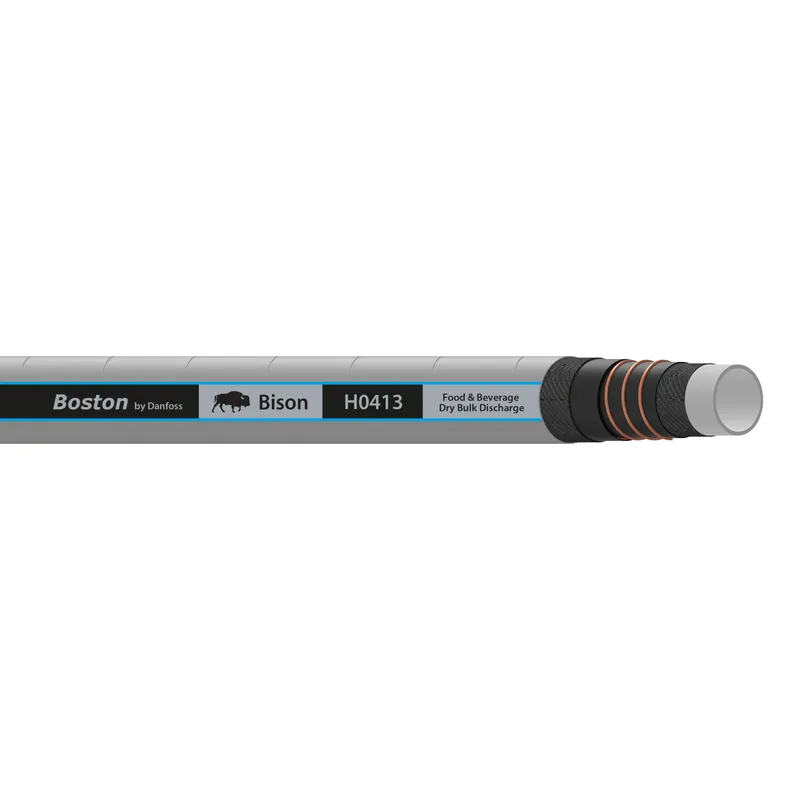

Danfoss H041364-100

HOSE-BOS,H0413,-64,FOOD/BEV,GY,100FT

MPN
H041364-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H041364-100?

Danfoss HOSE-BOS,H0413,-64,FOOD/BEV,GY,100FT, manufacturer part number H041364-100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789271044
Abrasion resistanceStandard
ApplicationFood industry transfer
Bend radius min (inch)11.000
Bend radius min (mm)279.400
BrandBoston by Danfoss
Burst pressure (bar)14
Burst pressure (psi)200
ColorGray
CompliancesASTM D380
ConductivityConductive
Construction2 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)4.00
Inside diameter (mm)101.60
Lay line styleInk transfer
Length (in)1200.00000
Length (mm)30480.00000
Outside diameter (inch)4.80
Outside diameter (mm)121.92
Package formReel
Product height in4.000
Product height mm101.600
Product width in4.000
Product width mm101.600 mm
Reinforcement materialFabric
SeriesH0413 Bison
Size-64
Tube materialNatural rubber (NR)
Working pressure max (bar)4
Working pressure max (psi)50
Working temperature max (C)71
Working temperature max (F)160.0
Working temperature min (C)-29
Working temperature min (F)-20.0

H041364-100: frequently asked questions

When can H041364-100 be shipped?

H041364-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H041364-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H041364-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H041364-100, subject to availability and destination.
