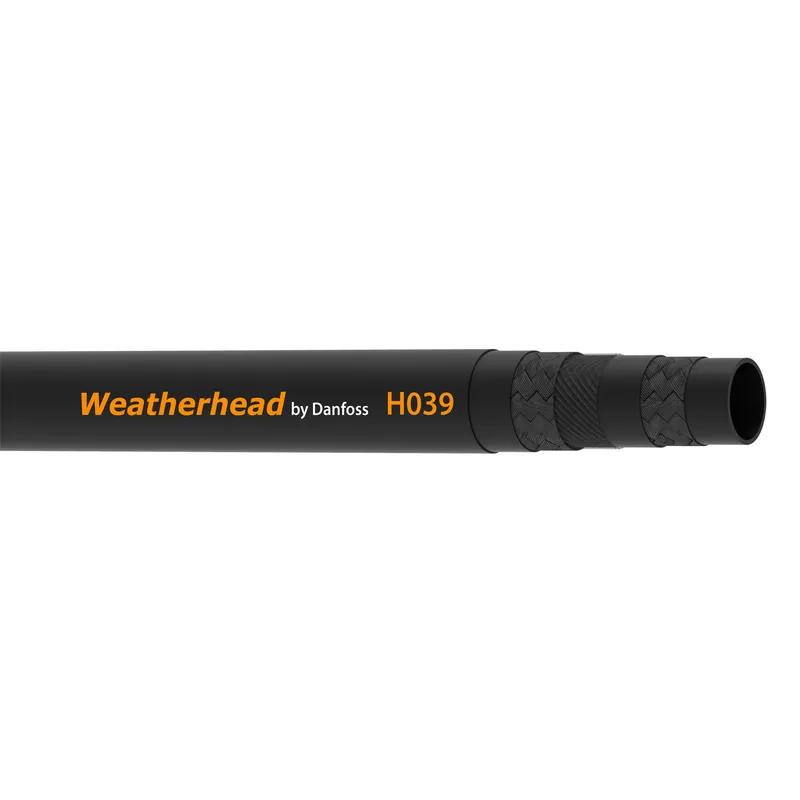

What is the Danfoss H03932-150?

Danfoss HOSE-WTH, H039, -32, 150FT, RL, R4, manufacturer part number H03932-150. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC757522752190
Abrasion resistanceStandard
ApplicationPetroleum oilfield explore
Bend radius min (inch)3.940
Bend radius min (mm)100.000
BrandWeatherhead by Danfoss
Burst pressure (bar)28
Burst pressure (psi)400
CertificationsABS
ColorBlack
CompliancesSAE 100R4
ConductivityConductive
Construction2 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)2.00
Inside diameter (mm)50.80
Lay line styleInk transfer
Length (in)1800.00000
Length (mm)45720.00000
Outside diameter (inch)2.55
Outside diameter (mm)64.77
Package formReel
Product height in2.000
Product height mm50.800
Product width in2.000
Product width mm50.8
Qualified hose fittingsFJ
Reinforcement materialFabric
SeriesH039 Series
Size-32
Tube materialChlorinated Polyethylene (CPE)
Tube wall thickness (inch)0.31
Tube wall thickness (mm)7.75
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)7
Working pressure max (psi)100
Working temperature max (C)135
Working temperature max (F)275.0
Working temperature min (C)-40
Working temperature min (F)-40.0
