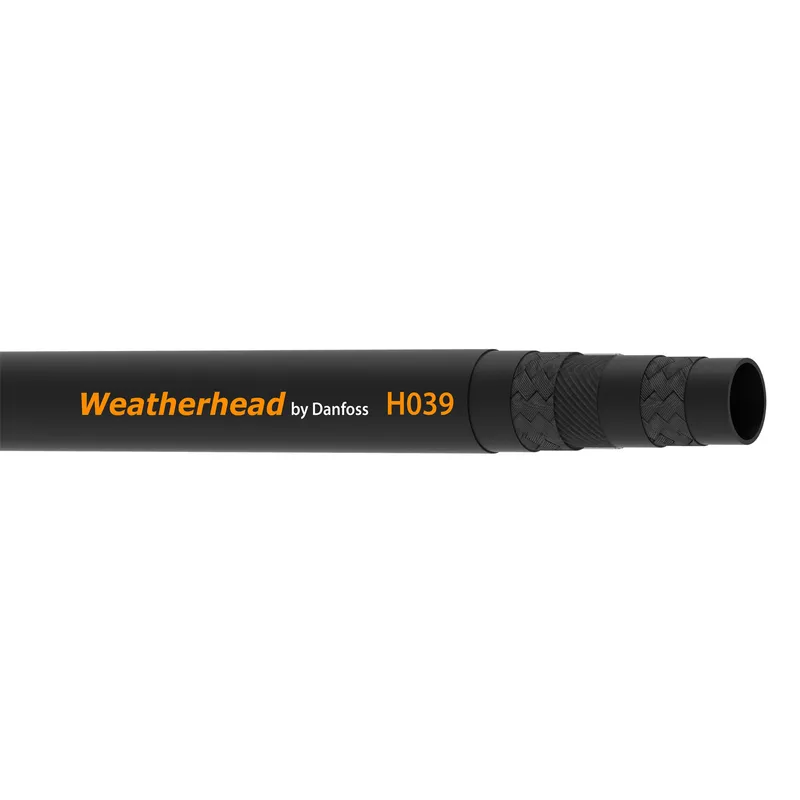

Danfoss H03912

HOSE-WTH, H039, -12, R4

MPN
H03912
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H03912?

Danfoss HOSE-WTH, H039, -12, R4, manufacturer part number H03912. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC725975010013
Abrasion resistanceStandard
ApplicationPetroleum oilfield explore
Bend radius min (inch)1.570
Bend radius min (mm)40.000
BrandWeatherhead by Danfoss
Burst pressure (bar)84
Burst pressure (psi)1220
CertificationsUSCG
ColorBlack
CompliancesSAE 100R4
ConductivityConductive
Construction2 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)0.75
Inside diameter (mm)19.00
Lay line styleInk transfer
Outside diameter (inch)1.18
Outside diameter (mm)29.97
Package formBulk
Product height in0.750
Product height mm19.000
Product width in0.750
Product width mm19
Qualified hose fittingsFJ
Reinforcement materialFabric
SeriesH039 Series
Size-12
Tube materialChlorinated Polyethylene (CPE)
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)21
Working pressure max (psi)305
Working temperature max (C)135
Working temperature max (F)275.0
Working temperature min (C)-40
Working temperature min (F)-40.0
