Danfoss H038448-100

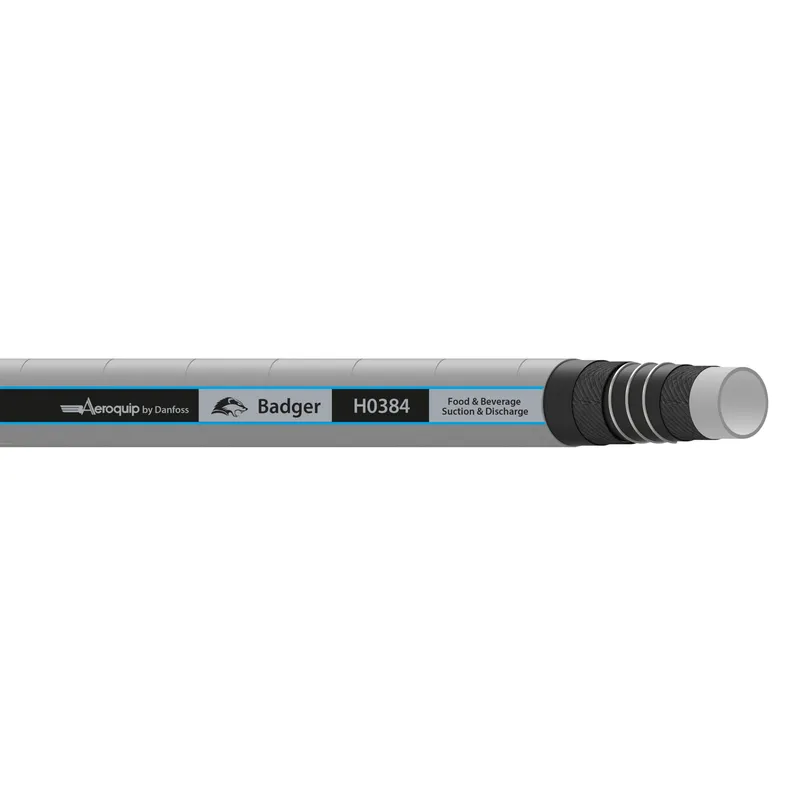

HOSE-BOS,H0384,-48,FOOD/BEV,GY,100FT

MPN
H038448-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H038448-100?

Danfoss HOSE-BOS,H0384,-48,FOOD/BEV,GY,100FT, manufacturer part number H038448-100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789265630
Abrasion resistanceStandard
ApplicationFood industry transfer
Bend radius min (inch)9.020
Bend radius min (mm)229.000
BrandBoston by Danfoss
Burst pressure (bar)42
Burst pressure (psi)610
CertificationsFDA Approved
ColorGray
CompliancesASTM D380
ConductivityConductive
Construction2 Ply braid
Cover materialNitrile (NBR)
Inside diameter (inch)3.00
Inside diameter (mm)76.20
Lay line styleInk transfer
Length (in)1200.00000
Length (mm)30480.00000
Outside diameter (inch)3.63
Outside diameter (mm)92.20
Package formReel
Product height in3.000
Product height mm76.200
Product width in3.000
Product width mm76.200 mm
Qualified hose fittingsCam and groove
Reinforcement materialFabric
SeriesH0384 Badger
Size-48
Tube materialNitrile (NBR)
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)11
Working pressure max (psi)150
Working temperature max (C)82
Working temperature max (F)180.0
Working temperature min (C)-40
Working temperature min (F)-40.0
