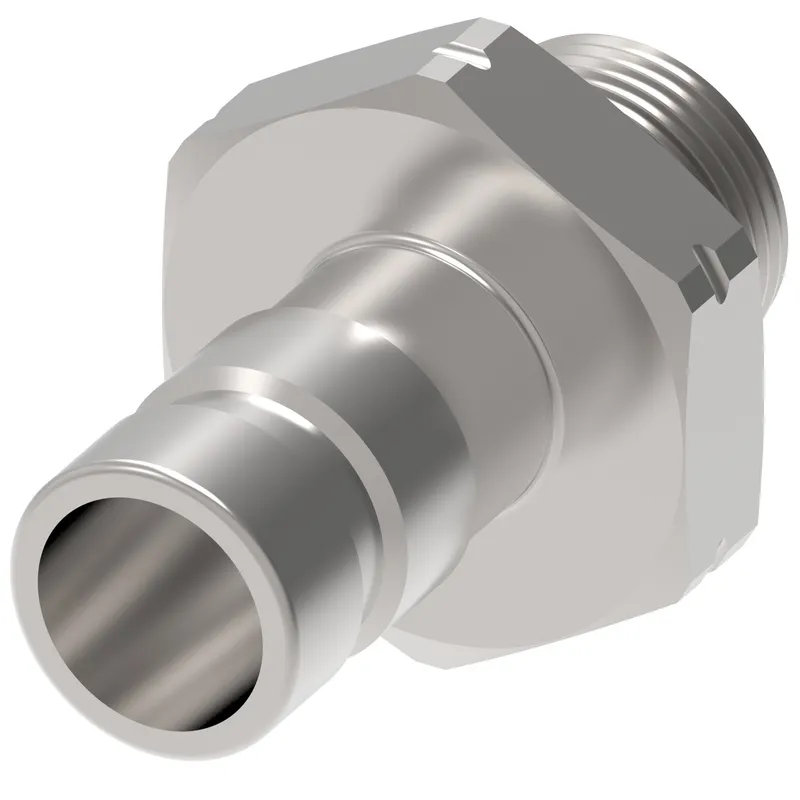

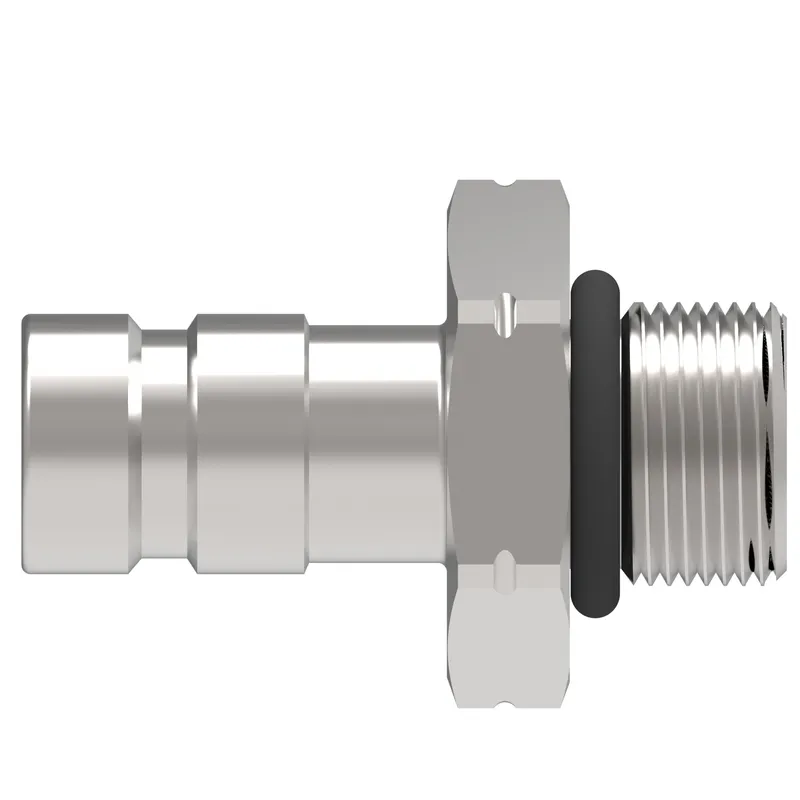

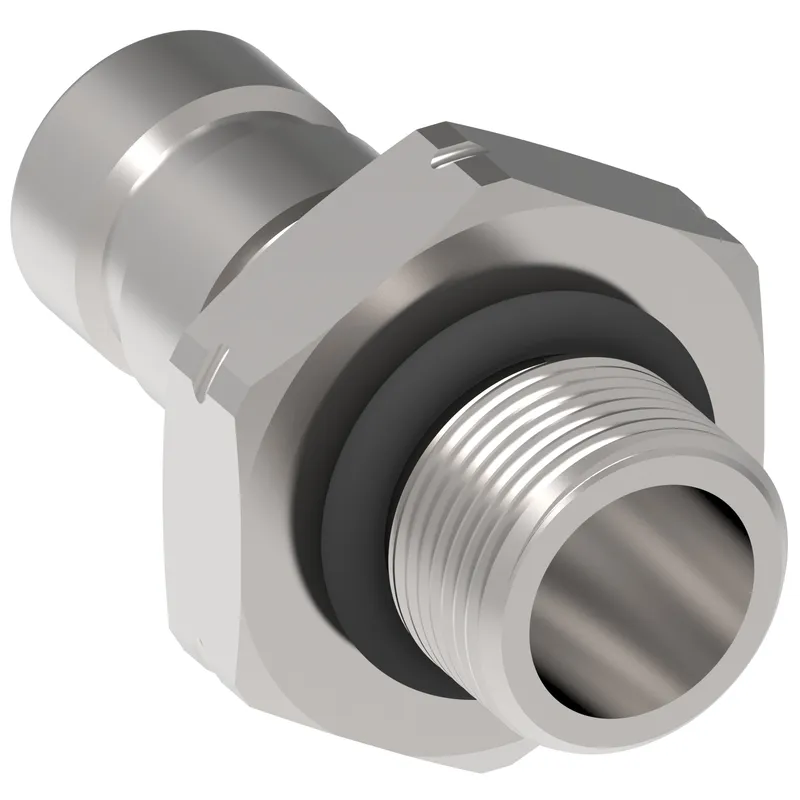

Cplng, FD90 SERIES MALE, STEEL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FD90-1061-04-04 be shipped?
FD90-1061-04-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FD90-1061-04-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FD90-1061-04-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD90-1061-04-04, subject to availability and destination.
Danfoss Cplng, FD90 SERIES MALE, STEEL, manufacturer part number FD90-1061-04-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146203687 |
| Air inclusion max cc | 0.02 |
| Air inclusion max in3 | 0.00 |
| Angle shape | Straight |
| Body size | 1/4 |
| Burst pressure min bar | 1931 |
| Burst pressure min psi | 28000 |
| Connection style | Manual connect |
| End size 2 | 9/16" |
| End Type 1 | Male push to connect |
| End Type 2 | Female ORFS swivel |
| Finish plating | Zinc |
| Flow rate GPM | 0.60 |
| Flow rate LPM | 2.27 |
| Fluid compatibility | Oil |
| Fluid loss cc | 0.10000 |
| Fluid loss in3 | 0.00600 |
| Hex size 1 IN | 0.690 |
| Hex size 1 MM | 17.526 |
| Item type | Male half |
| Latch type | Push/pull |
| Product material | Carbon steel |
| Safety locking mechanism | Sleeve lock |
| Seal material | Nitrile (NBR) |
| Valve type | 2 way |
| Working pressure max psi | 7000 |
| Working pressure max BAR | 483.00 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts
Available on requestCplng, FD90 SERIESMALE, STEEL

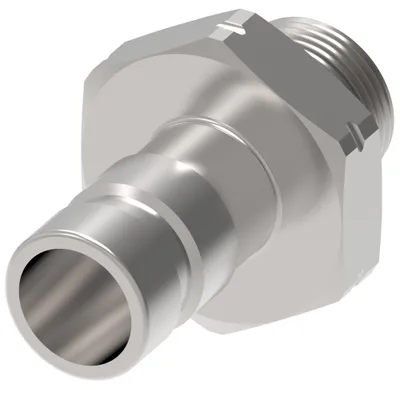

Available on requestCOUPLING,FD90,M,1/4,CS,MM14,NBR
