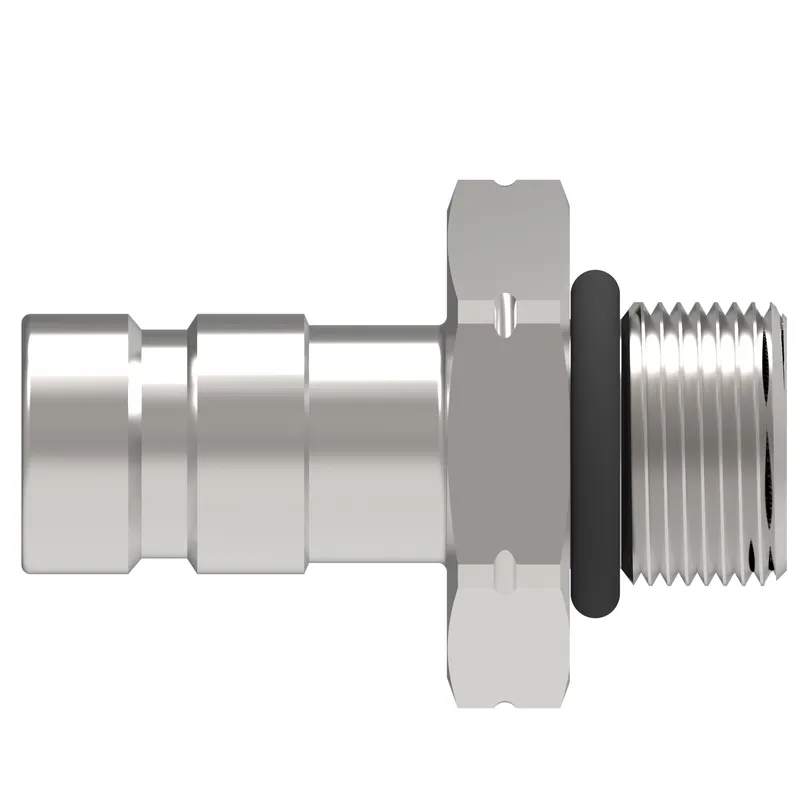

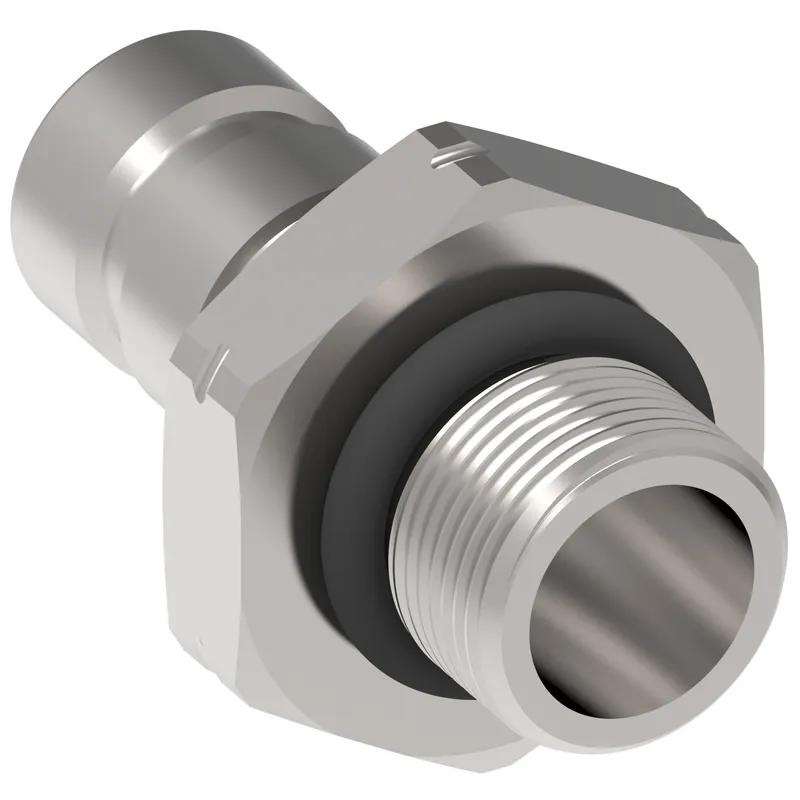

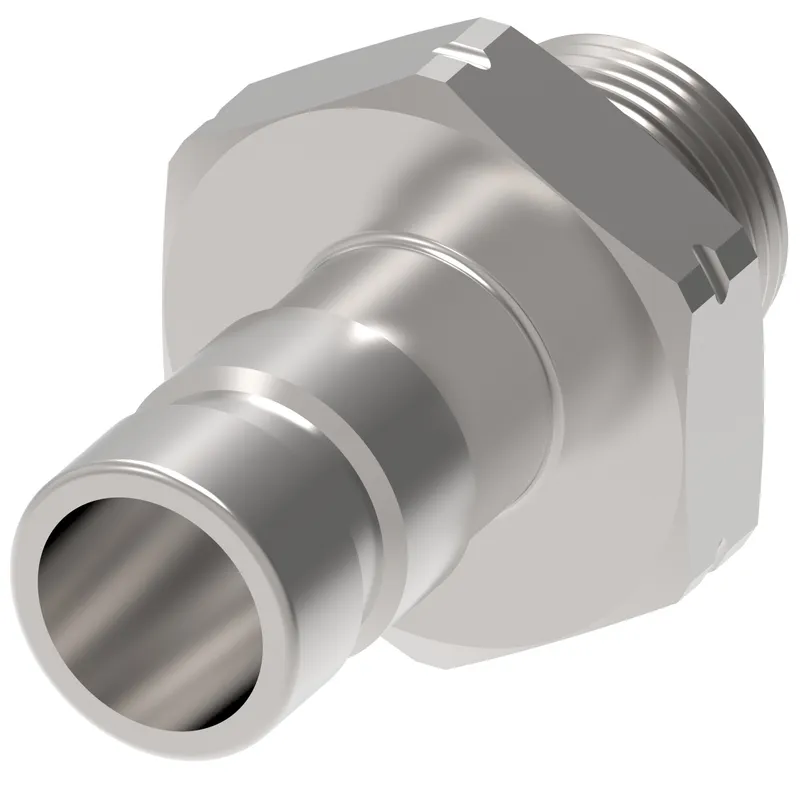

COUPLING,FD90,M,1/4,CS,MM14,NBR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FD90-1046-06-04 be shipped?
FD90-1046-06-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FD90-1046-06-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FD90-1046-06-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD90-1046-06-04, subject to availability and destination.
Danfoss COUPLING,FD90,M,1/4,CS,MM14,NBR, manufacturer part number FD90-1046-06-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Air inclusion max cc | 0.02 |
| Angle shape | Straight |
| Application | Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hydraulics, Oil and gas, Transportation |
| Body size | 1/4 |
| Burst pressure min psi | 28000 |
| Certifications | SAE J1502 Interchange |
| Connection style | Automatic connect |
| End size 1 | M14 |
| End Type 1 | Male ORB ISO 6149-2 |
| Finish plating | Zinc trivalent |
| Flow rate GPM | 0.60 |
| Fluid compatibility | Hydraulic fluid |
| Fluid loss cc | 0.10000 |
| Hex size 1 IN | 0.750 |
| Item type | Male half |
| Latch type | Push/pull |
| Product material | Carbon steel |
| Safety locking mechanism | Sleeve lock |
| Seal material | Nitrile (NBR) |
| Thread size 1 | M14X1.5 |
| Valve type | 2 way |
| Working temperature max F | 250 |
| Working temperature min F | -40 |
