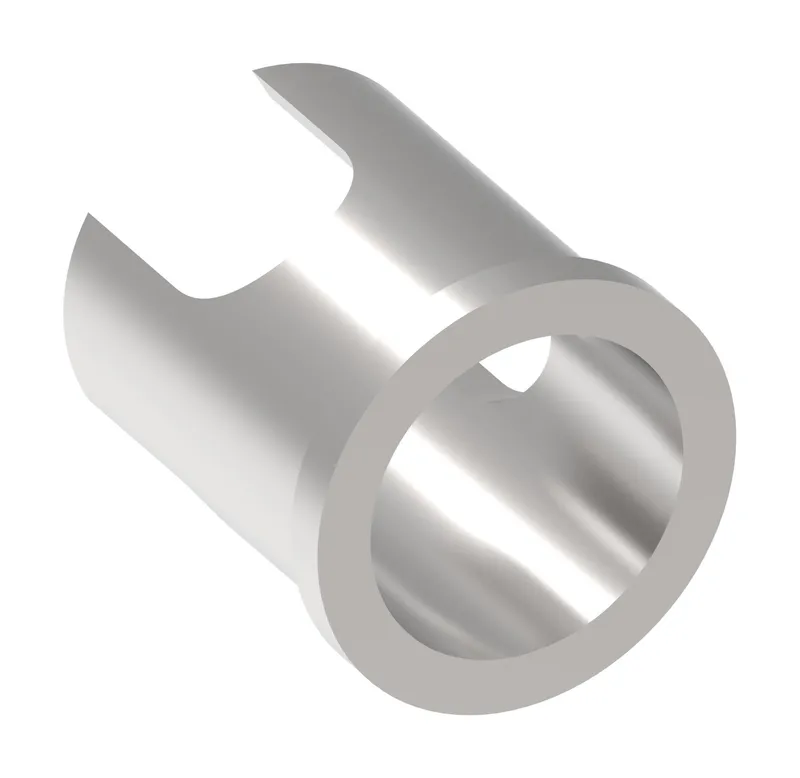

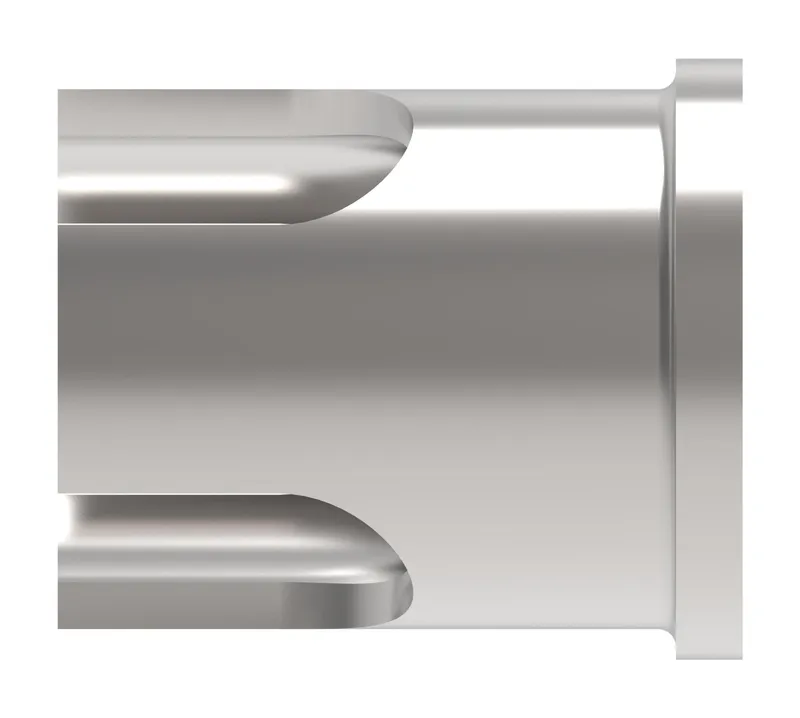

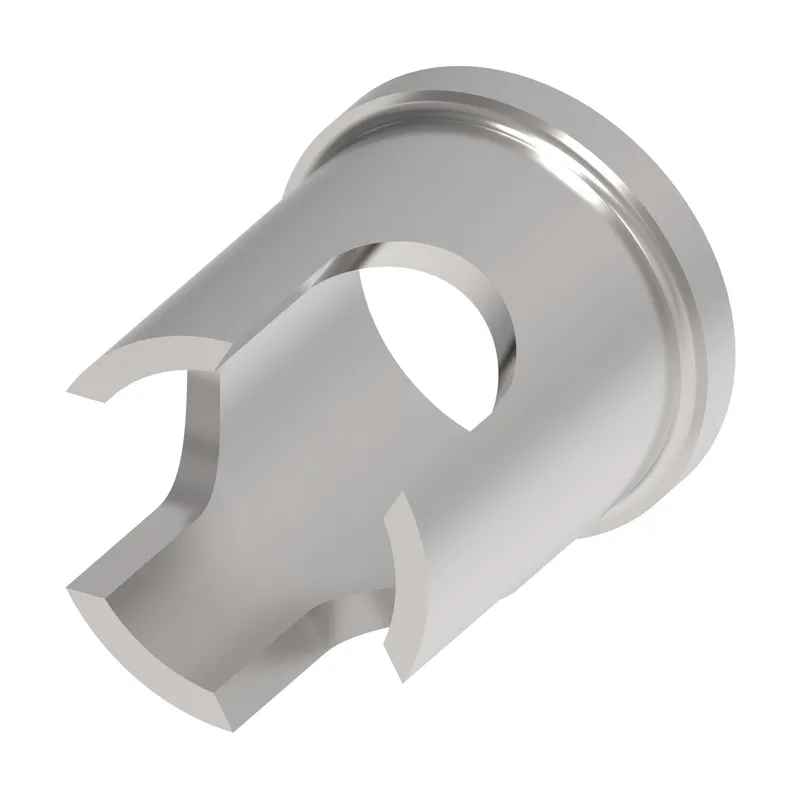

Danfoss FD90-1014-04

Spacer

MPN: FD90-1014-04
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FD90-1014-04?

Danfoss spacer, manufacturer part number FD90-1014-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	0.02
Air inclusion max in3	0.00
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	1931
Burst pressure min psi	28000
Connection style	Manual connect
Finish plating	Zinc
Flow rate GPM	0.60
Flow rate LPM	2.27
Fluid compatibility	Oil
Fluid loss cc	0.10000
Fluid loss in3	0.00600
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	7000
Working pressure max BAR	483.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
