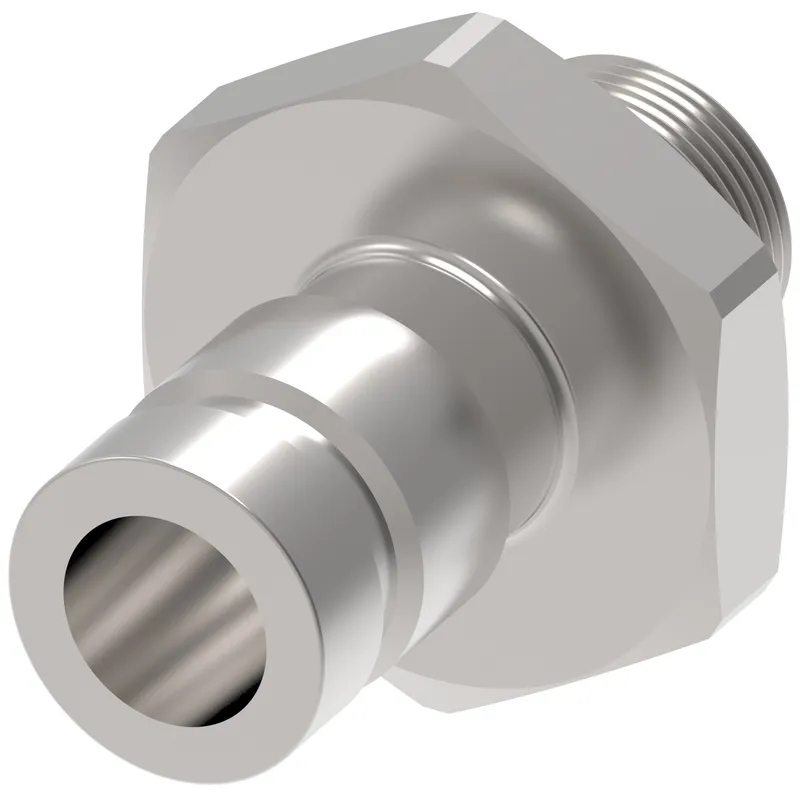

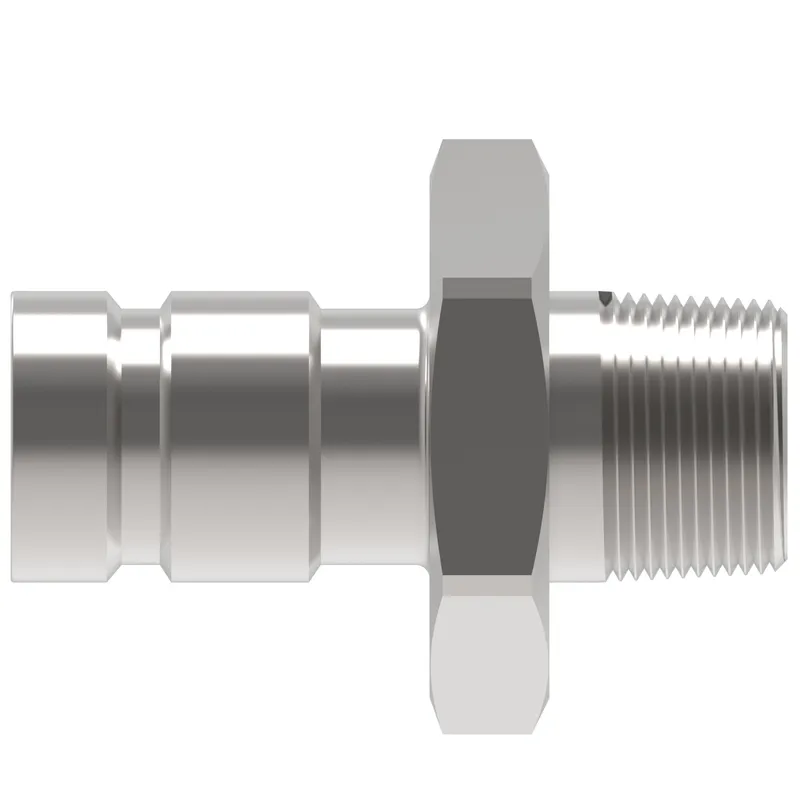

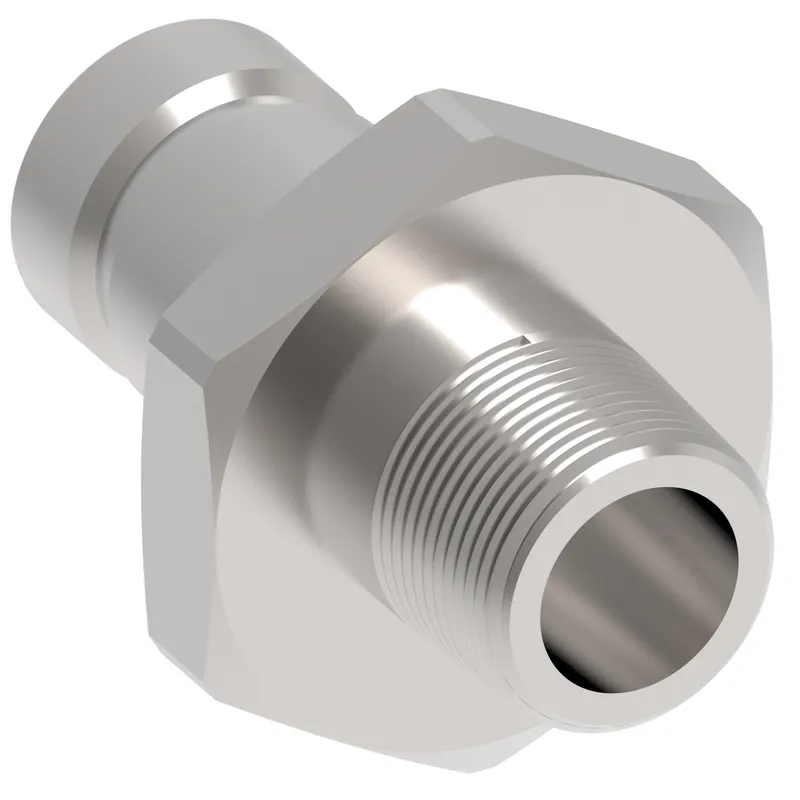

Danfoss FD90-1012-02-04

COUPLING,FD90,M,1/4,CS,-2MNPT,NBR

MPN: FD90-1012-02-04
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FD90-1012-02-04?

Danfoss COUPLING,FD90,M,1/4,CS,-2MNPT,NBR, manufacturer part number FD90-1012-02-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789301031
Air inclusion max cc	0.02
Angle shape	Straight
Application	Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hydraulics, Oil and gas, Transportation
Body size	1/4
Burst pressure min psi	28000
Certifications	SAE J1502 Interchange
Connection style	Automatic connect
End size 1	-2
End Type 1	Male pipe (NPT)
Finish plating	Zinc trivalent
Flow rate GPM	0.60
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.10000
Hex size 1 IN	0.620
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Thread size 1	1/8-27 NPT
Valve type	2 way
Working temperature max F	250
Working temperature min F	-40
