Danfoss FC611-24

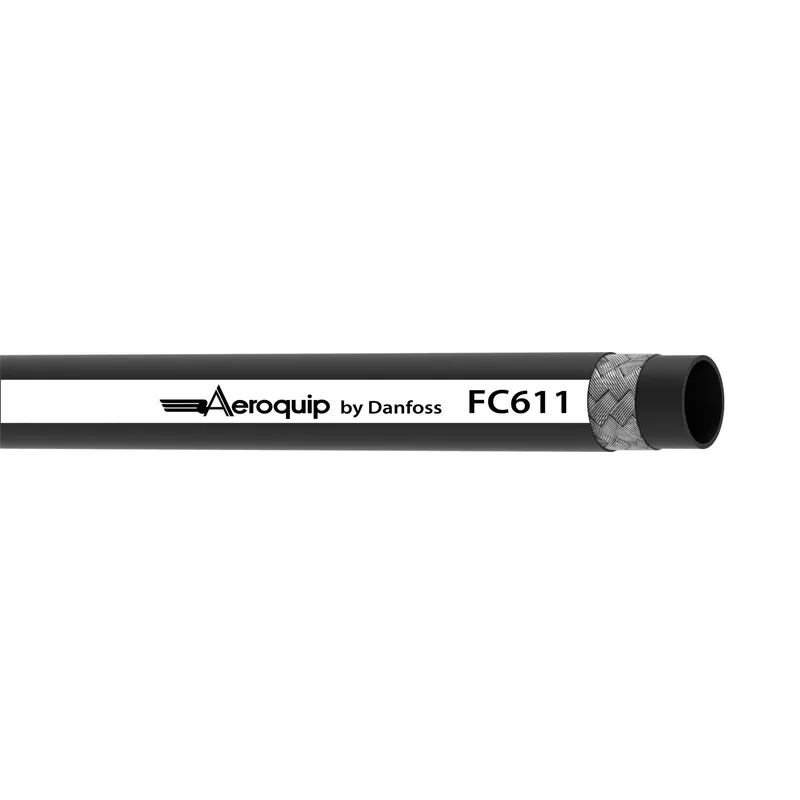

HOSE-AER, FC611, -24, R1/1SC

MPN: FC611-24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC611-24?

Danfoss HOSE-AER, FC611, -24, R1/1SC, manufacturer part number FC611-24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146145338
Abrasion resistance	Standard
Application	General industrial use
Bend radius min (inch)	20.000
Bend radius min (mm)	508.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	140
Burst pressure (psi)	2000
Color	Black
Conductivity	Conductive
Construction	1 Wire Braid
Cover material	EPDM
Impulse cycle (cycles)	150000
Inside diameter (inch)	1.50
Inside diameter (mm)	38.10
Lay line style	Ink transfer
Outside diameter (inch)	1.99
Outside diameter (mm)	50.55
Package form	Bulk
Product height in	1.500
Product height mm	38.100
Product width in	1.500
Product width mm	38.1
Qualified hose fittings	1A/Z Series
Reinforcement material	Brass plated steel wire
Series	FC611 Series
Size	-24
Tube material	EPDM
Working pressure max (bar)	35
Working pressure max (psi)	500
Working temperature max (C)	79
Working temperature max (F)	175.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0

FC611-24: frequently asked questions

When can FC611-24 be shipped?

FC611-24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FC611-24 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FC611-24 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC611-24, subject to availability and destination.
