Danfoss FC611-12-06000

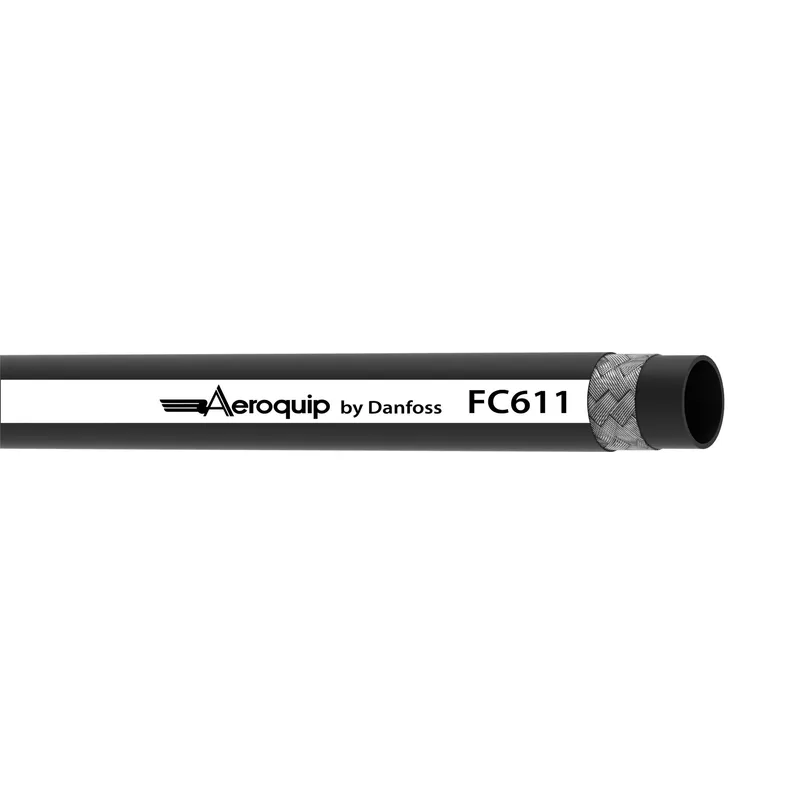

HOSE-AER, FC611, -12, 600IN, CL, R1/1SN

MPN: FC611-12-06000
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC611-12-06000?

Danfoss HOSE-AER, FC611, -12, 600IN, CL, R1/1SN, manufacturer part number FC611-12-06000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146083623
Abrasion resistance	Standard
Application	General industrial use
Bend radius min (inch)	9.500
Bend radius min (mm)	241.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	344
Burst pressure (psi)	5000
Color	Black
Conductivity	Conductive
Construction	1 Wire Braid
Cover material	EPDM
Impulse cycle (cycles)	150000
Inside diameter (inch)	0.75
Inside diameter (mm)	19.00
Lay line style	Ink transfer
Length (in)	600.00000
Length (mm)	15240.00000
Outside diameter (inch)	1.09
Outside diameter (mm)	27.69
Package form	Cut length
Product height in	0.750
Product height mm	19.000
Product width in	0.750
Product width mm	19
Qualified hose fittings	1A/Z Series
Reinforcement material	Brass plated steel wire
Series	FC611 Series
Size	-12
Tube material	EPDM
Working pressure max (bar)	86
Working pressure max (psi)	1250
Working temperature max (C)	79
Working temperature max (F)	175.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
