Danfoss FC5814-1212S

Ftng (perm)SAE 37 thermo 5-34

MPN: FC5814-1212S
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

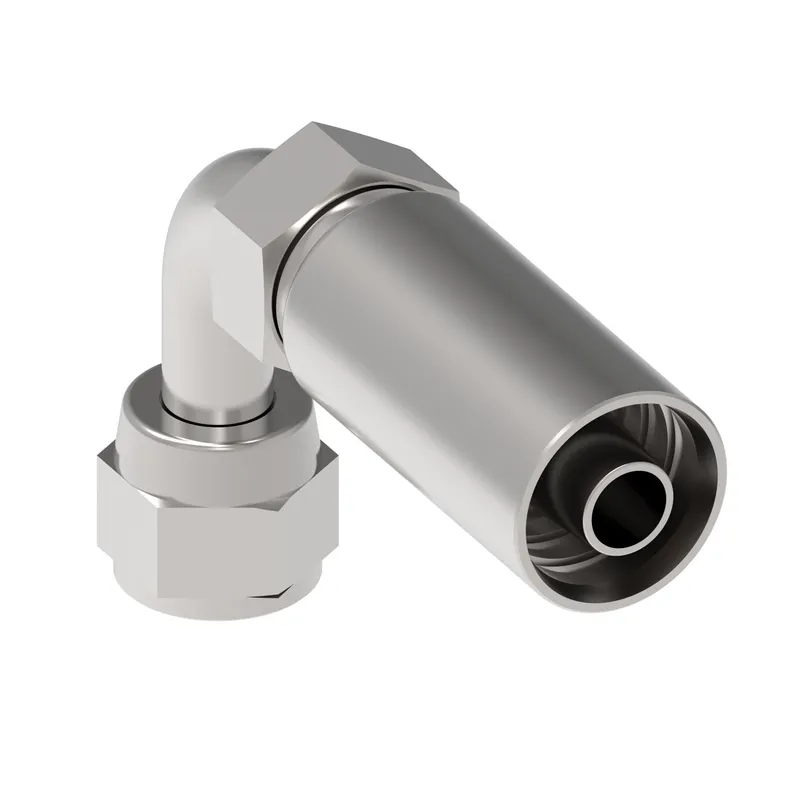

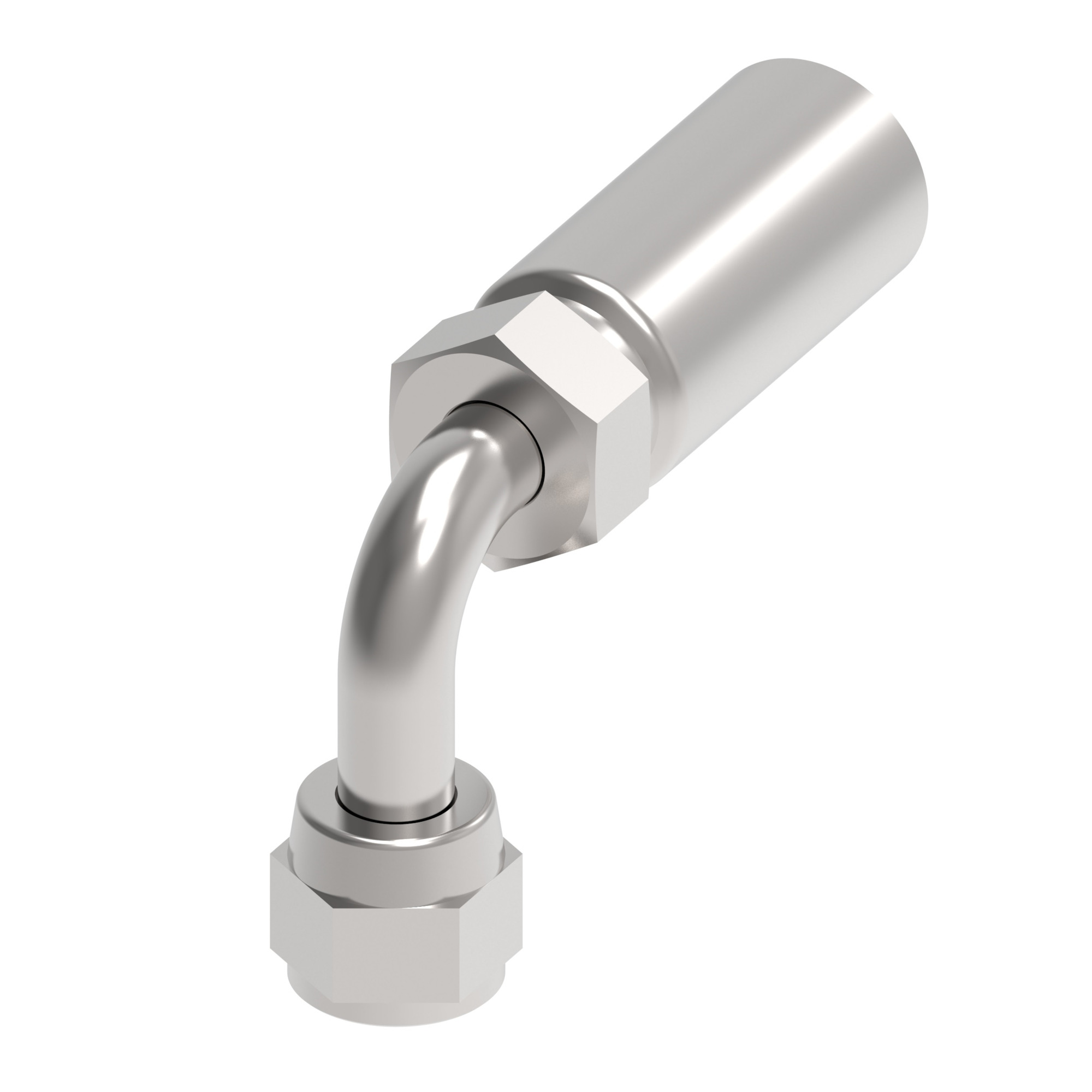

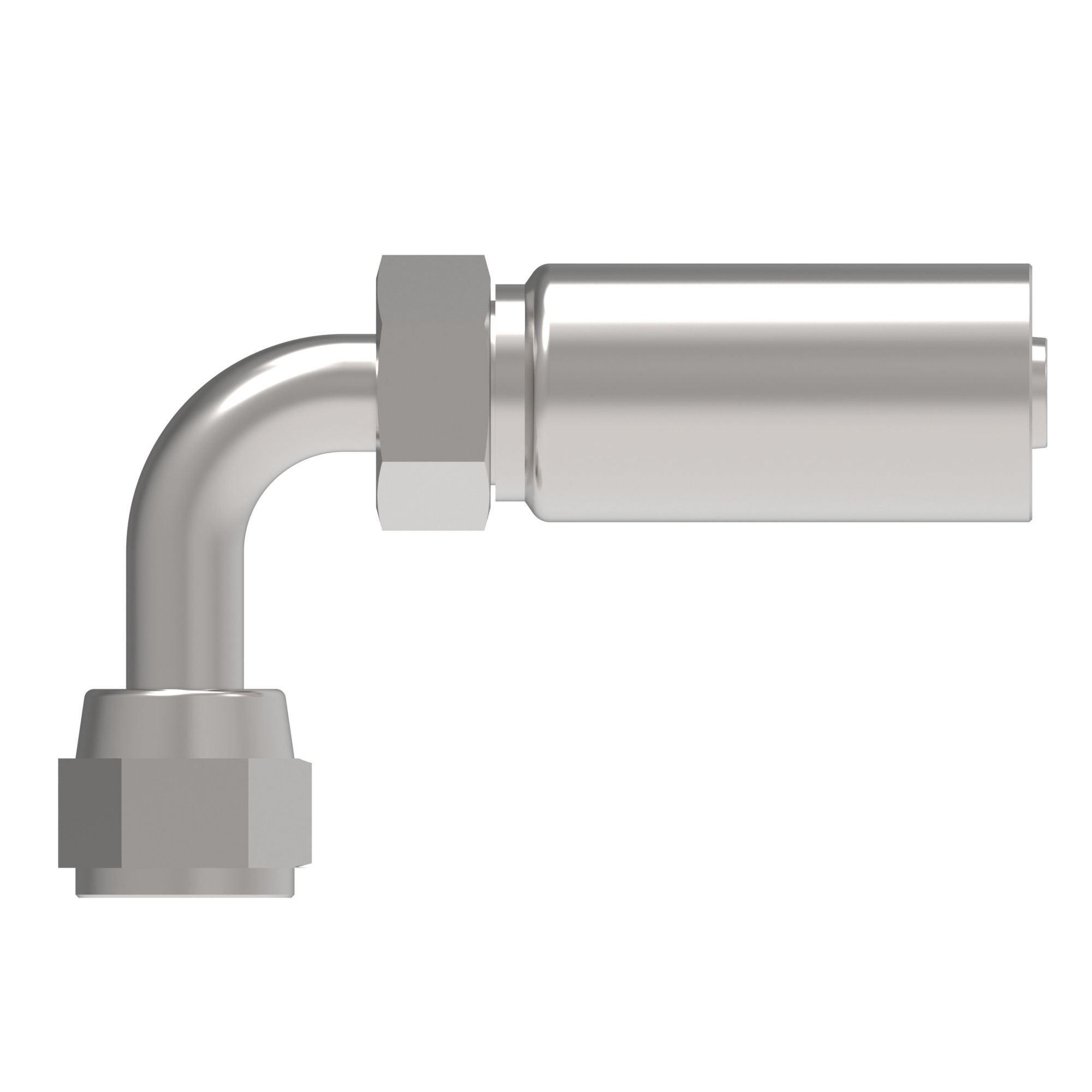

What is the Danfoss FC5814-1212S?

Danfoss Ftng (perm)SAE 37 thermo 5-34, manufacturer part number FC5814-1212S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Compatible hoses	37AL, 3130, 3740 (Size dependent)
Construction Style	Crimp
Drop dimension IN	2.000
Drop dimension MM	63.00
End size 1	-12
End type 1	Female 37 degree swivel
End type 2	Line/hose/tube
Finish plating	Dura-Kote
Hex size 1 IN	1.250
Hex size 1 MM	31.750
Hex size 2 IN	1.125
Hex size 2 MM	28.575
Hose cut off factor IN	1.862
Hose cut off factor MM	47.295
Hose size	-12
Inside diameter IN	0.580
Inside diameter MM	14.732
Product material	Carbon steel
Thread sealant	No
