Danfoss FC579-06-12000

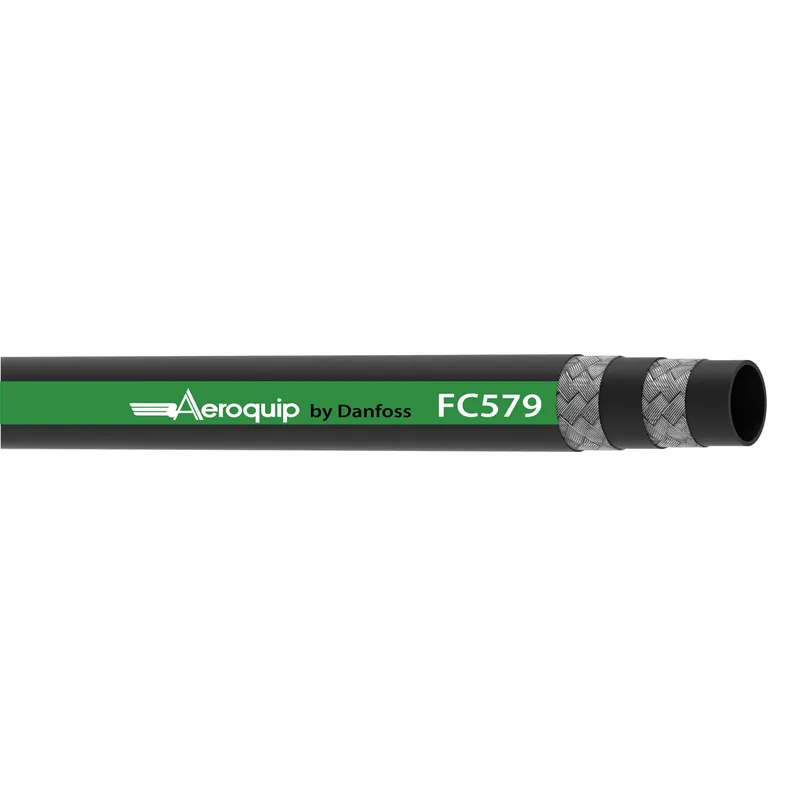

HOSE-AER, FC579, -6, 100FT, CL, IJ100

MPN: FC579-06-12000
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC579-06-12000?

Danfoss HOSE-AER, FC579, -6, 100FT, CL, IJ100, manufacturer part number FC579-06-12000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146067982
Abrasion resistance	Standard
Application	Water based fluids
Bend radius min (inch)	5.000
Bend radius min (mm)	127.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	1380
Burst pressure (psi)	20000
Certifications	MSHA Approved
Color	Black
Compliances	SAE J517
Conductivity	Conductive
Construction	2 Wire Braid
Cover material	Nitrile (NBR)
Impulse cycle (cycles)	30000
Inside diameter (inch)	0.38
Inside diameter (mm)	9.50
Lay line style	Ink transfer
Length (in)	1200.00000
Length (mm)	30480.00000
Outside diameter (inch)	0.76
Outside diameter (mm)	19.30
Package form	Cut length
Product height in	0.380
Product height mm	9.500
Product width in	0.380
Product width mm	9.5
Qualified hose fittings	Global skive
Reinforcement material	Brass plated steel wire
Series	FC579 Series
Size	-6
Tube material	Nitrile (NBR)
Working pressure max (bar)	690
Working pressure max (psi)	10000
Working temperature max (C)	49
Working temperature max (F)	120.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
