Danfoss FC579-06

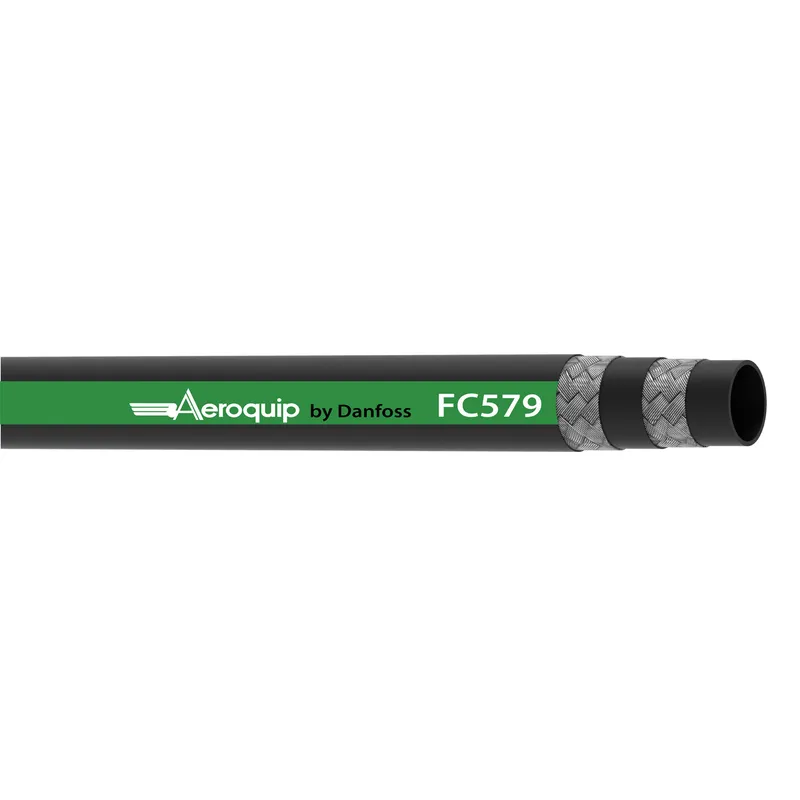

HOSE-AER, FC579, -6, IJ100

MPN: FC579-06
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FC579-06?

Danfoss HOSE-AER, FC579, -6, IJ100, manufacturer part number FC579-06. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146075383
Abrasion resistance	Standard
Application	Water based fluids
Bend radius min (inch)	5.000
Bend radius min (mm)	127.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	1380
Burst pressure (psi)	20000
Color	Black
Compliances	SAE J517
Conductivity	Conductive
Construction	2 Wire Braid
Cover material	Nitrile (NBR)
Impulse cycle (cycles)	30000
Inside diameter (inch)	0.38
Inside diameter (mm)	9.50
Lay line style	Ink transfer
Outside diameter (inch)	0.76
Outside diameter (mm)	19.30
Package form	Bulk
Product height in	0.380
Product height mm	9.500
Product width in	0.380
Product width mm	9.5
Qualified hose fittings	Global skive
Reinforcement material	Brass plated steel wire
Series	FC579 Series
Size	-6
Tube material	Nitrile (NBR)
Working pressure max (bar)	690
Working pressure max (psi)	10000
Working temperature max (C)	49
Working temperature max (F)	120.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0

FC579-06: frequently asked questions

When can FC579-06 be shipped?

FC579-06 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FC579-06 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FC579-06 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC579-06, subject to availability and destination.
