Danfoss FBM4235

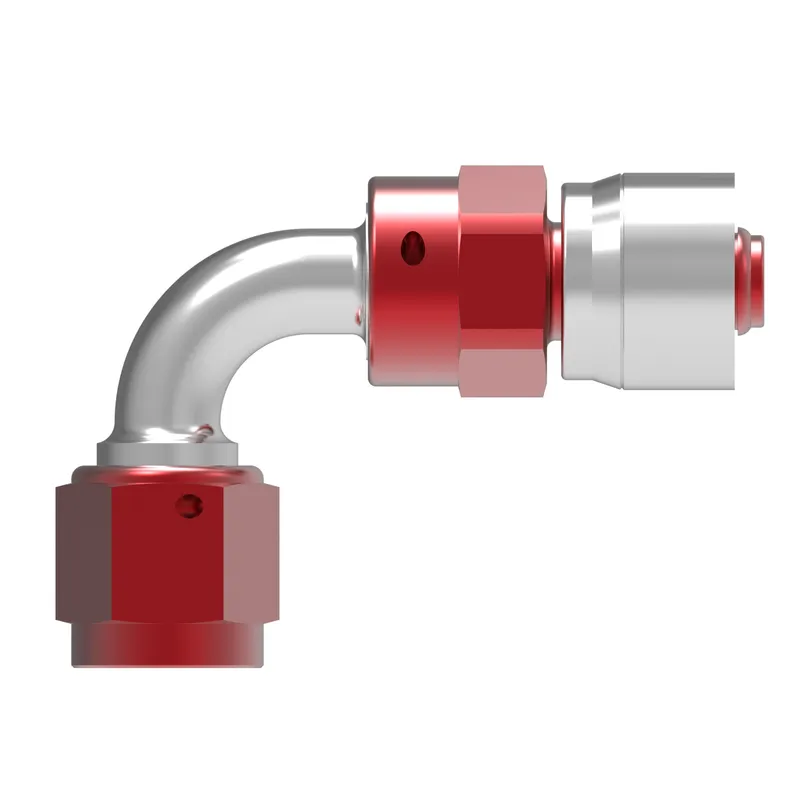

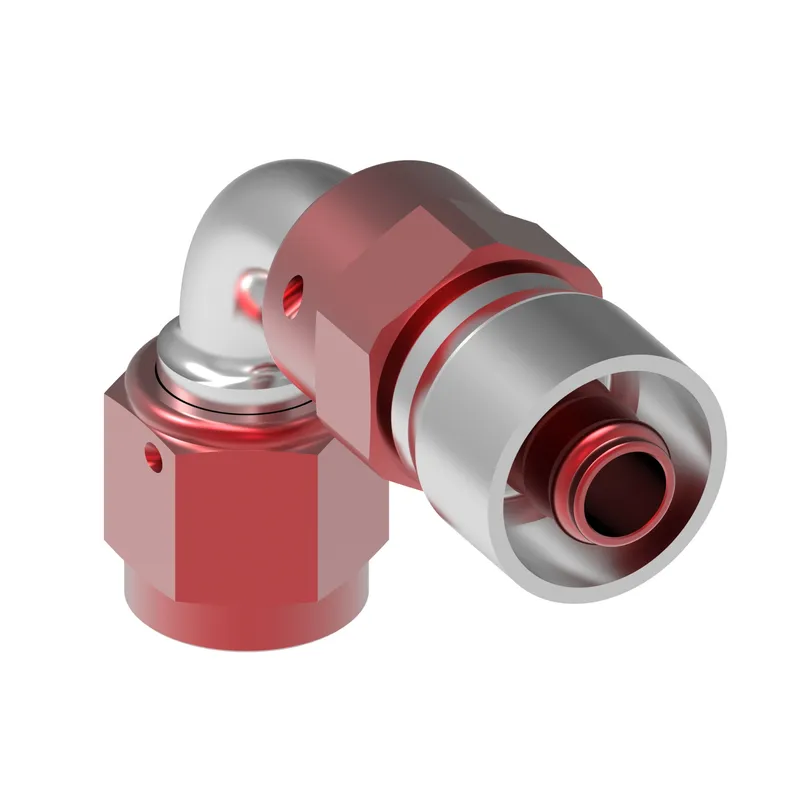

HOSE FTG, SR/12, JIC-F/12, D, 90D

MPN
FBM4235
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM4235?

Danfoss HOSE FTG, SR/12, JIC-F/12, D, 90D, manufacturer part number FBM4235. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146118981
A dimension IN2.880
A dimension MM73.152
Angle shape90 Degree
Construction StyleCrimp
Drop dimension IN2.000
Drop dimension MM39.00
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN1.259
Hex size 1 MM32.000
Hose cut off factor IN2.080
Hose cut off factor MM52.832
Inside diameter IN0.560
Inside diameter MM14.224
Product height in2.550
Product height mm64.770
Product length in3.500
Product length mm88.900
Product materialAluminum
Product width in1.250
Product width mm31.750 mm
Thread sealantNo
Thread size 11 1/16-12 UN

FBM4235: frequently asked questions

When can FBM4235 be shipped?

FBM4235 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBM4235 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBM4235 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBM4235, subject to availability and destination.
