Danfoss FBM4233

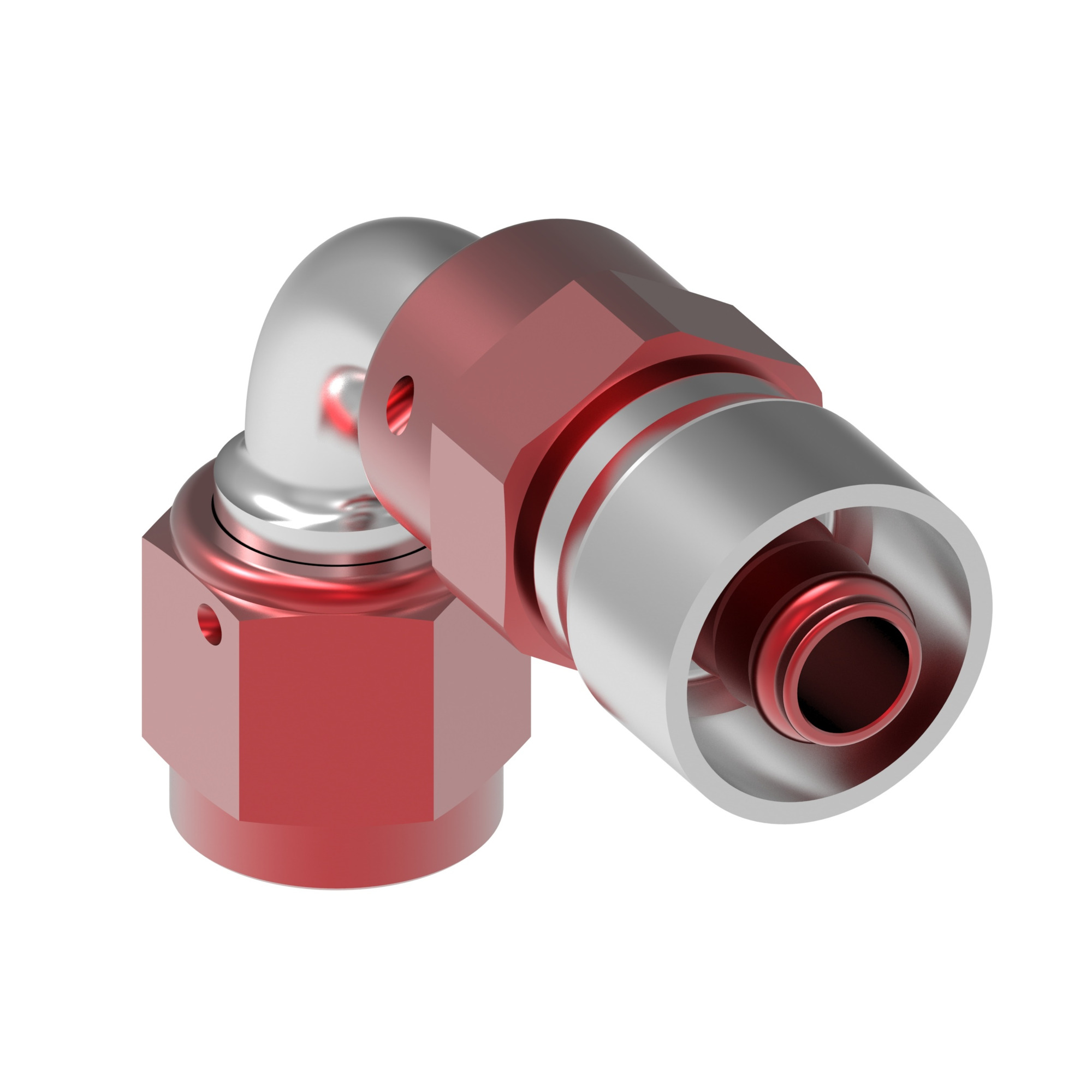

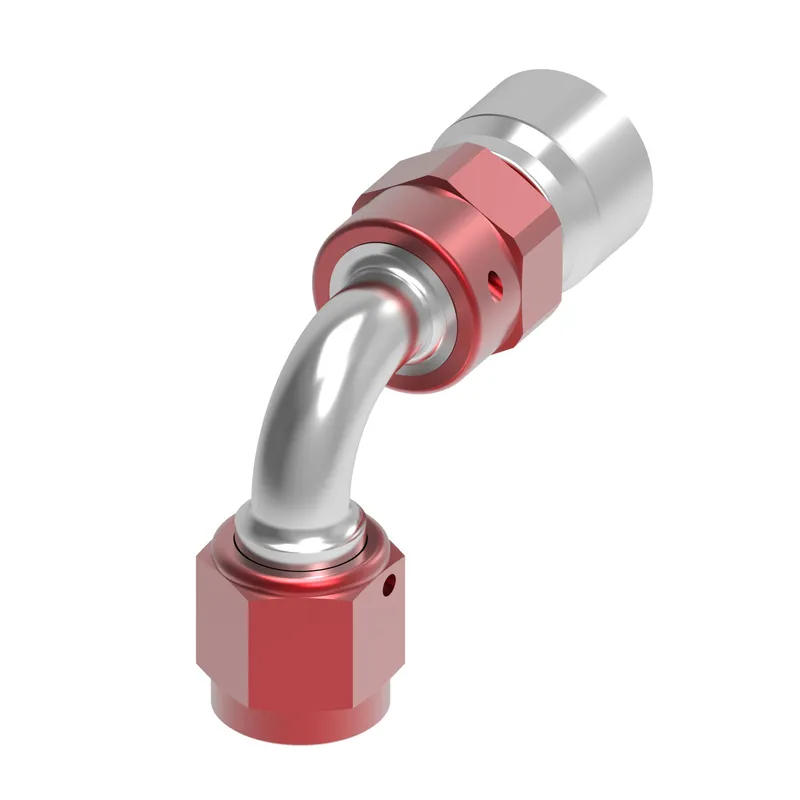

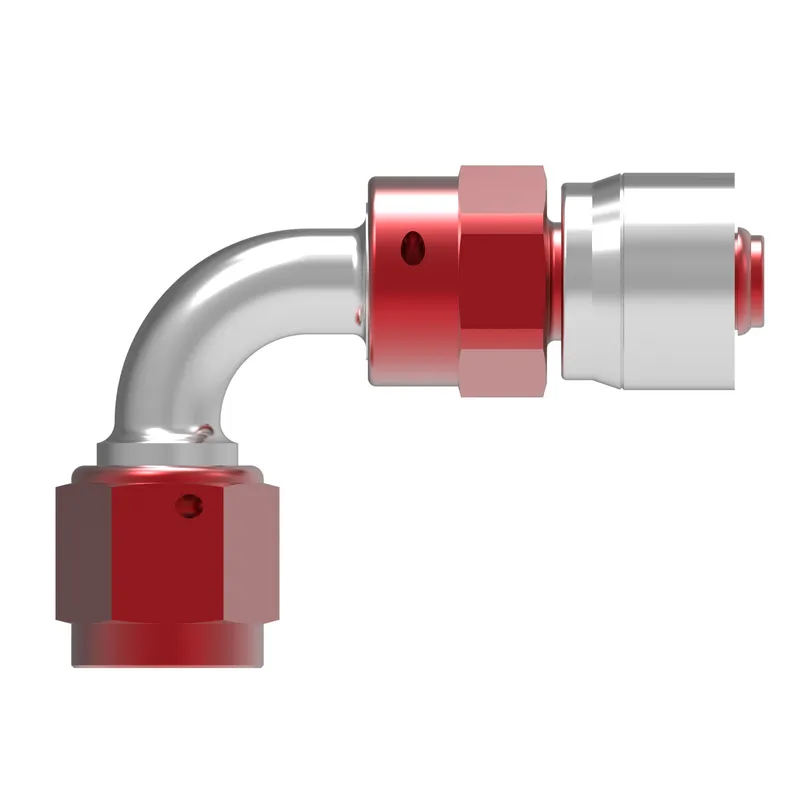

HOSE FTG, SR/08, JIC-F/08, D, 90D

MPN
FBM4233
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM4233?

Danfoss HOSE FTG, SR/08, JIC-F/08, D, 90D, manufacturer part number FBM4233. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146143341
A dimension IN2.240
A dimension MM56.896
Angle shape90 Degree
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM30.00
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.866
Hex size 1 MM22.000
Hose cut off factor IN0.540
Hose cut off factor MM13.716
Inside diameter IN0.360
Inside diameter MM9.144
Product height in2.060
Product height mm52.324
Product length in2.680
Product length mm68.072
Product materialAluminum
Product width in1.000
Product width mm25.400 mm
Thread sealantNo
Thread size 13/4-16 UNF

FBM4233: frequently asked questions

When can FBM4233 be shipped?

FBM4233 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBM4233 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBM4233 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBM4233, subject to availability and destination.
