Danfoss FBM1121

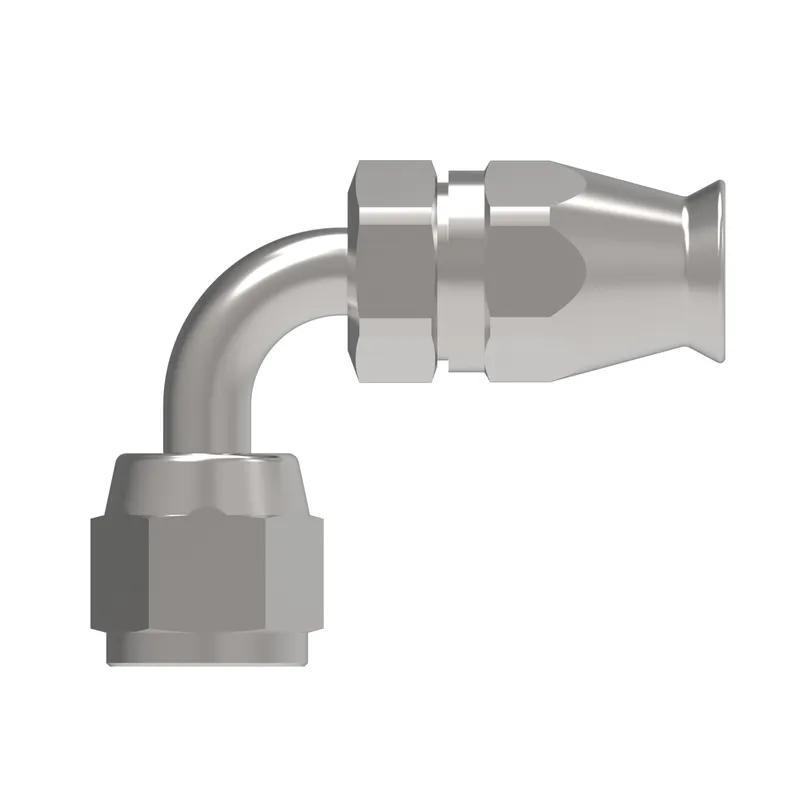

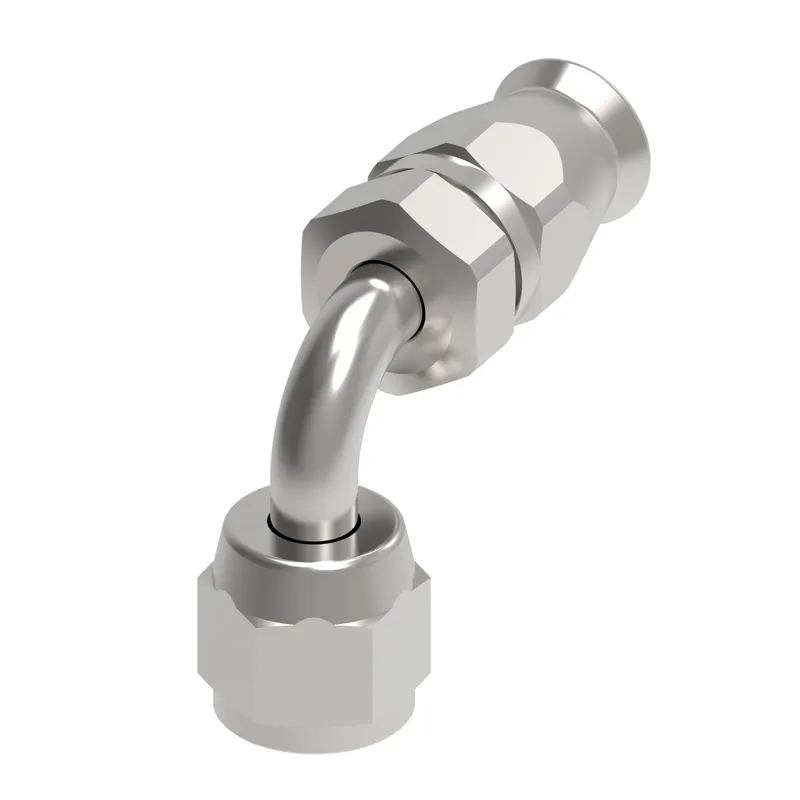

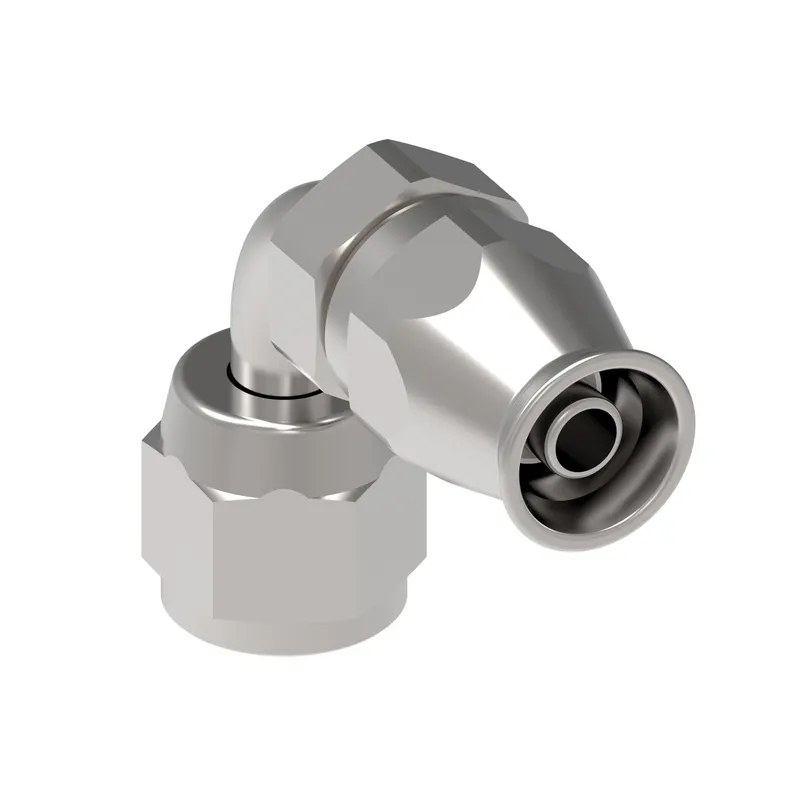

HOSE FTG, SR/04, JIC-F/04, CS, 90D

MPN
FBM1121
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM1121?

Danfoss HOSE FTG, SR/04, JIC-F/04, CS, 90D, manufacturer part number FBM1121. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146088932
A dimension IN1.410
A dimension MM35.800
Angle shape90 Degree
Construction StyleReusable
Drop dimension IN1.000
Drop dimension MM17.00
End type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN0.551
Hex size 1 MM14.000
Hex size 2 IN0.551
Hex size 2 MM14.000
Hose cut off factor IN0.460
Hose cut off factor MM11.700
Inside diameter IN0.160
Inside diameter MM4.100
Product height in1.360
Product height mm34.544
Product length in1.690
Product length mm42.926
Product materialCarbon steel
Product width in0.562
Product width mm14.287 mm
Thread sealantNo
Thread size 17/16-20 UNF

FBM1121: frequently asked questions

When can FBM1121 be shipped?

FBM1121 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBM1121 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBM1121 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBM1121, subject to availability and destination.
