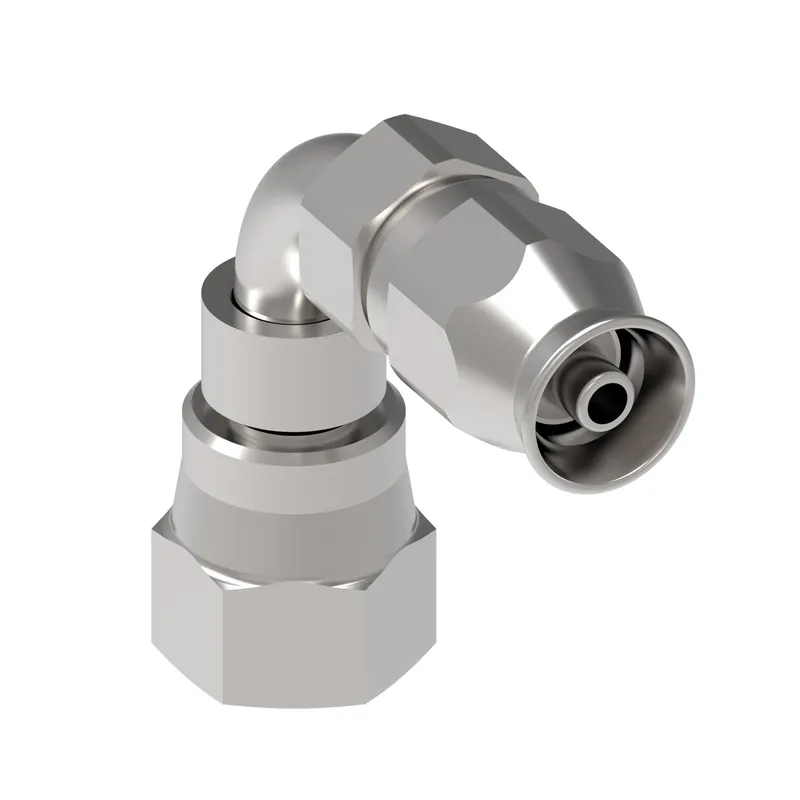

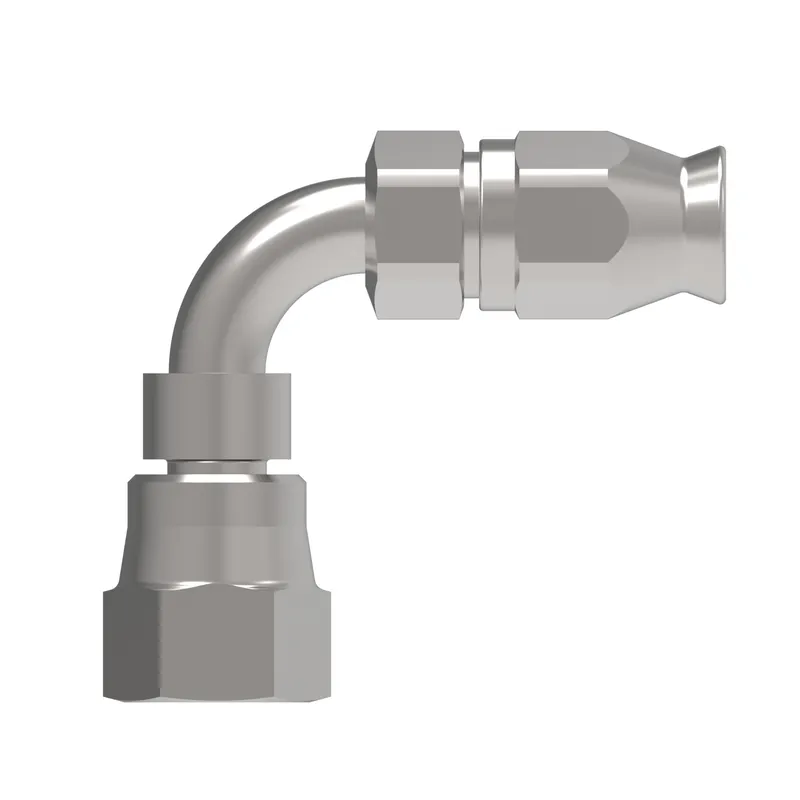

Danfoss FBM1120

HOSE FTG, SR/03, JIC-F/03, CS, 90D

MPN
FBM1120
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM1120?

Danfoss HOSE FTG, SR/03, JIC-F/03, CS, 90D, manufacturer part number FBM1120. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146140579
A dimension IN1.270
A dimension MM32.300
Angle shape90 Degree
Construction StyleReusable
Drop dimension IN1.000
Drop dimension MM22.00
End type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN0.472
Hex size 1 MM12.000
Hex size 2 IN0.500
Hex size 2 MM12.000
Hose cut off factor IN0.342
Hose cut off factor MM8.700
Inside diameter IN0.090
Inside diameter MM2.300
Product height in1.460
Product height mm37.084
Product length in1.520
Product length mm38.608
Product materialCarbon steel
Product width in0.500
Product width mm12.700 mm
Thread sealantNo
Thread size 13/8-24 UNF

FBM1120: frequently asked questions

When can FBM1120 be shipped?

FBM1120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBM1120 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBM1120 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBM1120, subject to availability and destination.
