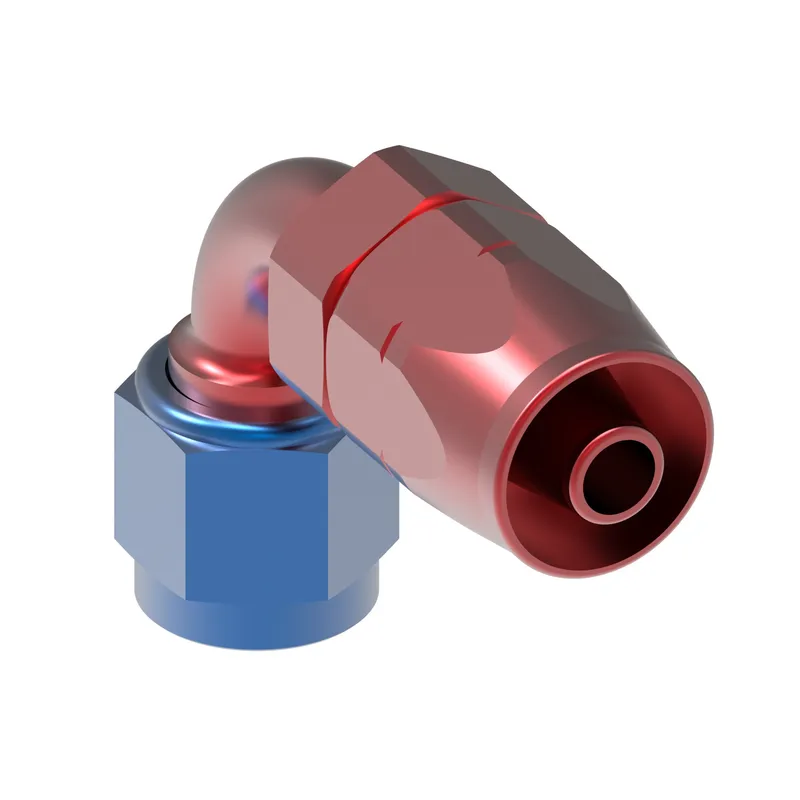

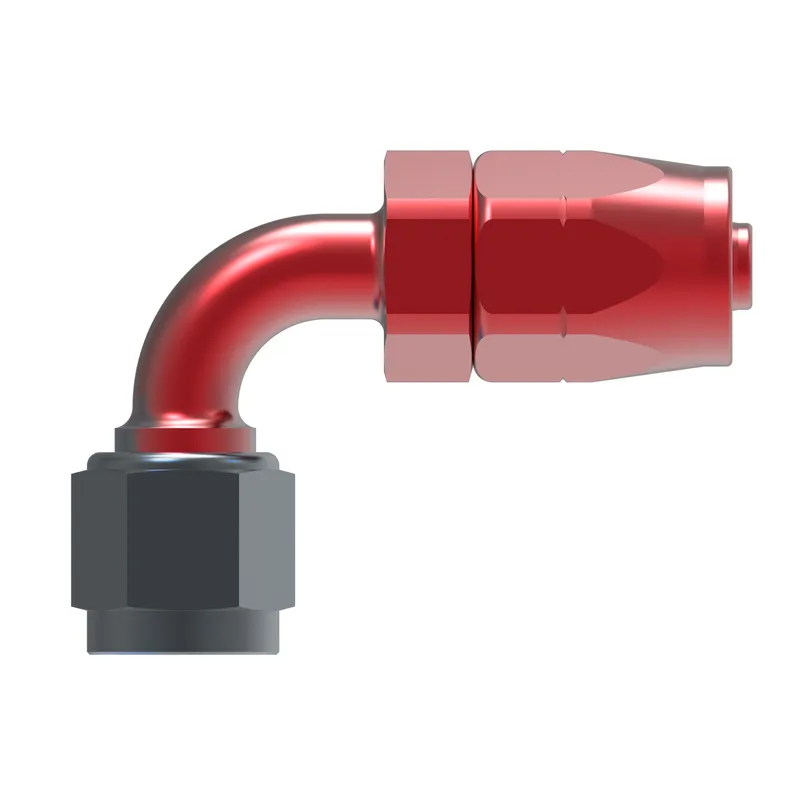

HOSE FTG, SR/12, JIC-F/12, D, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Aeroquip performance products |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FBM1035 be shipped?
FBM1035 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FBM1035 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FBM1035 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBM1035, subject to availability and destination.
Danfoss HOSE FTG, SR/12, JIC-F/12, D, 90D, manufacturer part number FBM1035. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146088529 |
| A dimension IN | 2.930 |
| A dimension MM | 74.500 |
| Angle shape | 90 Degree |
| Construction Style | Reusable |
| Drop dimension IN | 1.530 |
| Drop dimension MM | 38.80 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Anodized |
| Hex size 1 IN | 1.259 |
| Hex size 1 MM | 32.000 |
| Hex size 2 IN | 0.984 |
| Hex size 2 MM | 25.000 |
| Hose cut off factor IN | 1.019 |
| Hose cut off factor MM | 25.900 |
| Inside diameter IN | 0.590 |
| Inside diameter MM | 14.900 |
| Product height in | 2.580 |
| Product height mm | 65.532 |
| Product length in | 3.550 |
| Product length mm | 90.170 |
| Product material | Aluminum |
| Product width in | 1.312 |
| Product width mm | 33.324 mm |
| Thread sealant | No |
| Thread size 1 | 1 1/16-12 UN |
