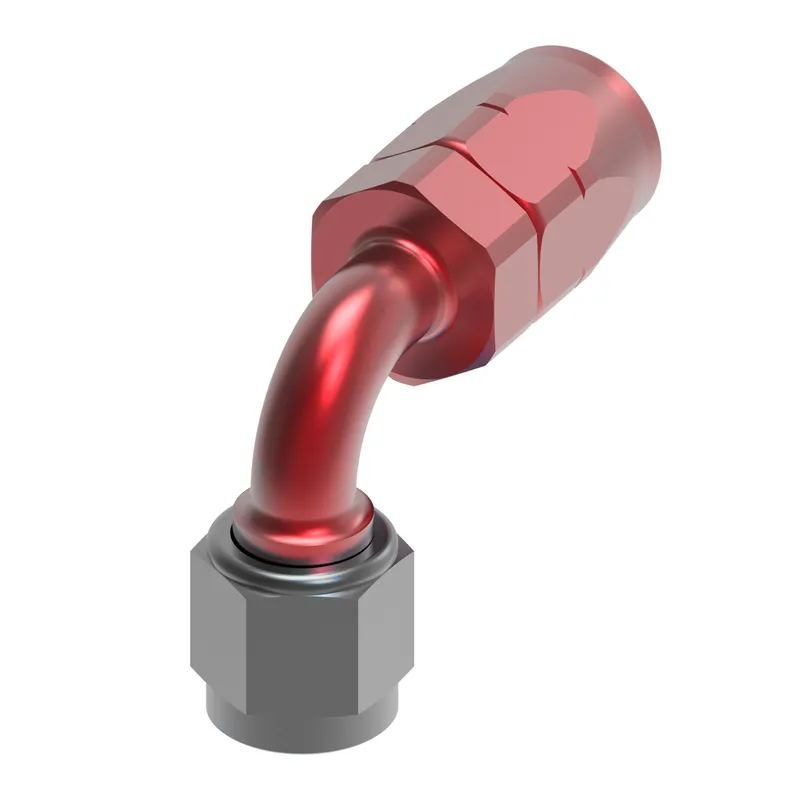

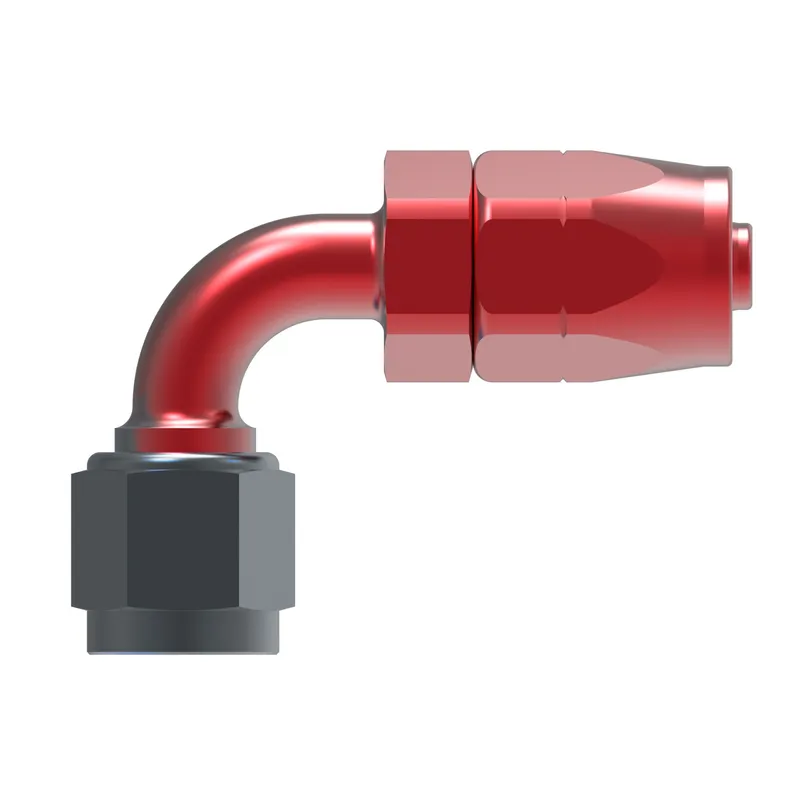

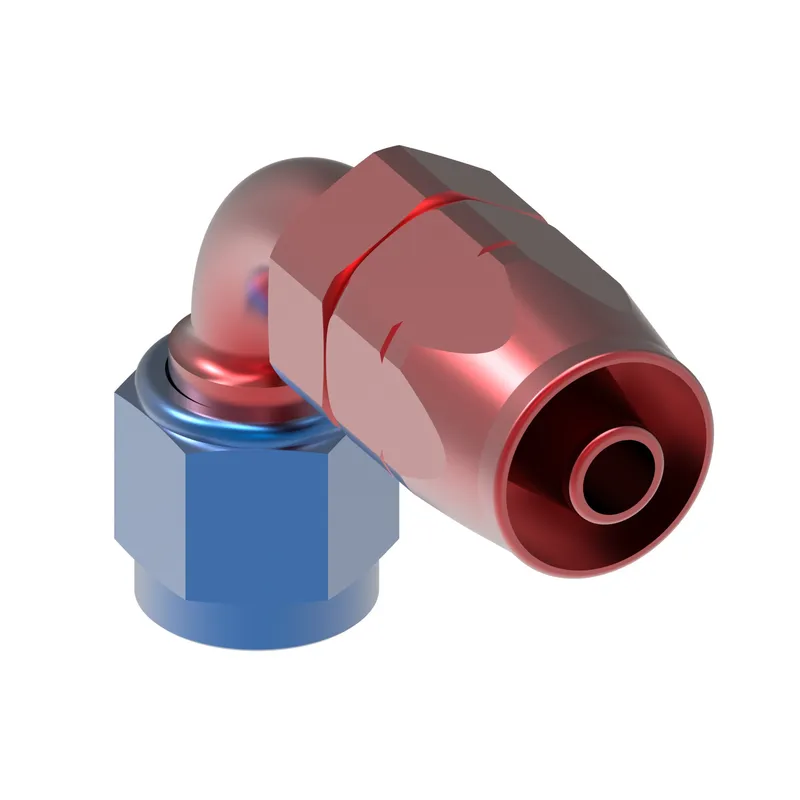

Danfoss FBM1033

HOSE FTG, SR/08, JIC-F/08, D, 90D

MPN
FBM1033
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM1033?

Danfoss HOSE FTG, SR/08, JIC-F/08, D, 90D, manufacturer part number FBM1033. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146088505
A dimension IN2.240
A dimension MM56.800
Angle shape90 Degree
Construction StyleReusable
Drop dimension IN1.160
Drop dimension MM29.50
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.748
Hex size 1 MM19.000
Hose cut off factor IN0.818
Hose cut off factor MM20.800
Inside diameter IN0.360
Inside diameter MM9.100
Product height in1.990
Product height mm50.546
Product length in3.110
Product length mm78.994
Product materialAluminum
Product width in0.875
Product width mm22.225 mm
Thread sealantNo
Thread size 13/4-16 UNF

FBM1033: frequently asked questions

When can FBM1033 be shipped?

FBM1033 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBM1033 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBM1033 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBM1033, subject to availability and destination.
