Danfoss FBM1015

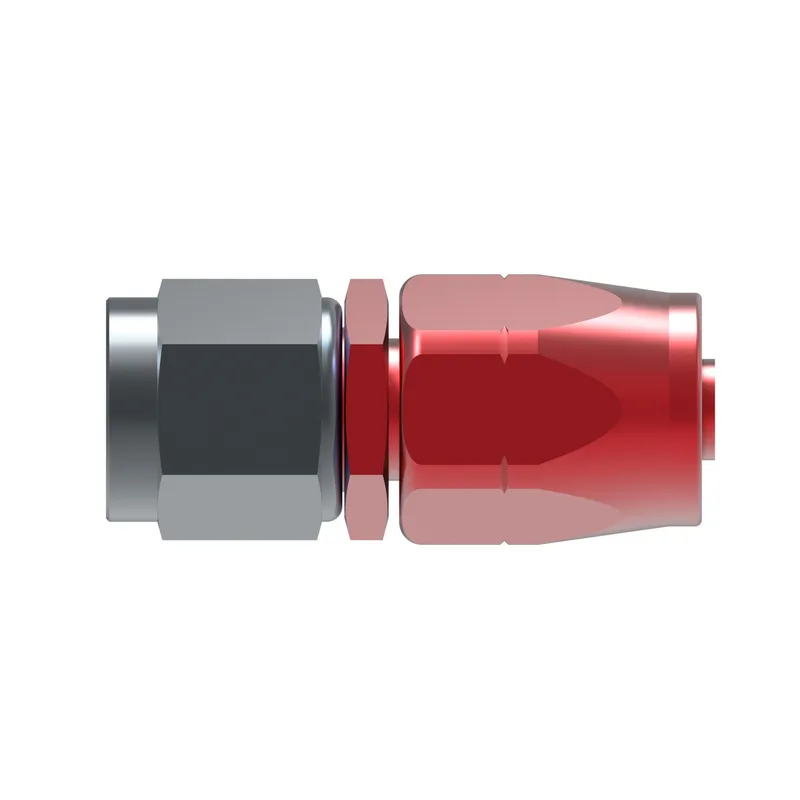

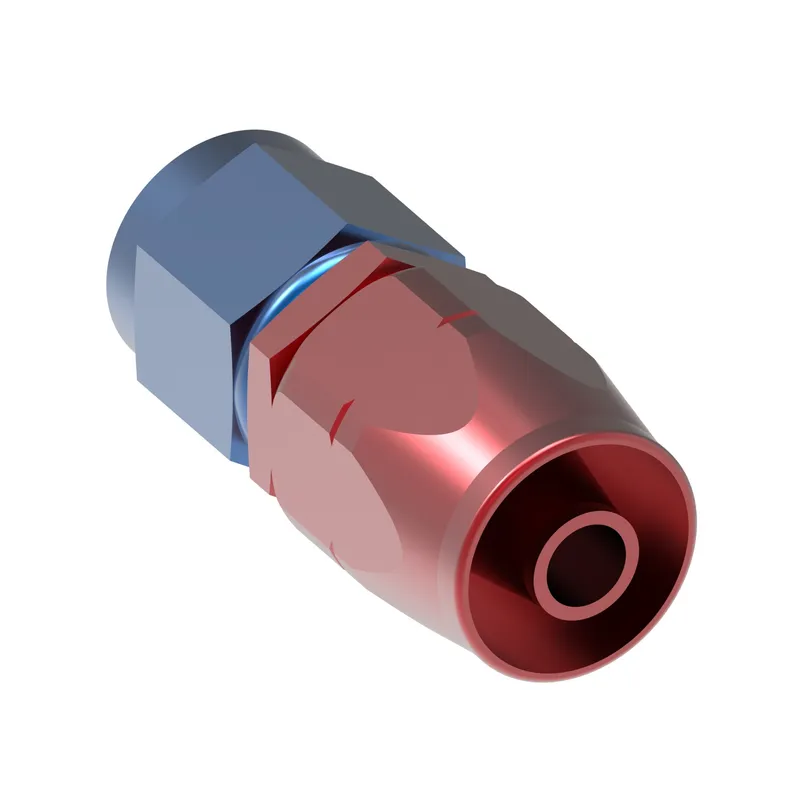

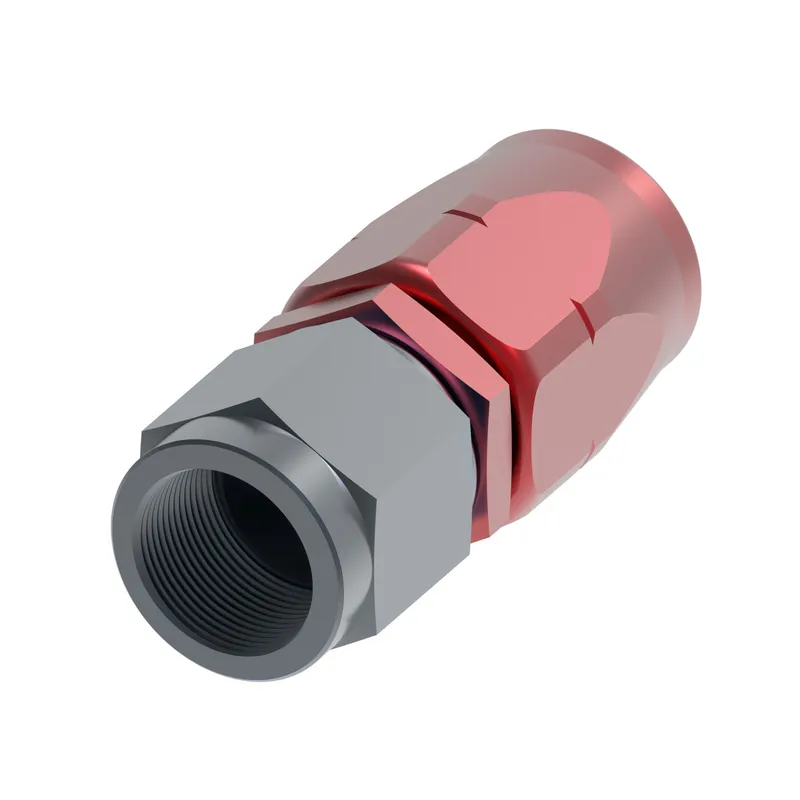

HOSE FTG, SR/12, JIC-F/12, D, STR

MPN
FBM1015
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM1015?

Danfoss HOSE FTG, SR/12, JIC-F/12, D, STR, manufacturer part number FBM1015. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146140456
A dimension IN2.560
A dimension MM65.000
Angle shapeStraight
Construction StyleReusable
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN1.259
Hex size 1 MM32.000
Hex size 2 IN1.220
Hex size 2 MM31.000
Hose cut off factor IN1.007
Hose cut off factor MM25.900
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.440
Product height mm36.576
Product length in2.560
Product length mm65.024
Product materialAluminum
Product width in1.250
Product width mm31.750 mm
Thread sealantNo
Thread size 11 1/16-12 UN
Working temperature max C149
Working temperature max F300
Working temperature min C-48
Working temperature min F-55
