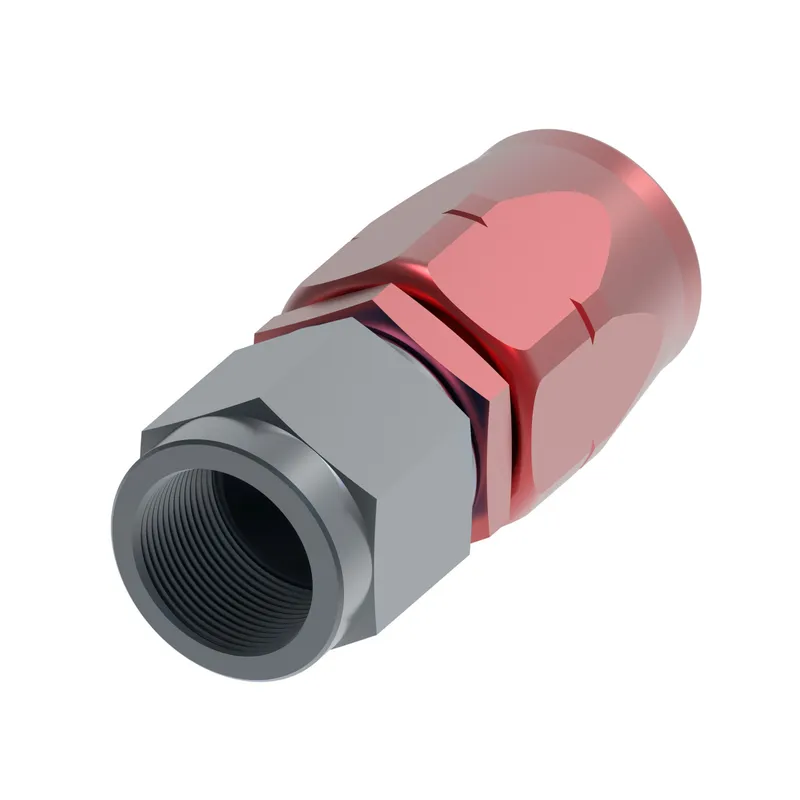

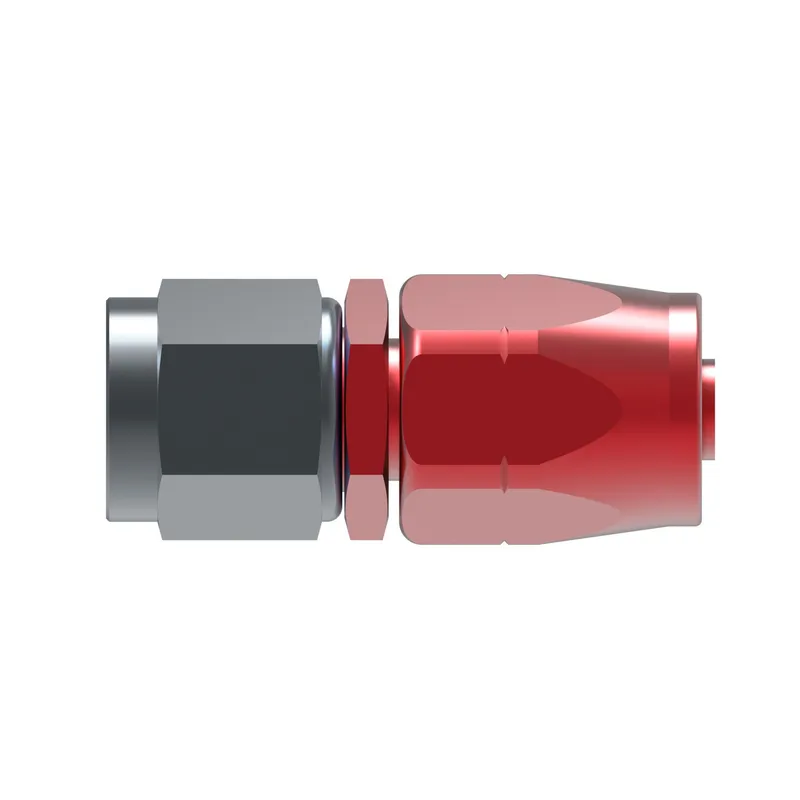

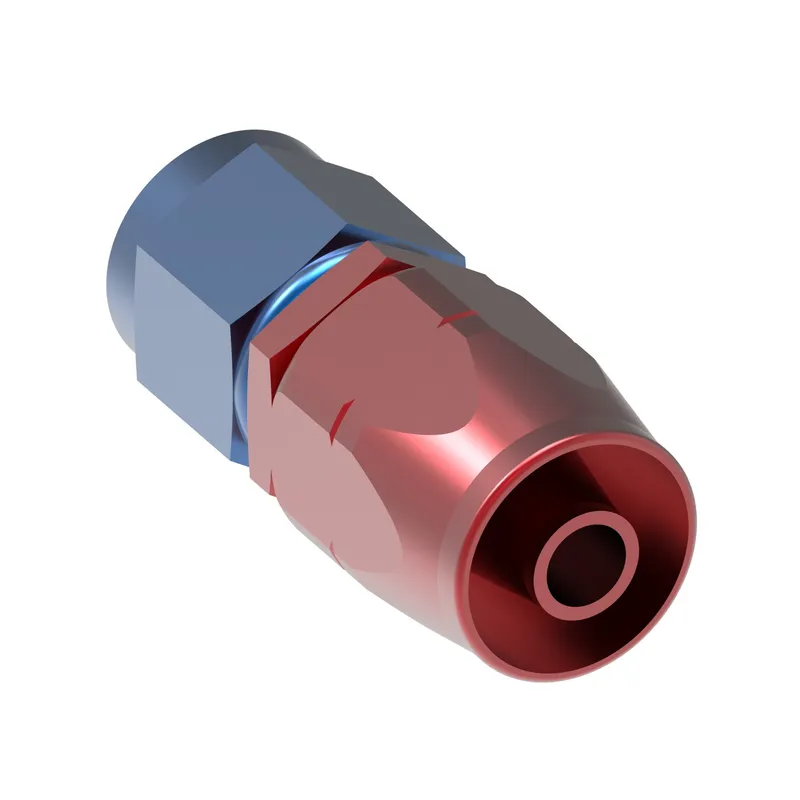

Danfoss FBM1012

HOSE FTG, SR/06, JIC-F/06, D, STR

MPN
FBM1012
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBM1012?

Danfoss HOSE FTG, SR/06, JIC-F/06, D, STR, manufacturer part number FBM1012. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146140425
A dimension IN1.810
A dimension MM45.974
Angle shapeStraight
Construction StyleReusable
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.669
Hex size 1 MM17.000
Hex size 2 IN0.669
Hex size 2 MM17.000
Hose cut off factor IN0.600
Hose cut off factor MM15.240
Inside diameter IN0.260
Inside diameter MM6.604
Product height in0.870
Product height mm22.098
Product length in1.810
Product length mm45.974
Product materialAluminum
Product width in0.750
Product width mm19.050 mm
Thread sealantNo
Thread size 19/16-18 UNF
Working temperature max C149
Working temperature max F300
Working temperature min F-55
