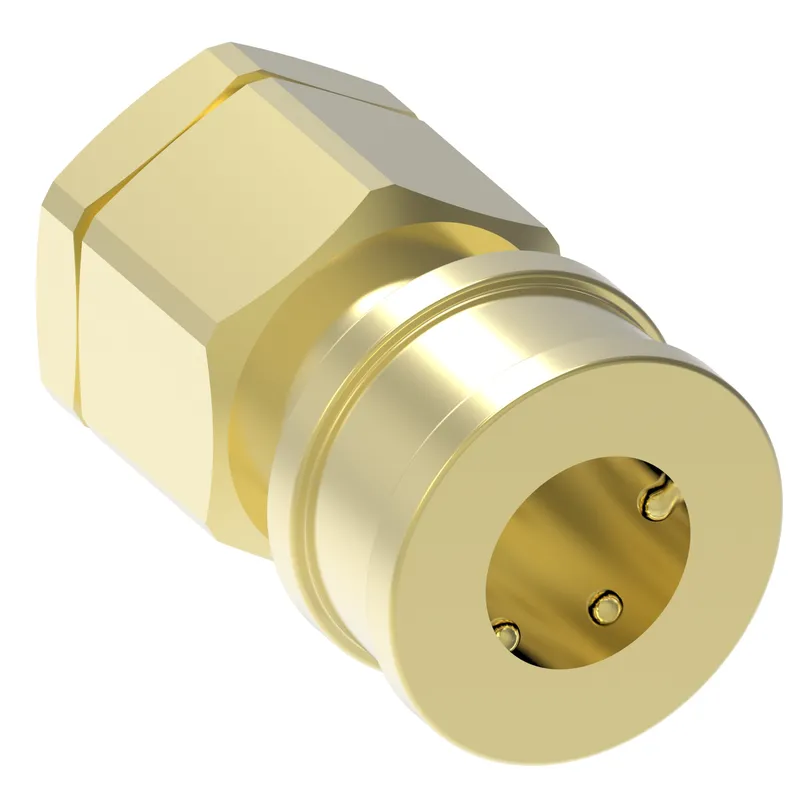

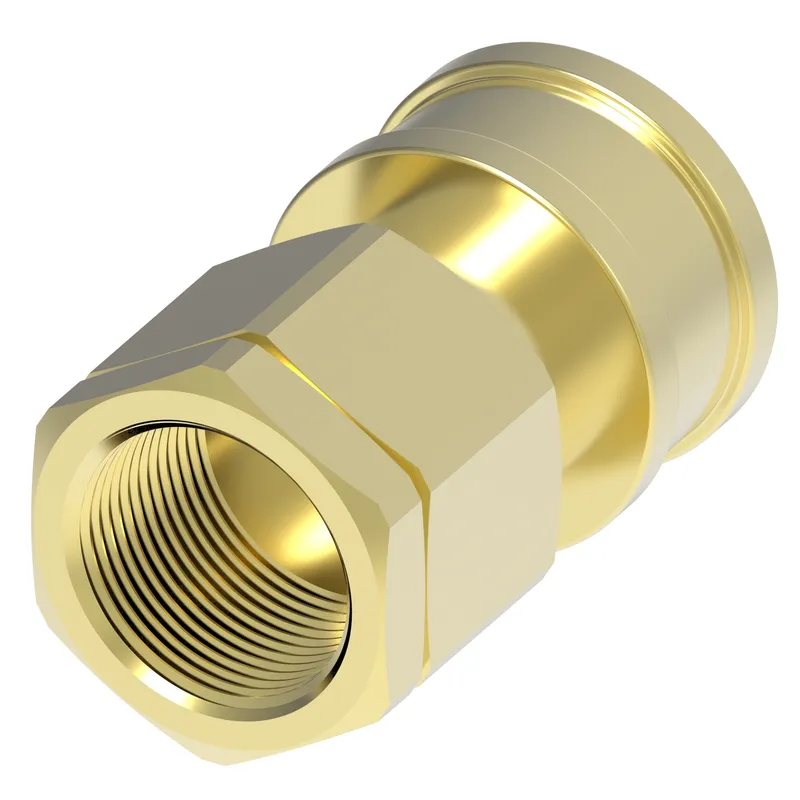

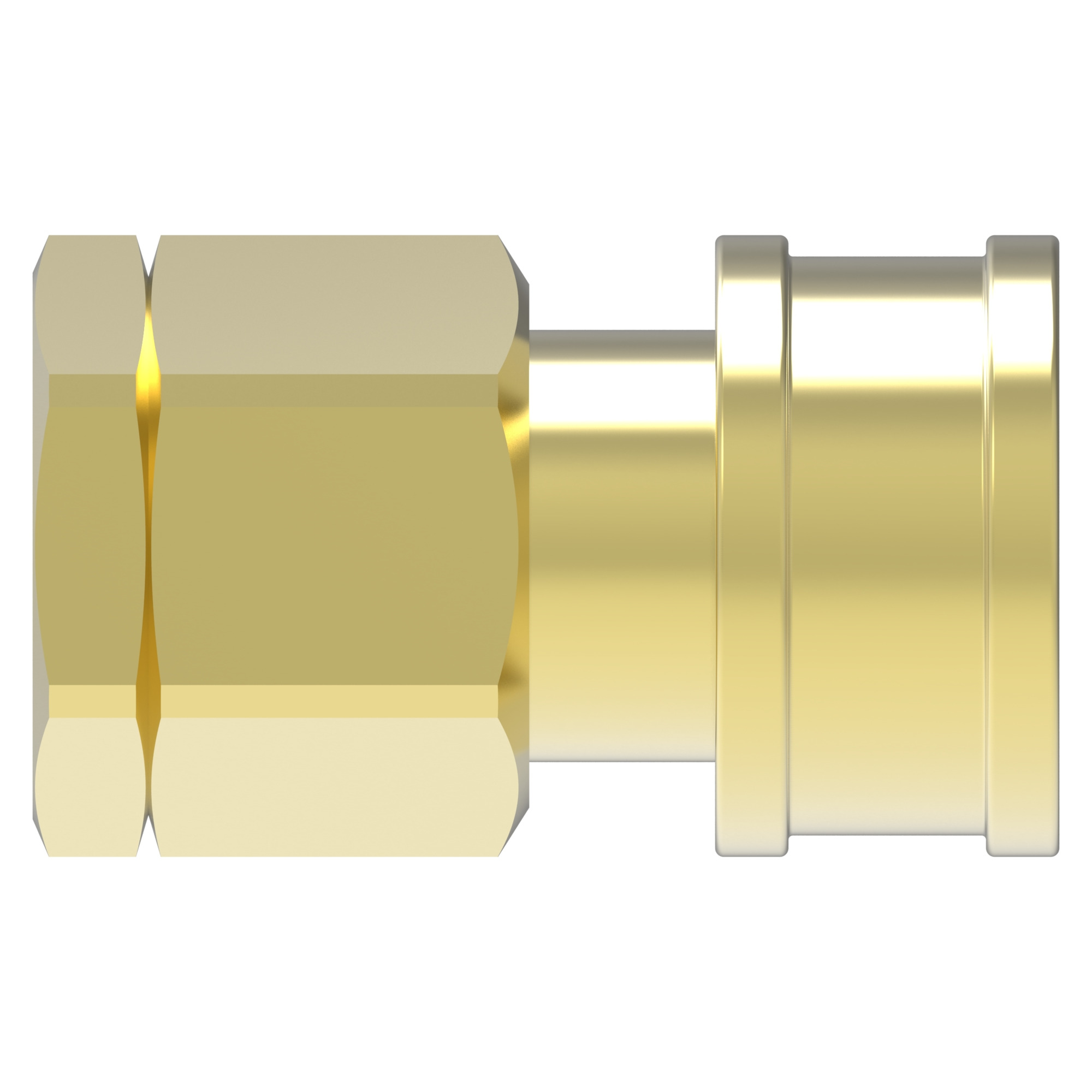

Danfoss B4HP26BS115

COUPLING,HK,F,1/2,B,-8BSPP,PTFE

MPN: B4HP26BS115
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B4HP26BS115?

Danfoss COUPLING,HK,F,1/2,B,-8BSPP,PTFE, manufacturer part number B4HP26BS115. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146107183
Air inclusion max cc	3.60
Air inclusion max in3	0.22
Angle shape	Straight
Application	Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Nuclear, Oil and gas, Transportation, Trucks
Body size	1/2
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-8
End size 2	-8
End Type 1	Female Push to Connect
End Type 2	Female BSPP swivel
Flow rate GPM	12.00
Flow rate LPM	45.43
Fluid compatibility	Hydraulic fluid
Fluid loss cc	3.50000
Fluid loss in3	0.21400
Hex size 1 IN	1.130
Hex size 1 MM	28.702
Item type	Female half
Latch type	Push/pull
Product material	Brass
Safety locking mechanism	None
Seal material	Polytetrafluoroethylene (PTFE)
Thread size 1	G 1/2
Thread size 2	G 1/2
Valve type	2 way
Working pressure max psi	2250
Working pressure max BAR	155.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
