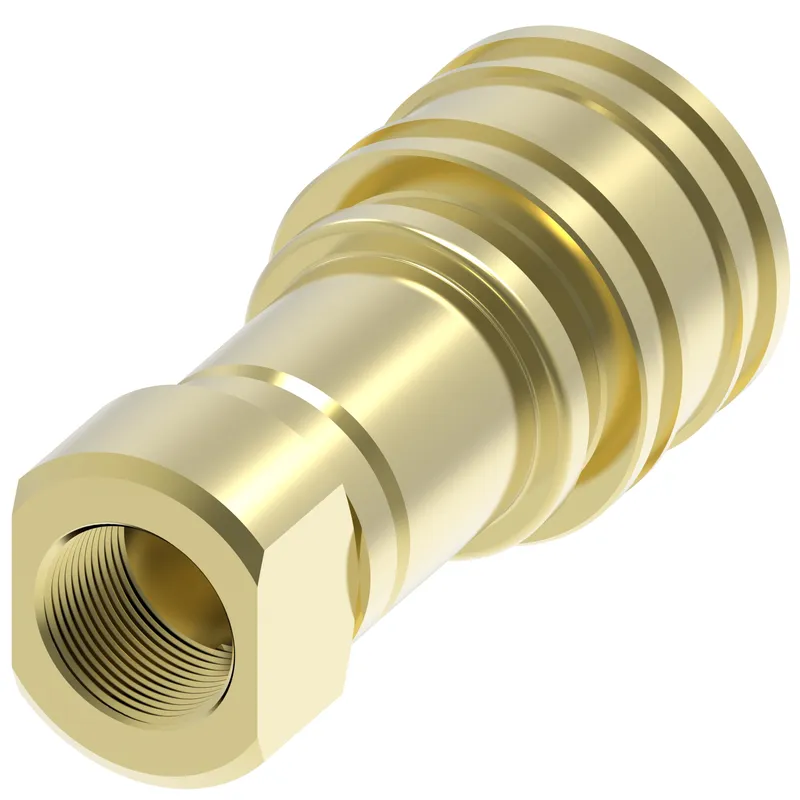

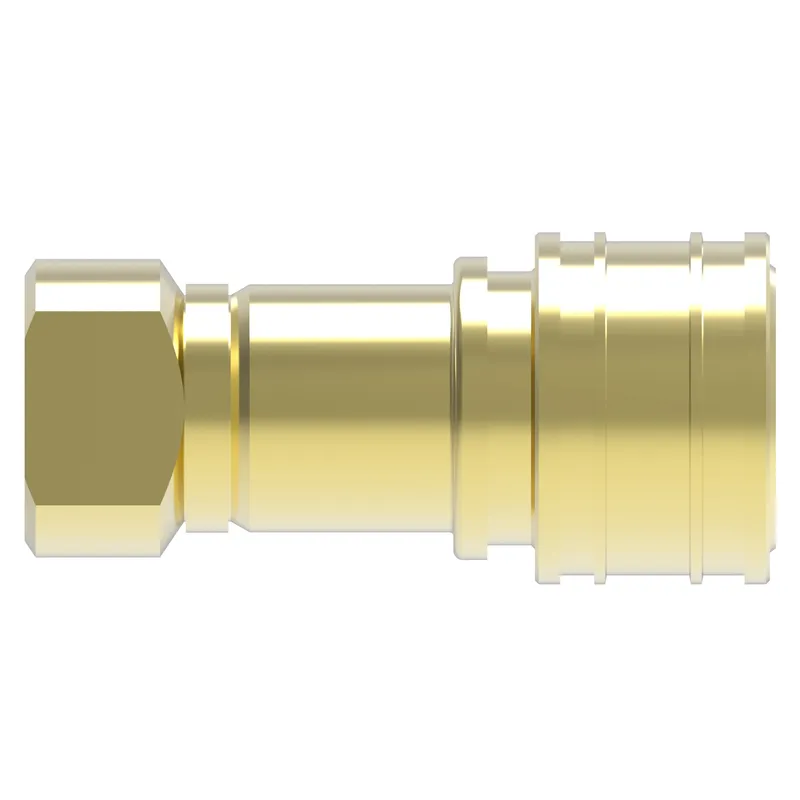

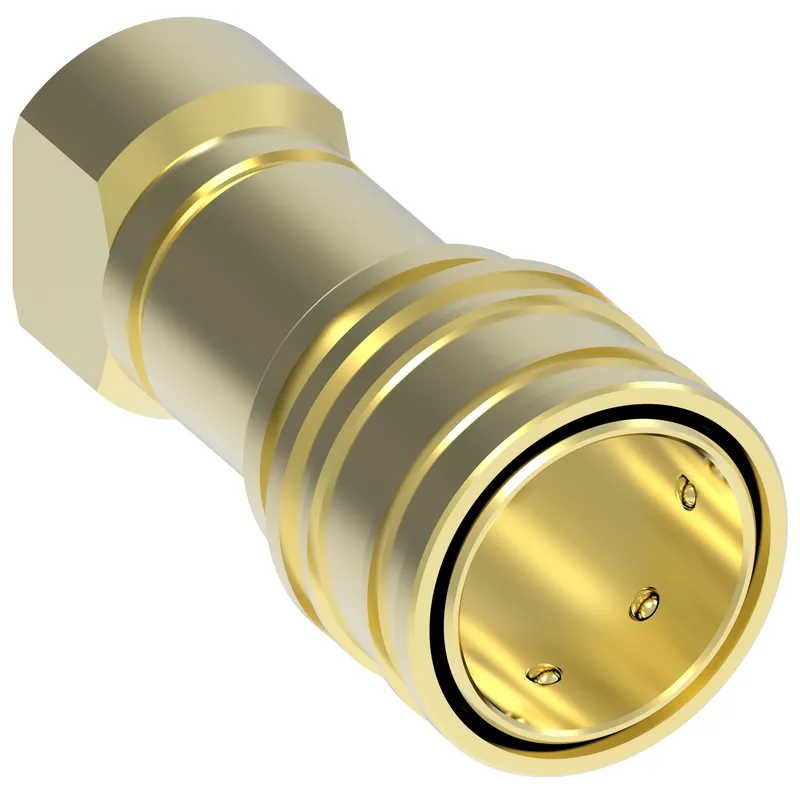

Danfoss B4HP26236

Cplng, HK SERIES SOCKET, BRASS

MPN: B4HP26236
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B4HP26236?

Danfoss Cplng, HK SERIES SOCKET, BRASS, manufacturer part number B4HP26236. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146161680
Air inclusion max cc	3.60
Air inclusion max in3	0.22
Angle shape	Straight
Body size	1/2
Brand	Danfoss
Connection style	Manual connect
End size 2	-8
End Type 1	Female Push to Connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	12.00
Flow rate LPM	45.43
Fluid compatibility	Hydraulic fluid
Fluid loss cc	3.50000
Fluid loss in3	0.21400
Hex size 1 IN	1.130
Hex size 1 MM	28.702
Item type	Female half
Product length in	2.960
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	5000
Working pressure max BAR	345.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65

B4HP26236: frequently asked questions

When can B4HP26236 be shipped?

B4HP26236 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B4HP26236 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B4HP26236 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B4HP26236, subject to availability and destination.
