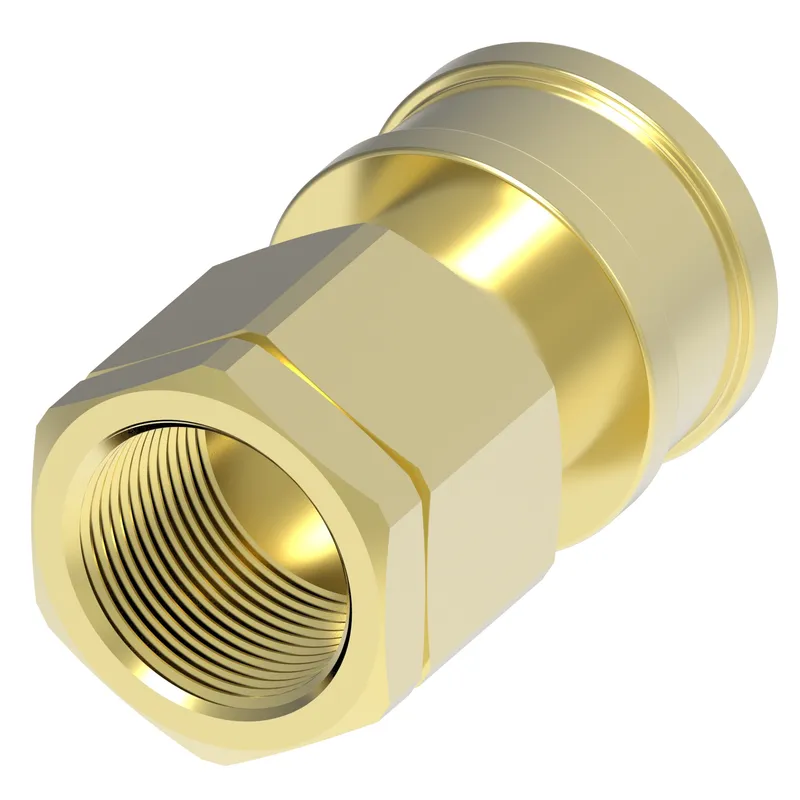

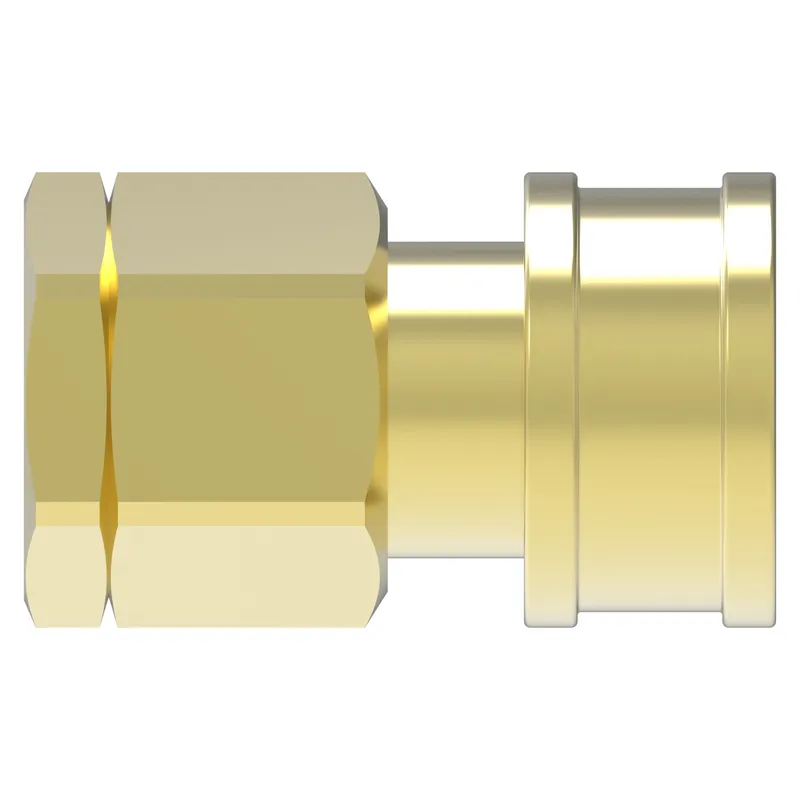

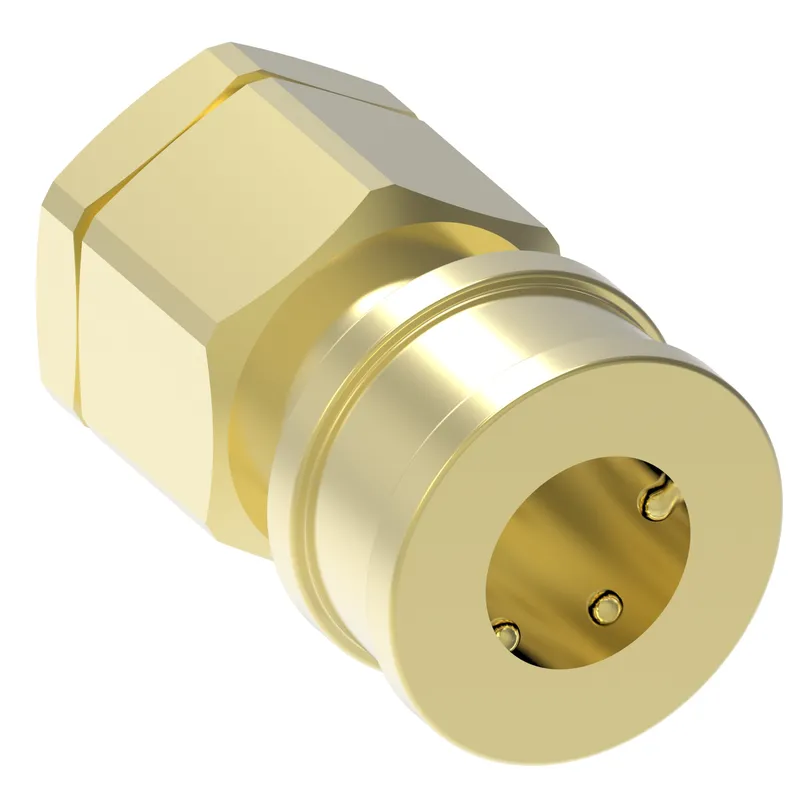

Danfoss B20H51SL146

CPLING, HK SERIES, BRASS FEMALE, SL, NBR

MPN: B20H51SL146
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B20H51SL146?

Danfoss CPLING, HK SERIES, BRASS FEMALE, SL, NBR, manufacturer part number B20H51SL146. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	209.90
Air inclusion max in3	12.81
Angle shape	Straight
Body size	2 1/2"
Brand	Danfoss
Connection style	Manual connect
End size 2	-32
End Type 1	Female Push to Connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	200.00
Flow rate LPM	757.08
Fluid compatibility	Hydraulic fluid
Fluid loss cc	209.90000
Fluid loss in3	12.80900
Hex size 1 IN	3.750
Hex size 1 MM	95.250
Item type	Female half
Latch type	Push/pull
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	700
Working pressure max BAR	48.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
