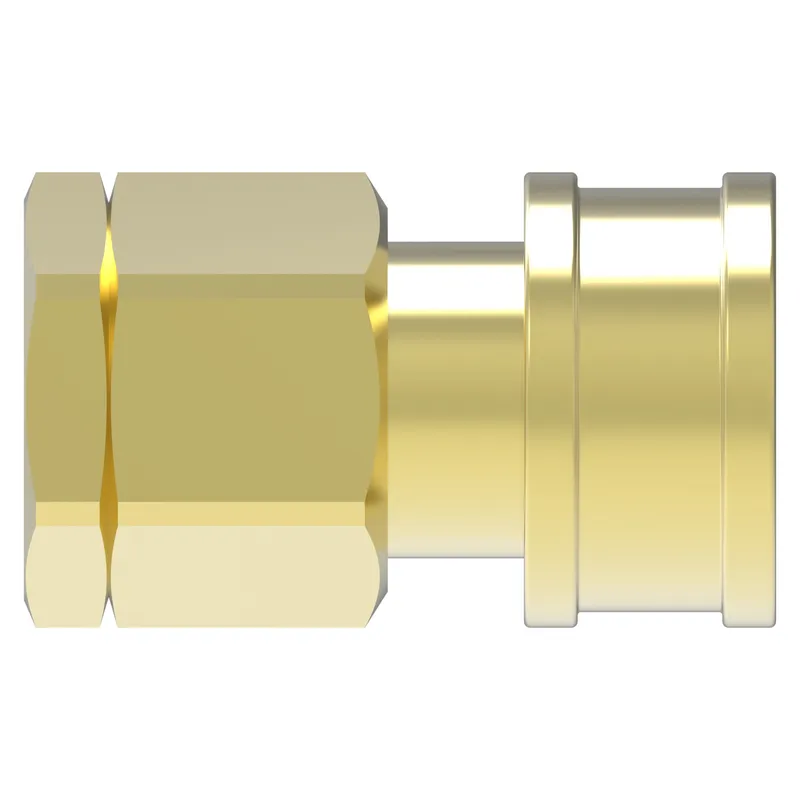

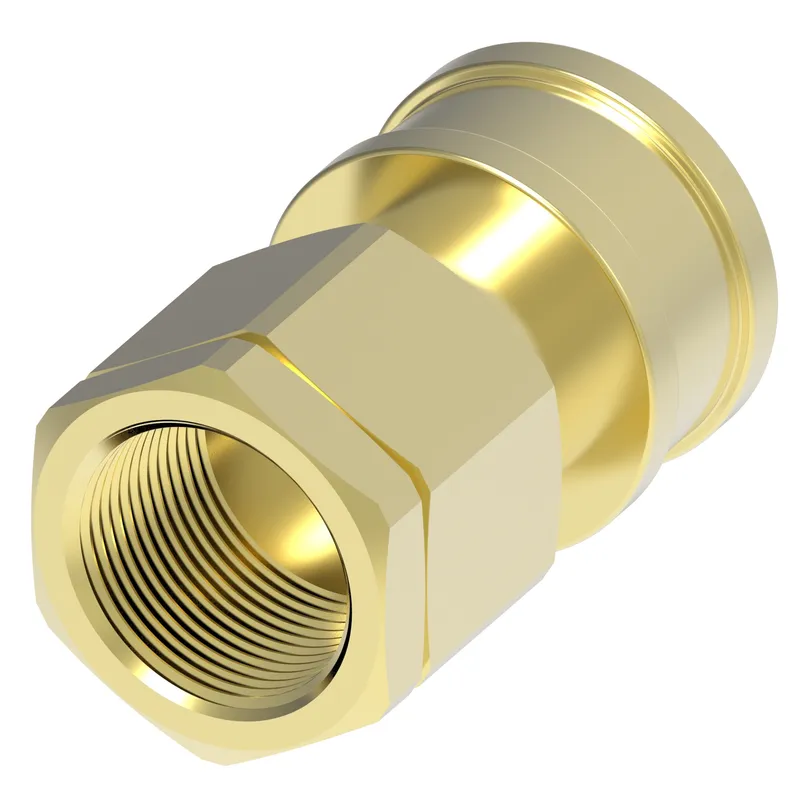

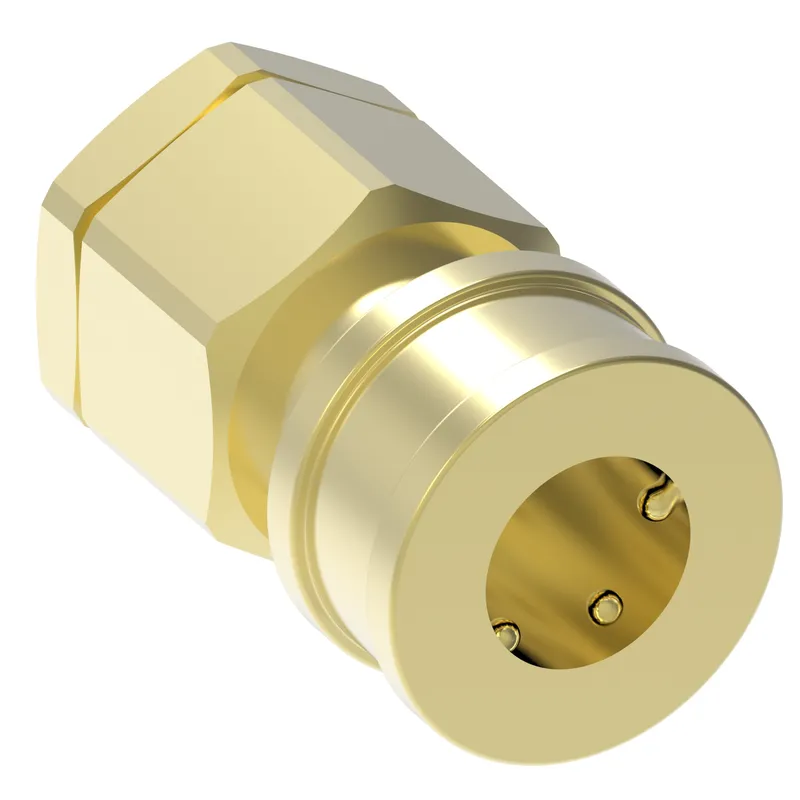

Cplng, HK SERIES SOCKET, BRASS

Name: Cplng, HK SERIES SOCKET, BRASS
Brand: Danfoss (Drives)
SKU: B20H51143

MPN: B20H51143 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can B20H51143 be shipped?

B20H51143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B20H51143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B20H51143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B20H51143, subject to availability and destination.

Danfoss Cplng, HK SERIES SOCKET, BRASS, manufacturer part number B20H51143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146161192
Air inclusion max cc	209.90
Air inclusion max in3	12.81
Angle shape	Straight
Body size	2 1/2"
Brand	Danfoss
Connection style	Manual connect
End size 2	-32
End Type 1	Female Push to Connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	200.00
Flow rate LPM	757.08
Fluid compatibility	Hydraulic fluid
Fluid loss cc	209.90000
Fluid loss in3	12.80900
Hex size 1 IN	3.750
Hex size 1 MM	95.250
Item type	Female half
Latch type	Push/pull
Product length in	5.550
Product material	Brass
Safety locking mechanism	None
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	700
Working pressure max BAR	48.00
Working temperature max C	204
Working temperature max F	400
Working temperature min C	-26
Working temperature min F	-15
