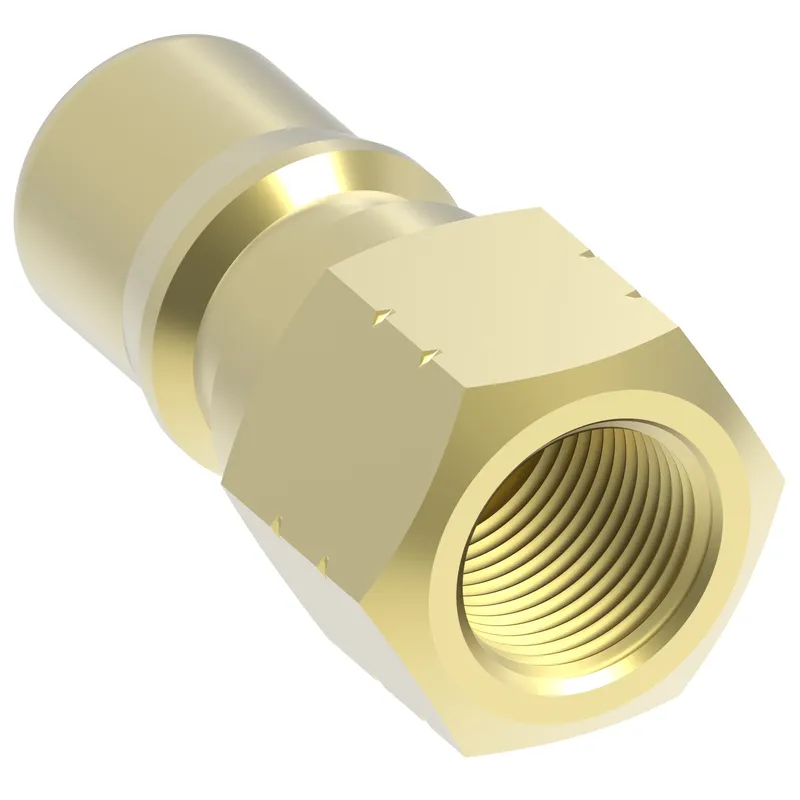

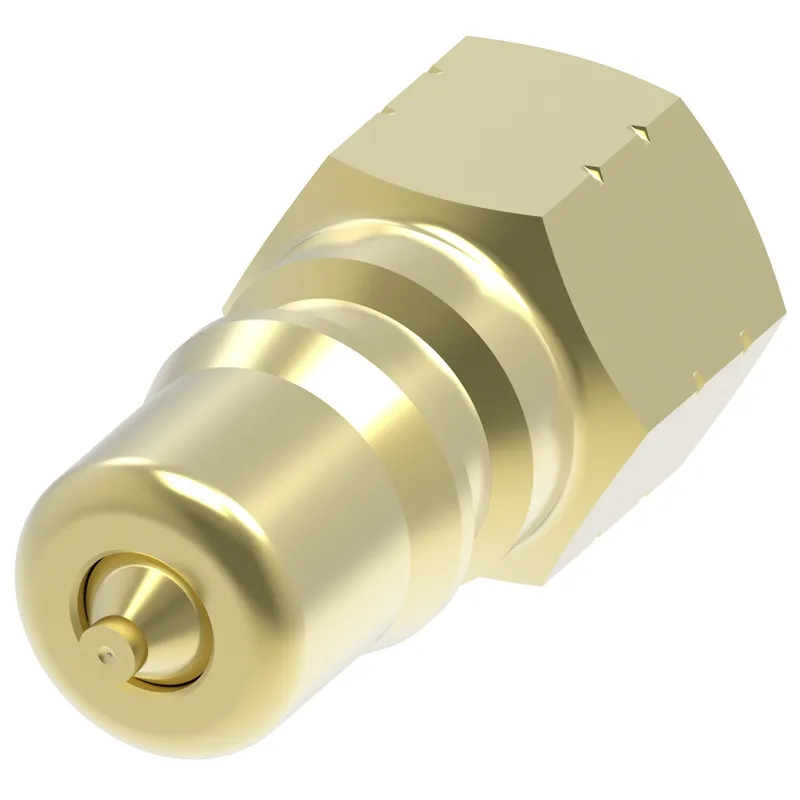

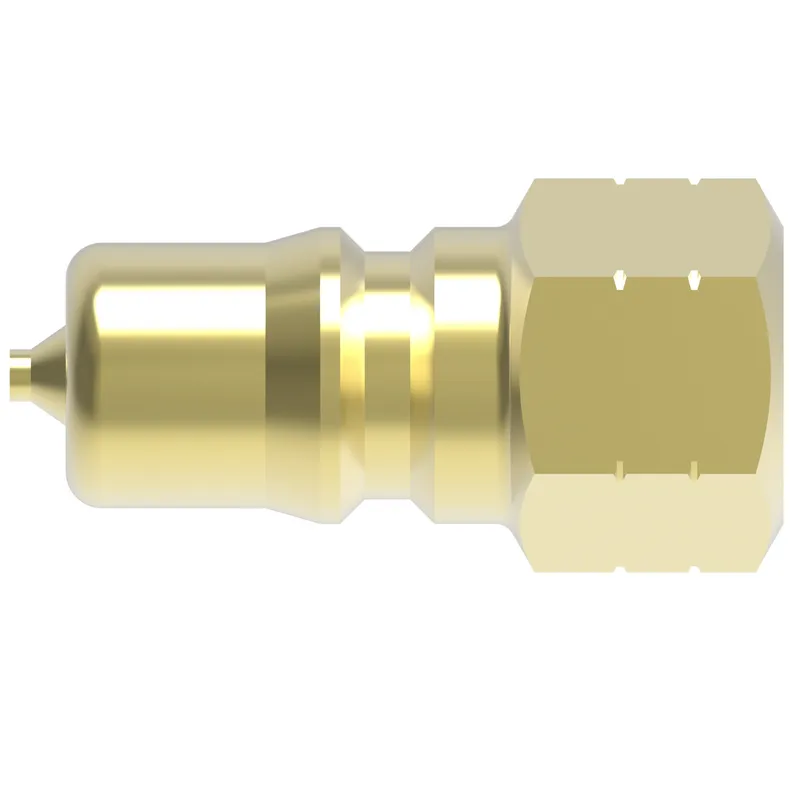

Cplng, HK SERIES FEMALE, BRASS

Name: Cplng, HK SERIES FEMALE, BRASS
Brand: Danfoss (Drives)
SKU: B1K4

MPN: B1K4 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can B1K4 be shipped?

B1K4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B1K4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B1K4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B1K4, subject to availability and destination.

Danfoss Cplng, HK SERIES FEMALE, BRASS, manufacturer part number B1K4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146201966
Air inclusion max cc	0.60
Air inclusion max in3	0.04
Angle shape	Straight
Body size	1/8
Brand	Danfoss
Connection style	Manual connect
End size 2	7/16"
End Type 1	Male push to connect
End Type 2	Female 37 degree swivel
Flow rate GPM	0.80
Flow rate LPM	3.03
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.50000
Fluid loss in3	0.03100
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Item type	Male half
Latch type	Push/pull
Product material	Brass
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	3000
Working pressure max BAR	207.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
