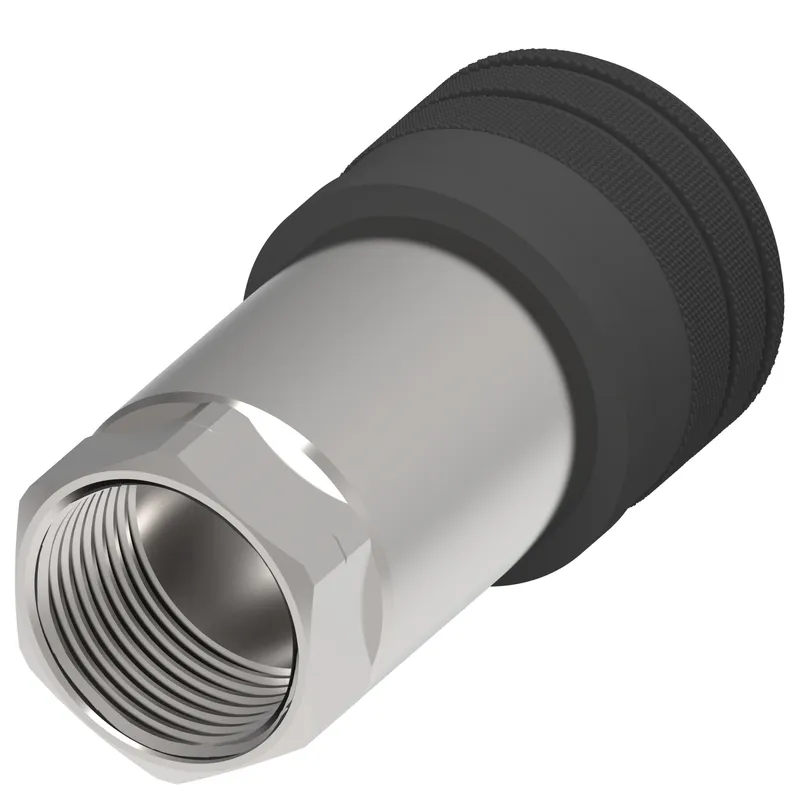

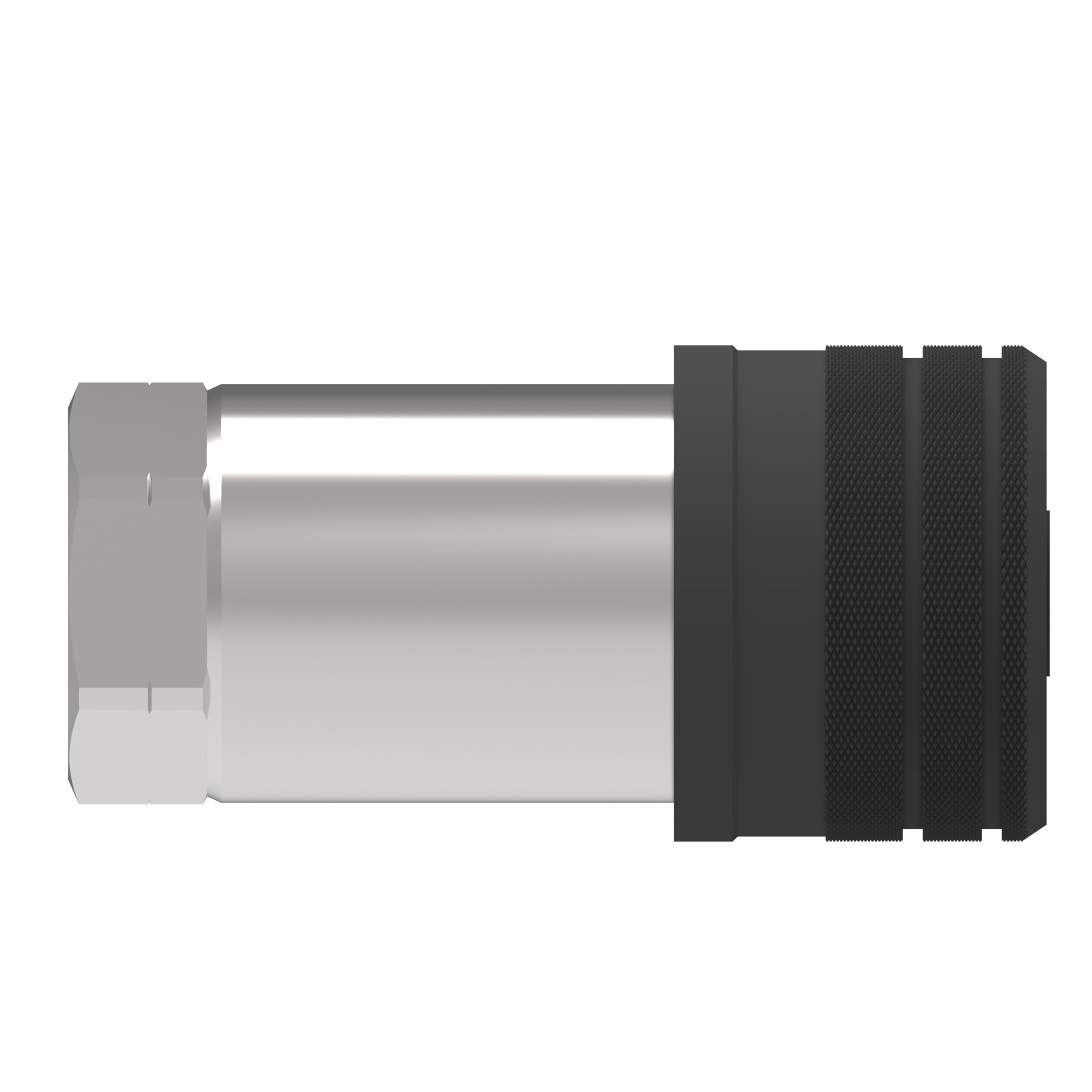

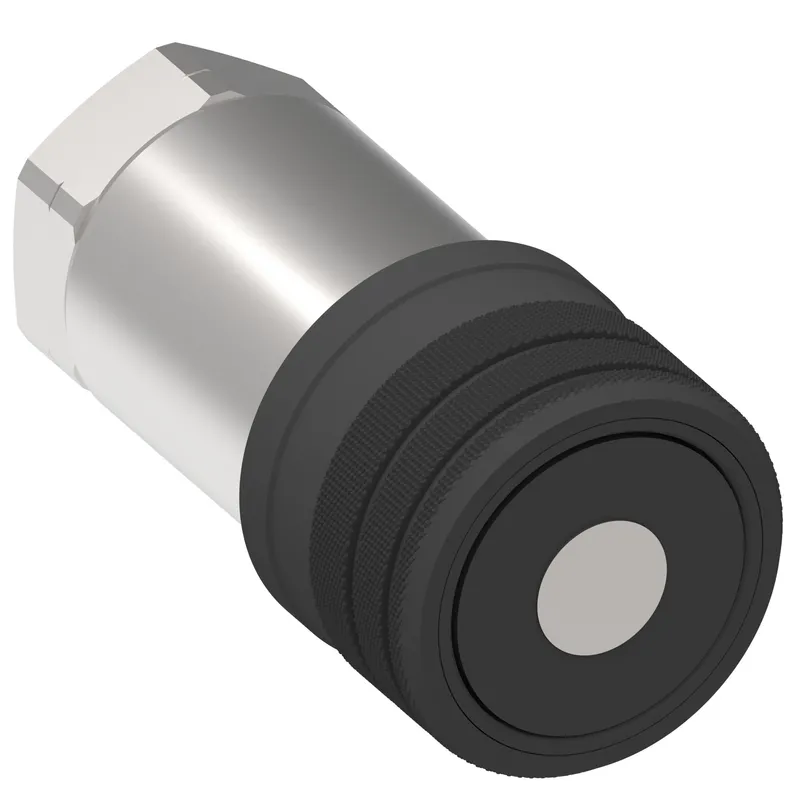

Danfoss A8DBS100BS143

COUPLING,ADB,F,1",ALU,-16BSP,FKM

MPN: A8DBS100BS143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss A8DBS100BS143?

Danfoss COUPLING,ADB,F,1",ALU,-16BSP,FKM, manufacturer part number A8DBS100BS143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	0.15
Angle shape	Straight
Application	Cooling applications, Data centers, Process industry, Railways, Renewable energy
Body size	1"
Brand	Danfoss
Connection style	Manual connect
End size 1	-16
End type 1	Female BSPP port washer seal.
Flow rate GPM	76.61
Fluid loss cc	0.13000
Hex size 1 IN	2.160
Item type	Female half
Latch type	Push to connect
Product material	Aluminum
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Thread size 1	G 1
Valve type	2 way
Working pressure max psi	360
Working temperature max F	392
Working temperature min F	-4

A8DBS100BS143: frequently asked questions

When can A8DBS100BS143 be shipped?

A8DBS100BS143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up A8DBS100BS143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for A8DBS100BS143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for A8DBS100BS143, subject to availability and destination.
