Danfoss A8DBP100BS192

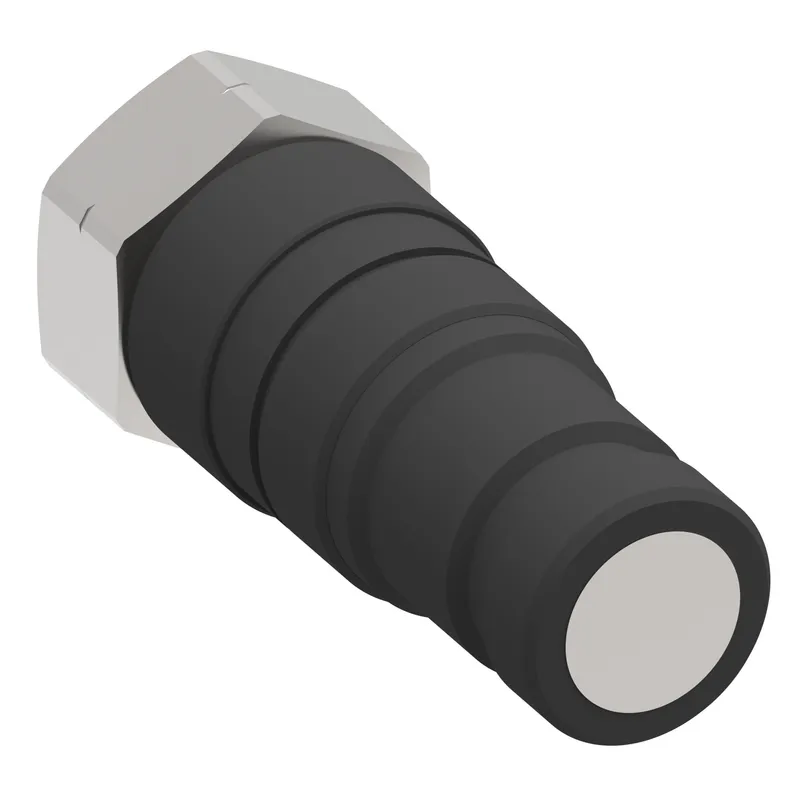

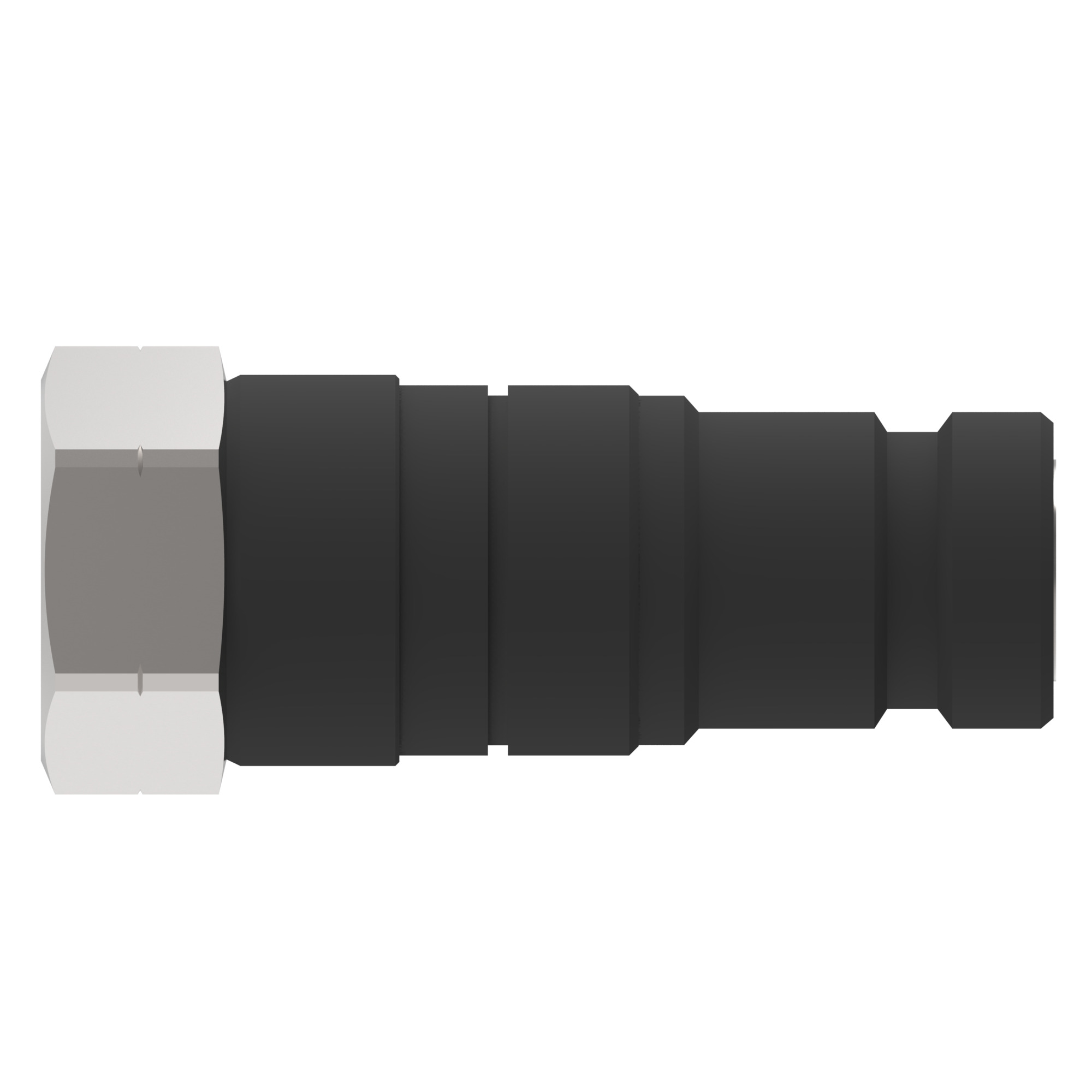

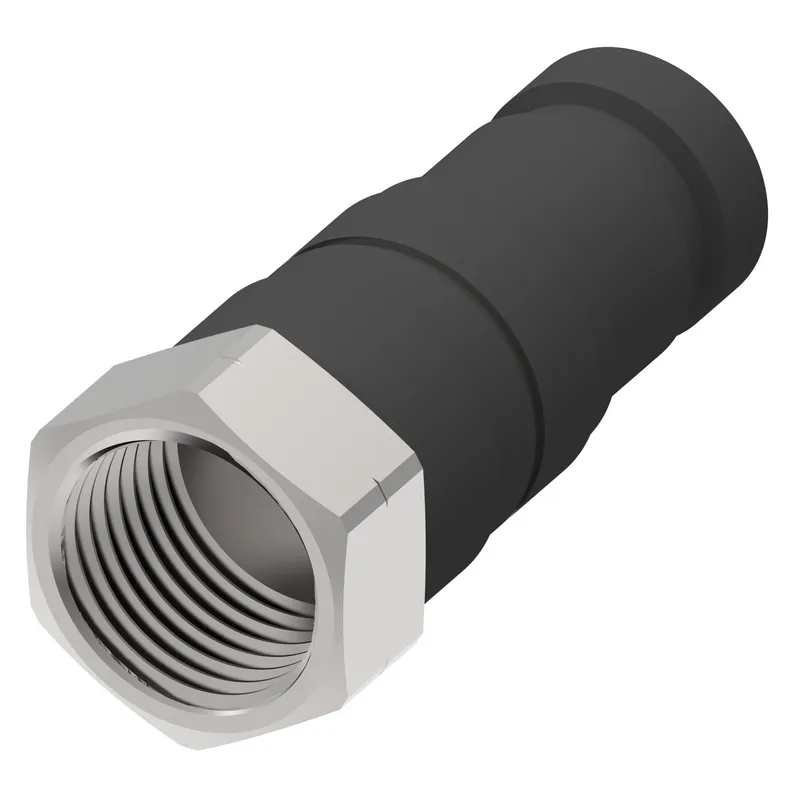

COUPLING,ADB,M,1",ALU,-16BSP,EPDM
- MPN
- A8DBP100BS192
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss A8DBP100BS192?
Danfoss COUPLING,ADB,M,1",ALU,-16BSP,EPDM, manufacturer part number A8DBP100BS192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Air inclusion max cc | 0.15 |
| Angle shape | Straight |
| Application | Cooling applications, Data centers, Process industry, Railways, Renewable energy |
| Body size | 1" |
| Brand | Danfoss |
| Certifications | ISO 16028 |
| Connection style | Manual connect |
| End size 1 | -16 |
| End type 1 | Female BSPP port washer seal. |
| Flow rate GPM | 76.61 |
| Fluid loss cc | 0.13000 |
| Hex size 1 IN | 1.970 |
| Item type | Male half |
| Latch type | Push to connect |
| Product material | Aluminum |
| Seal material | Ethylene propylene (EPDM) |
| Sub brand | Hansen |
| Thread size 1 | G 1 |
| Valve type | 2 way |
| Working pressure max psi | 360 |
| Working temperature max F | 302 |
| Working temperature min F | -40 |
