Danfoss 90N10-125500-0

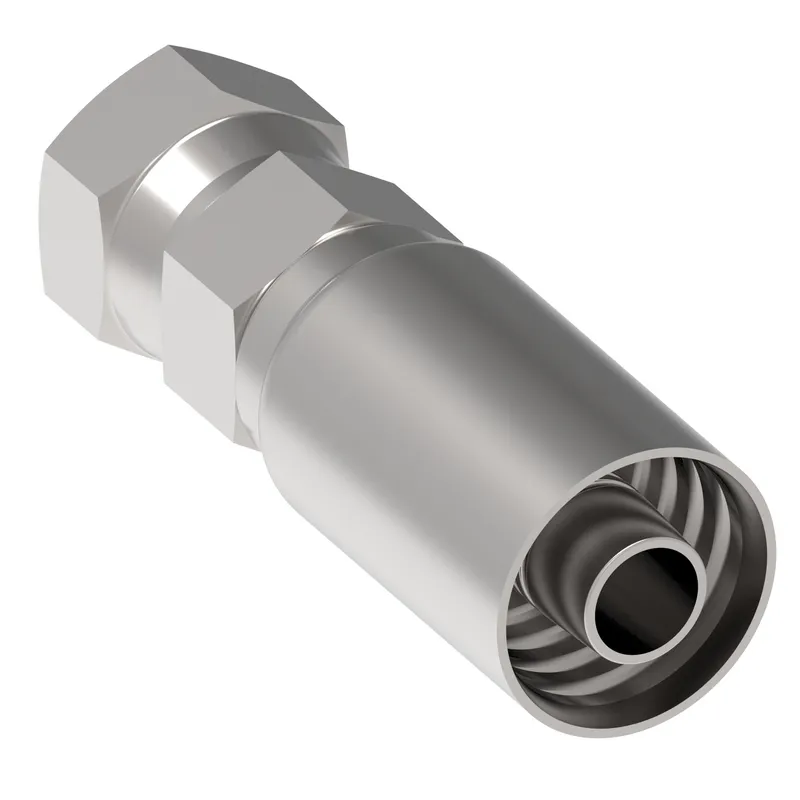

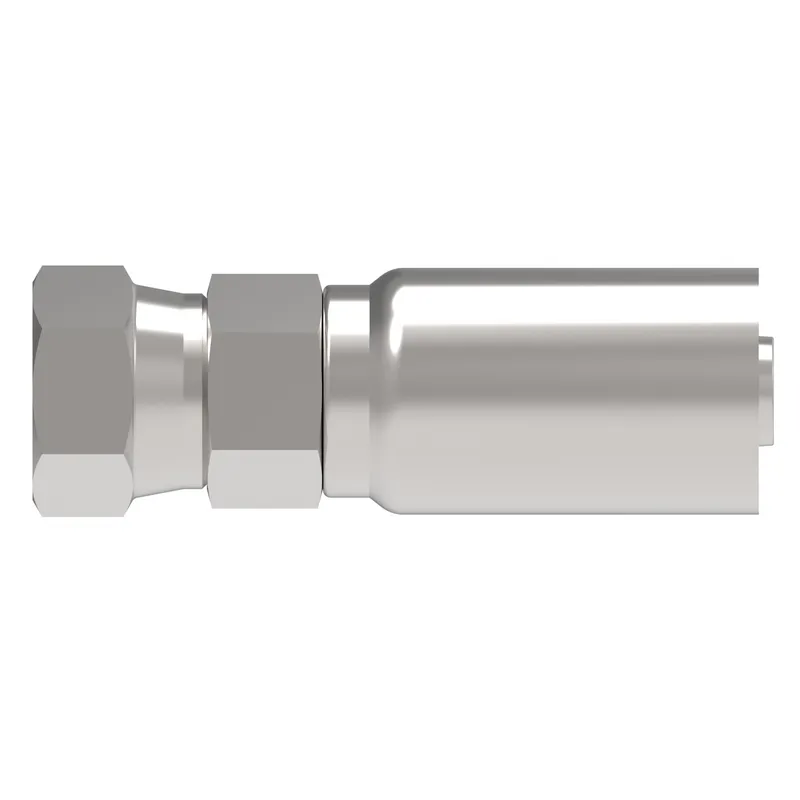

HOSE FTG, 4T/10, JIC-F/10, AP, STR

MPN: 90N10-125500-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90N10-125500-0?

Danfoss HOSE FTG, 4T/10, JIC-F/10, AP, STR, manufacturer part number 90N10-125500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789326591
A dimension IN	3.470
A dimension MM	88.100
Angle shape	Straight
Compatible hose ID IN	0.620
Compatible hose ID MM	16.002
Compatible hoses	30CT (Size dependent), 3360
Construction Style	Crimp
End size 1	-10
End type 1	Female 37 degree swivel
Hex size 1 IN	1.141
Hex size 1 MM	29.0
Hex size 2 IN	1.220
Hex size 2 MM	31.0
Hose cut off factor IN	1.880
Hose cut off factor MM	47.800
Hose size	-10
Inside diameter IN	0.470
Inside diameter MM	11.900
Product height in	1.310
Product height mm	33.274
Product length in	3.470
Product length mm	88.138
Product material	316L Stainless steel
Product width in	1.310
Product width mm	33.274 mm
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working temperature max C	94
Working temperature max F	200
Working temperature min C	-54
Working temperature min F	-65
