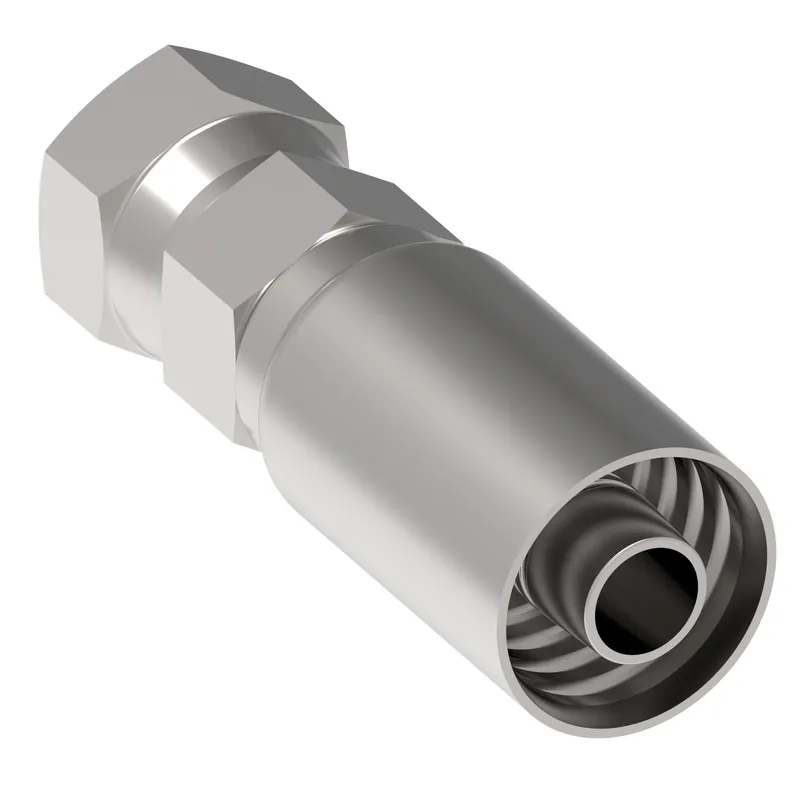

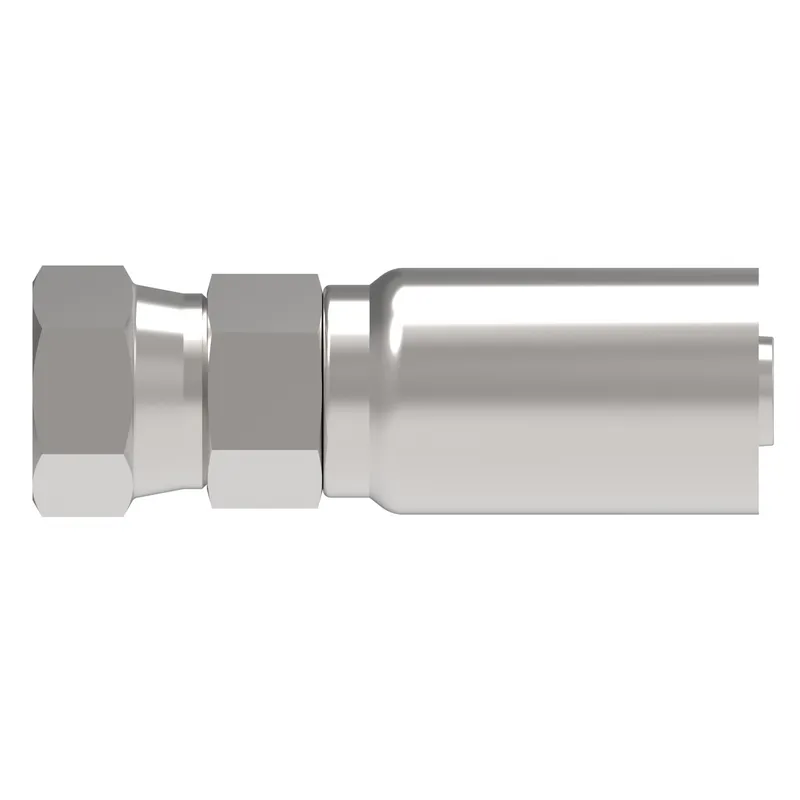

Danfoss 90L16-165500-0

HOSE FTG, 4T/16, JIC-F/16, AP, STR

MPN: 90L16-165500-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90L16-165500-0?

Danfoss HOSE FTG, 4T/16, JIC-F/16, AP, STR, manufacturer part number 90L16-165500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789352606
A dimension IN	4.060
A dimension MM	103.000
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	1.000
Construction Style	Crimp
End size 1	-16
End type 1	Female 37 degree swivel
Hex size 1 IN	1.377
Hex size 1 MM	35.000
Hex size 2 IN	1.496
Hex size 2 MM	38.000
Hose cut off factor IN	1.940
Hose cut off factor MM	49.300
Inside diameter IN	0.810
Inside diameter MM	20.600
Product height in	1.500
Product height mm	38.100
Product length in	4.060
Product length mm	103.124
Product material	316L Stainless steel
Product width in	1.500
Product width mm	38.100 mm
Thread sealant	No
Thread size 1	1 5/16-12 UN
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

90L16-165500-0: frequently asked questions

When can 90L16-165500-0 be shipped?

90L16-165500-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90L16-165500-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90L16-165500-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90L16-165500-0, subject to availability and destination.
