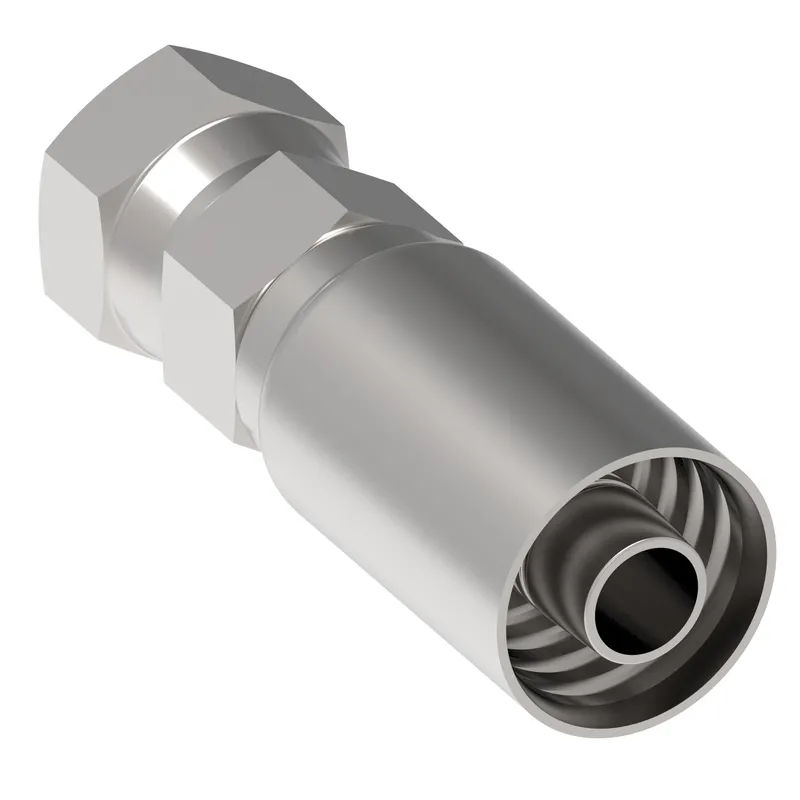

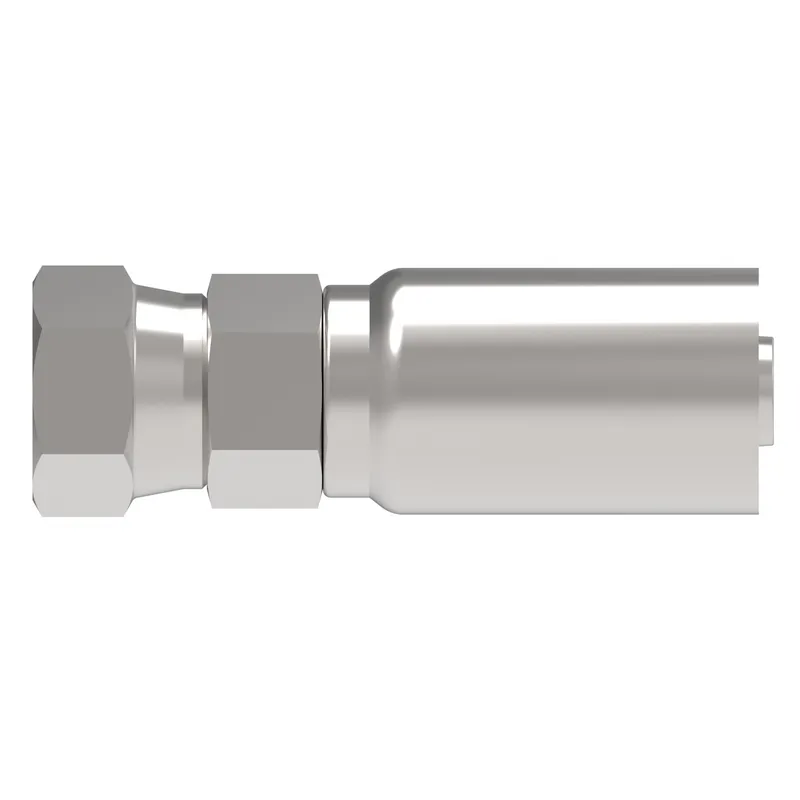

Danfoss 90L04-065500-0

HOSE FTG, 4T/04, JIC-F/04, AP, STR

MPN: 90L04-065500-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90L04-065500-0?

Danfoss HOSE FTG, 4T/04, JIC-F/04, AP, STR, manufacturer part number 90L04-065500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	813688020914
A dimension IN	2.820
A dimension MM	71.600
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.250
Construction Style	Crimp
End size 1	-4
End type 1	Female 37 degree swivel
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hex size 2 IN	0.748
Hex size 2 MM	19.000
Hose cut off factor IN	1.570
Hose cut off factor MM	39.900
Inside diameter IN	0.2800
Inside diameter MM	7.1000
Product height in	0.750
Product height mm	19.050
Product length in	2.540
Product length mm	64.516
Product material	316L Stainless steel
Product width in	0.750
Product width mm	19.050 mm
Thread sealant	No
Thread size 1	9/16-18 UNF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
