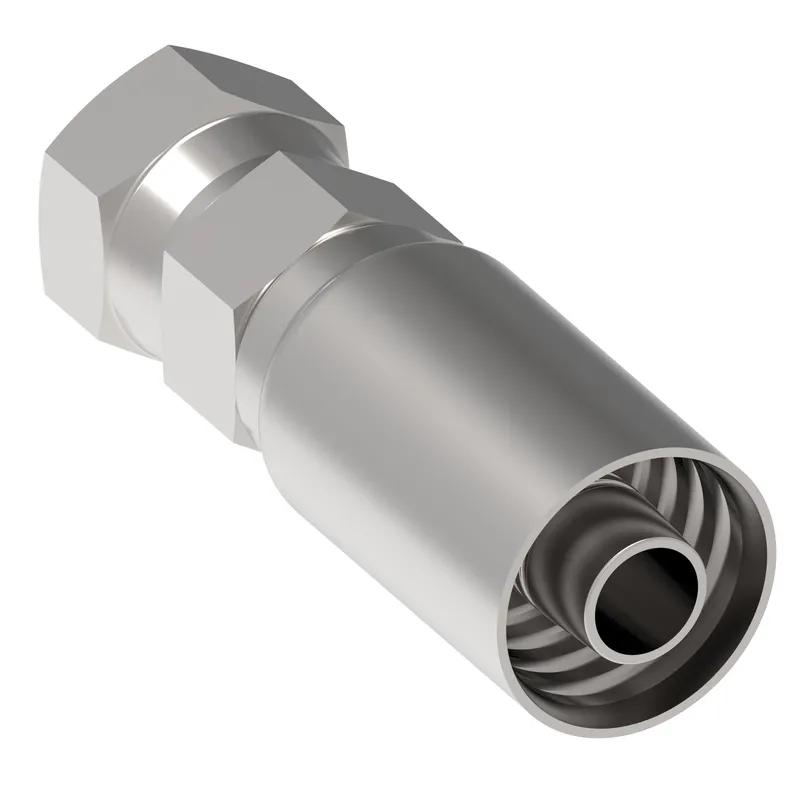

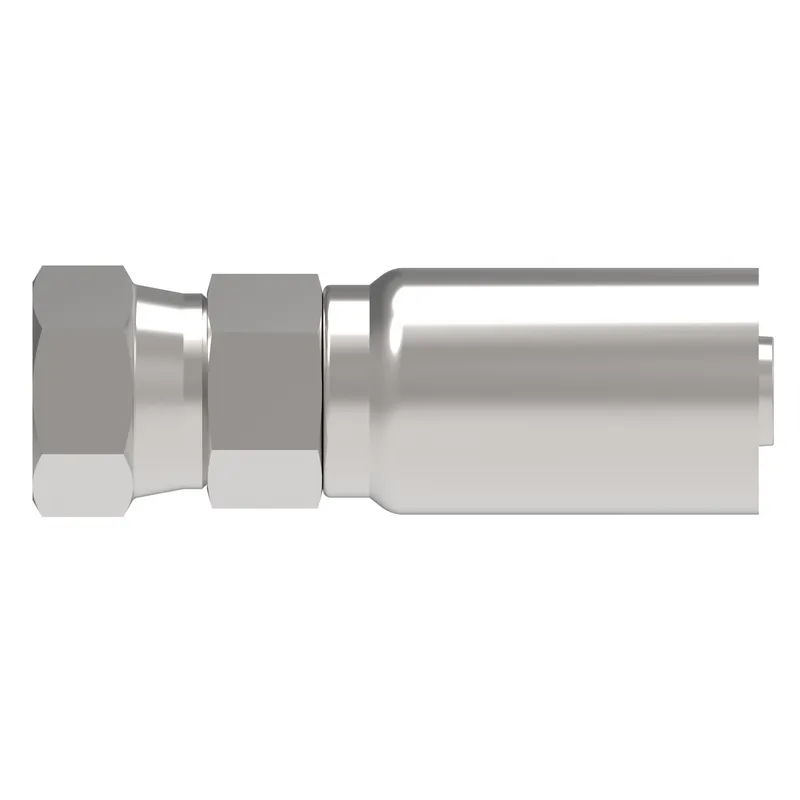

Danfoss 90L04-045400-0

HOSE FTG, 4T/04, JIC-F/04, AP, STR

MPN: 90L04-045400-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90L04-045400-0?

Danfoss HOSE FTG, 4T/04, JIC-F/04, AP, STR, manufacturer part number 90L04-045400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146139795
A dimension IN	2.530
A dimension MM	64.200
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.250
Construction Style	Crimp
End size 1	-4
End type 1	Female 37 degree swivel
Hex size 1 IN	0.629
Hex size 1 MM	16.000
Hex size 2 IN	0.629
Hex size 2 MM	16.000
Hose cut off factor IN	1.440
Hose cut off factor MM	36.600
Inside diameter IN	0.1600
Inside diameter MM	4.1000
Product height in	0.810
Product height mm	20.574
Product length in	2.530
Product length mm	64.262
Product material	316L Stainless steel
Product width in	0.810
Product width mm	20.574 mm
Thread sealant	No
Thread size 1	7/16-20 UNF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
