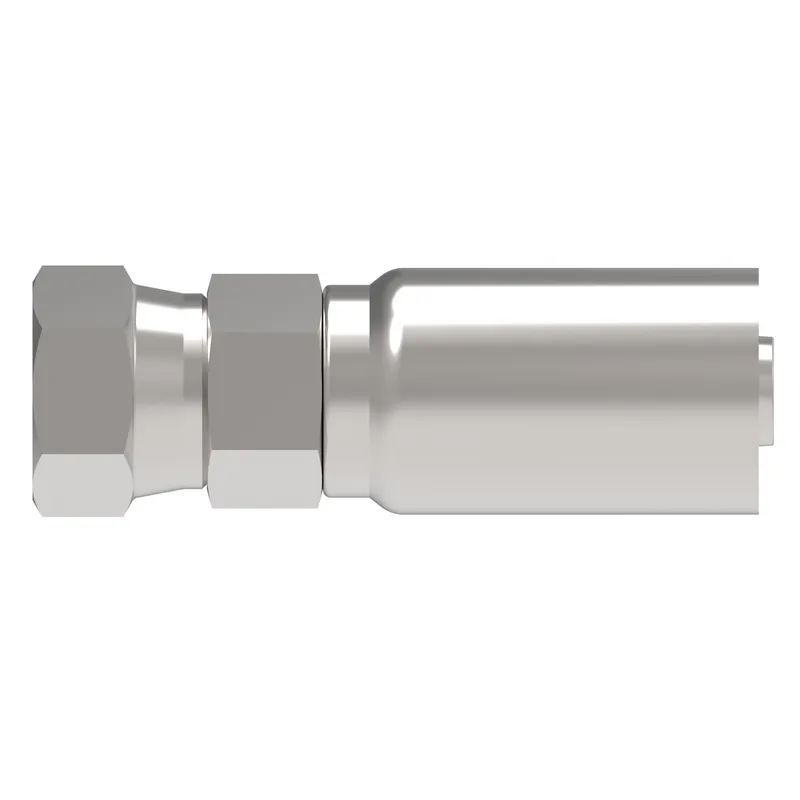

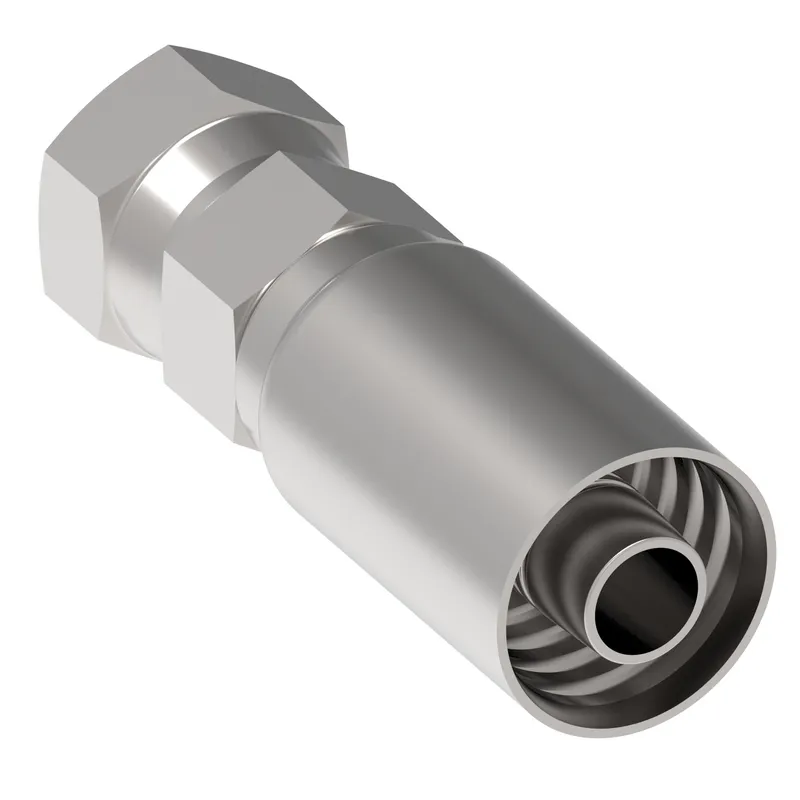

Danfoss 90H08-082400-0

Thermoplastic hydraulic hose and fitting

MPN: 90H08-082400-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90H08-082400-0?

Danfoss 90H08-082400-0, manufacturer part number 90H08-082400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789326232
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.630
Compatible hose ID MM	16.002
Compatible hoses	3440 (Size dependent), 3630 (Size dependent), 3E80 (Size dependent), 3R80 (Size dependent)
Construction Style	Swage
End size 1	-8
End type 1	Female pipe swivel (NPSM)
Hex size 1 IN	1.000
Hex size 1 MM	25.400
Hex size 2 IN	1.000
Hex size 2 MM	25.400
Hose cut off factor IN	1.500
Hose cut off factor MM	38.100
Hose size	-10
Inside diameter IN	0.3900
Inside diameter MM	9.9060
Product material	Carbon steel
Thread sealant	No
Working pressure max BAR	276
Working pressure max PSI	4000

90H08-082400-0: frequently asked questions

When can 90H08-082400-0 be shipped?

90H08-082400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90H08-082400-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90H08-082400-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90H08-082400-0, subject to availability and destination.
