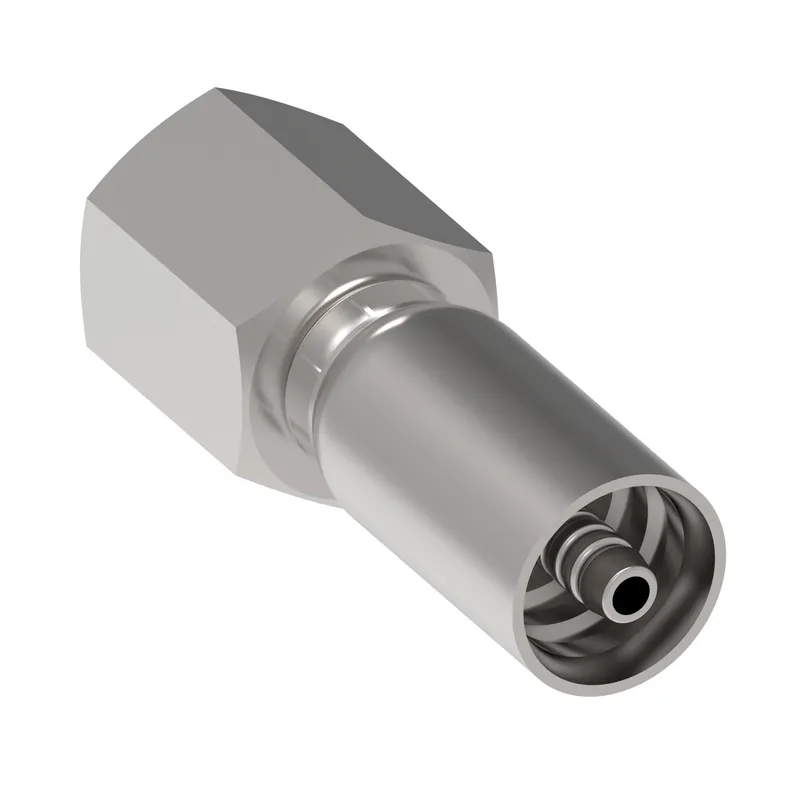

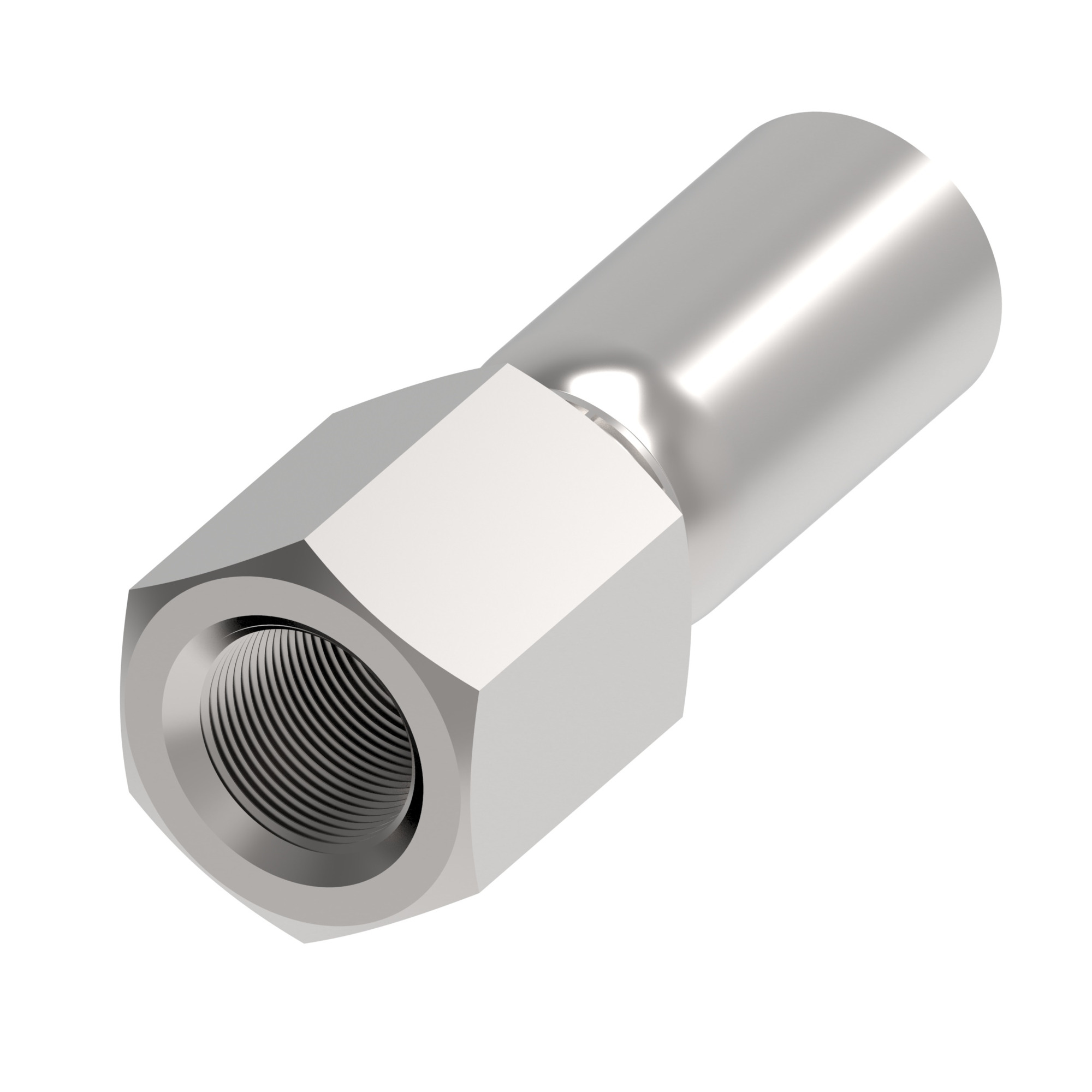

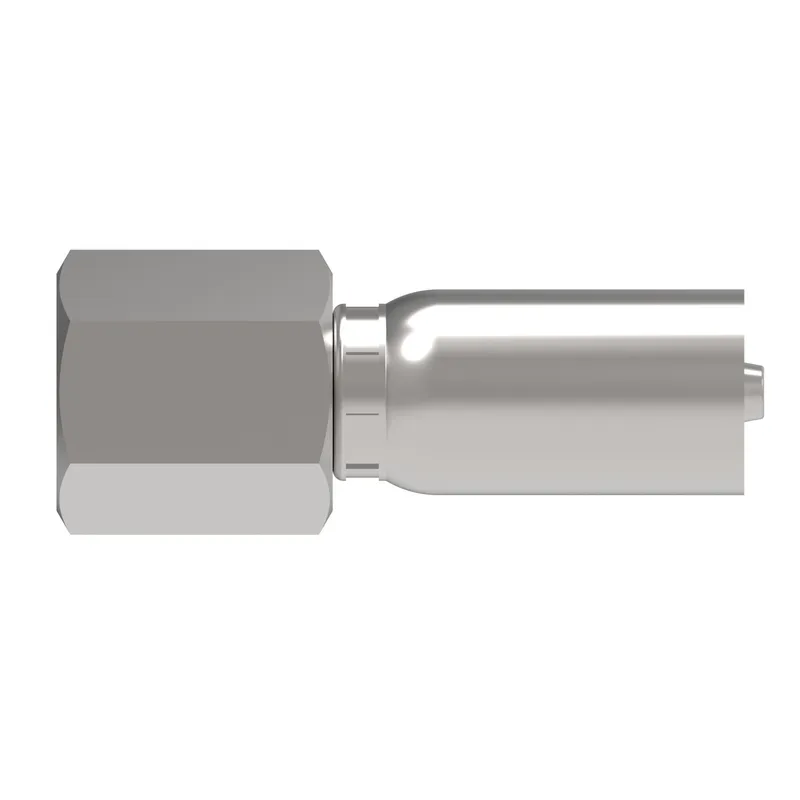

Danfoss 90H08-082000

HOSE FTG, SS/08, FP/08, CS, STR

MPN: 90H08-082000
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90H08-082000?

Danfoss HOSE FTG, SS/08, FP/08, CS, STR, manufacturer part number 90H08-082000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.960
A dimension MM	75.200
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-8
End type 1	Female pipe (NPTF)
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	1.500
Hose cut off factor MM	38.100
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	9.900
Product height in	1.060
Product height mm	26.924
Product length in	2.960
Product length mm	75.184
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924 mm
Thread sealant	Yes
Thread size 1	1/2-14 NPTF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	40
Working temperature min F	40

90H08-082000: frequently asked questions

When can 90H08-082000 be shipped?

90H08-082000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90H08-082000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90H08-082000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90H08-082000, subject to availability and destination.
