Danfoss 90H06-041000-0

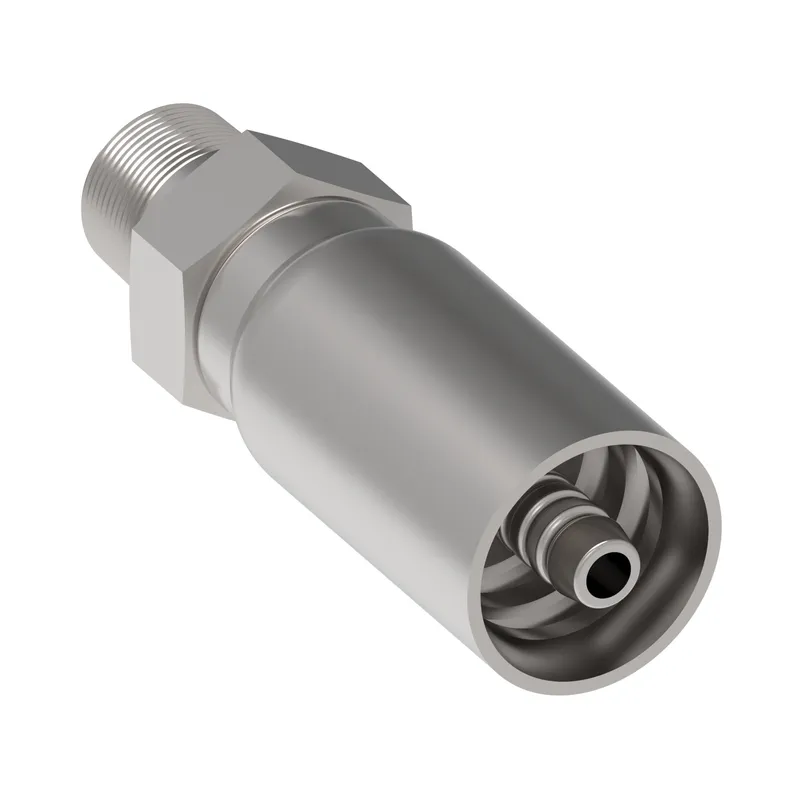

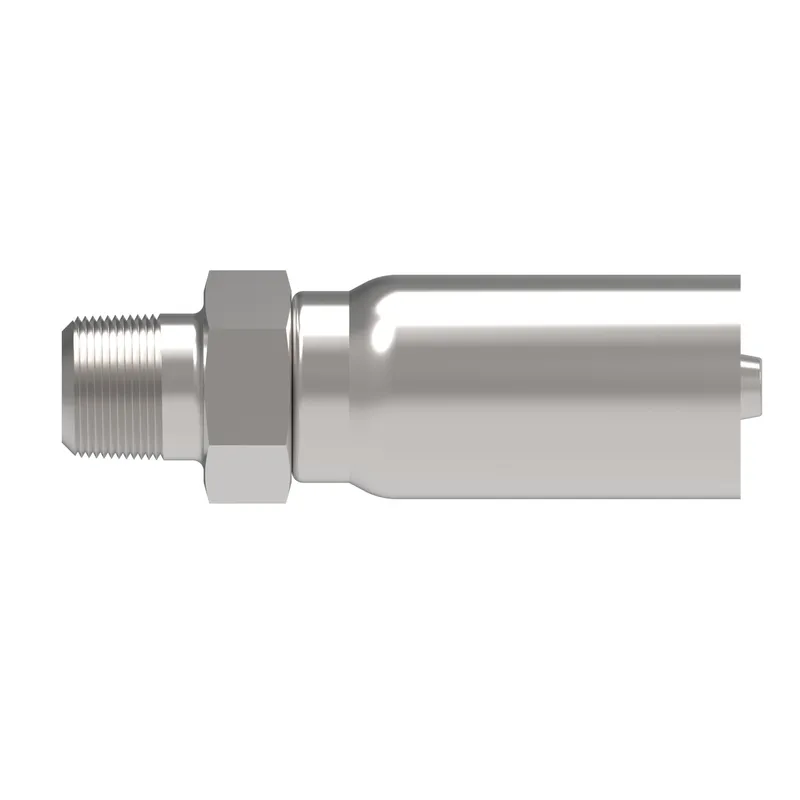

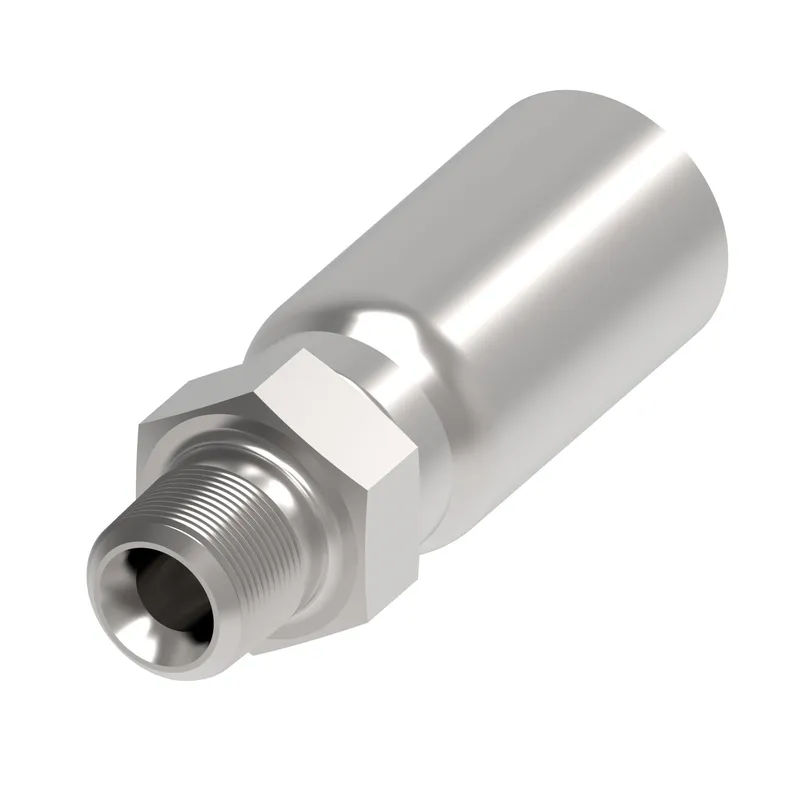

HOSE FTG, SS/04, NPTF-M/06, CS, STR

MPN: 90H06-041000-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90H06-041000-0?

Danfoss HOSE FTG, SS/04, NPTF-M/06, CS, STR, manufacturer part number 90H06-041000-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789325938
A dimension IN	2.580
A dimension MM	65.532
Angle shape	Straight
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible hoses	3440 (Size dependent), 3630 (Size dependent), 3E80 (Size dependent), 3R80 (Size dependent)
Construction Style	Crimp
End size 1	-6
End type 1	Male pipe (NPTF)
Finish plating	Zinc plating
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hose cut off factor IN	1.330
Hose cut off factor MM	33.782
Hose size	-4
Inside diameter IN	0.280
Inside diameter MM	7.112
Product height in	0.940
Product height mm	23.876
Product length in	2.590
Product length mm	65.786
Product material	Carbon steel
Product width in	0.940
Product width mm	23.876 mm
Thread sealant	Yes
Thread size 1	1/4-18 NPTF
Working pressure max BAR	552
Working pressure max PSI	8100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	40
Working temperature min F	40
