Danfoss 90H04-065500-0

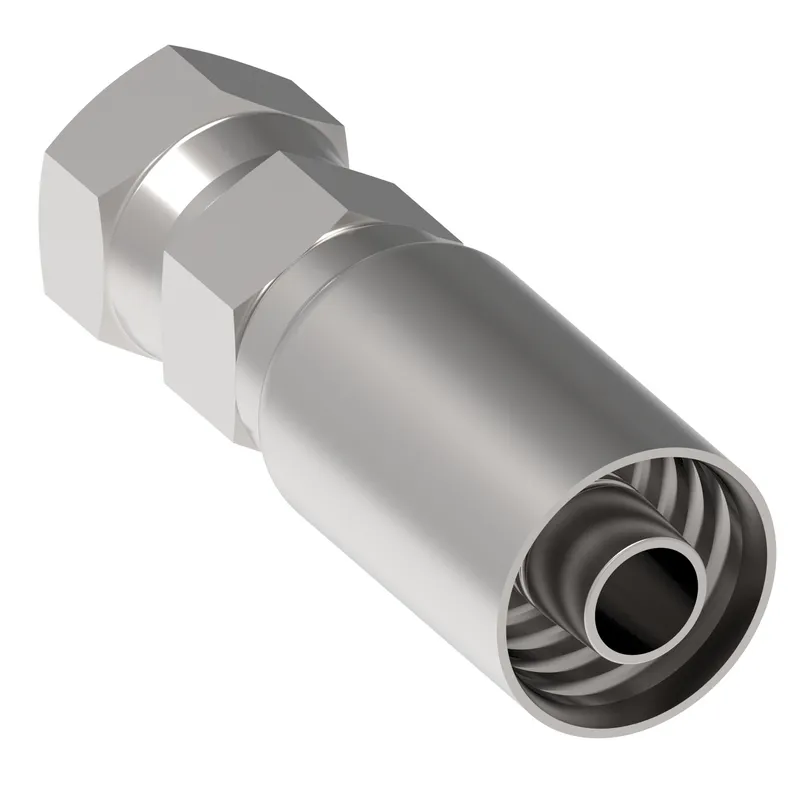

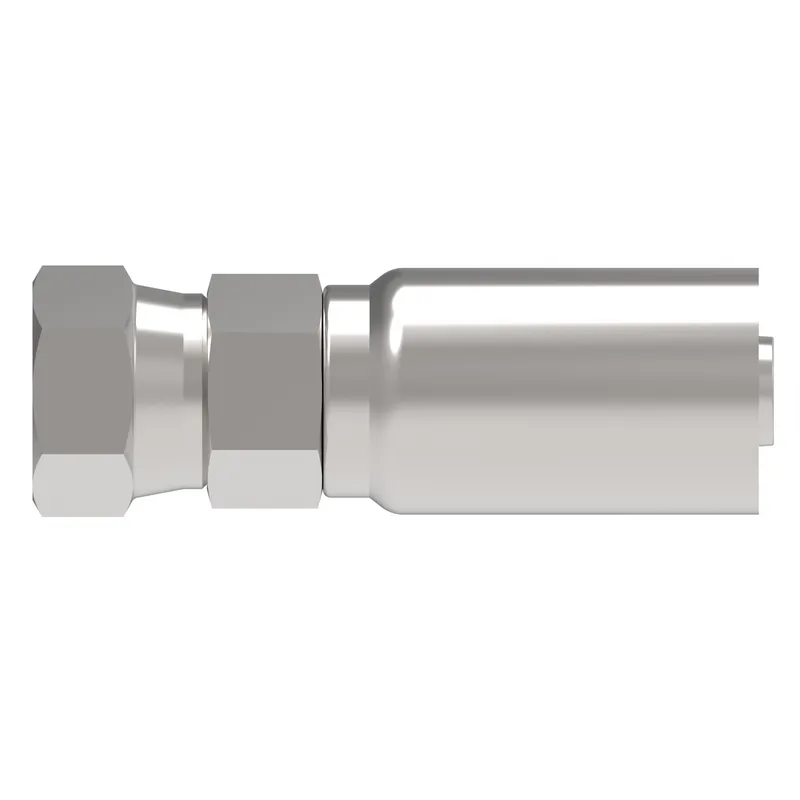

HOSE FTG, SS/06, JIC-F/04, CS, STR

MPN: 90H04-065500-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90H04-065500-0?

Danfoss HOSE FTG, SS/06, JIC-F/04, CS, STR, manufacturer part number 90H04-065500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789325907
A dimension IN	2.526
A dimension MM	64.160
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	9.652
Compatible hoses	3440 (Size dependent), 3630 (Size dependent), 3E80 (Size dependent), 3R80 (Size dependent)
Construction Style	Crimp
End size 1	-4
End type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hex size 2 IN	0.629
Hex size 2 MM	16.000
Hose cut off factor IN	1.446
Hose cut off factor MM	36.730
Hose size	-6
Inside diameter IN	0.156
Inside diameter MM	3.960
Product height in	0.750
Product height mm	19.050
Product length in	2.540
Product length mm	64.516
Product material	Carbon steel
Product width in	0.750
Product width mm	19.050 mm
Thread sealant	No
Thread size 1	9/16-18 UNF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

90H04-065500-0: frequently asked questions

When can 90H04-065500-0 be shipped?

90H04-065500-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90H04-065500-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90H04-065500-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90H04-065500-0, subject to availability and destination.
