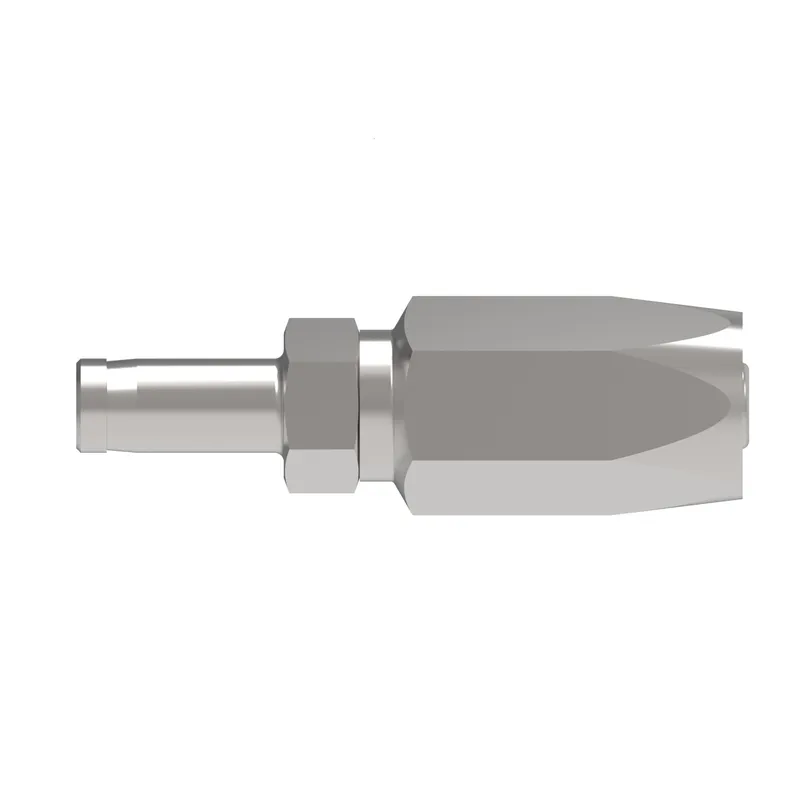

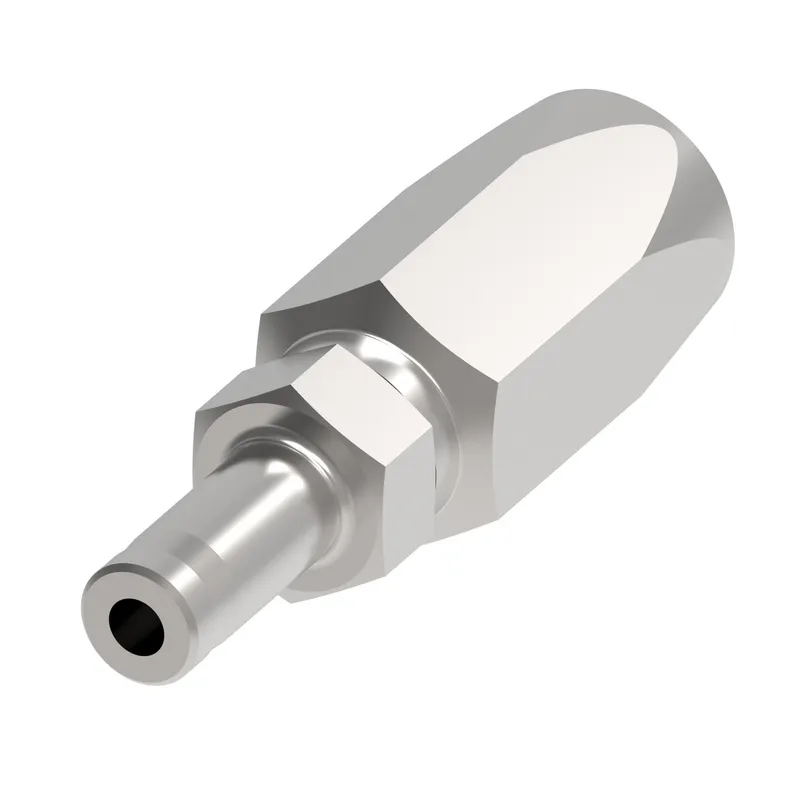

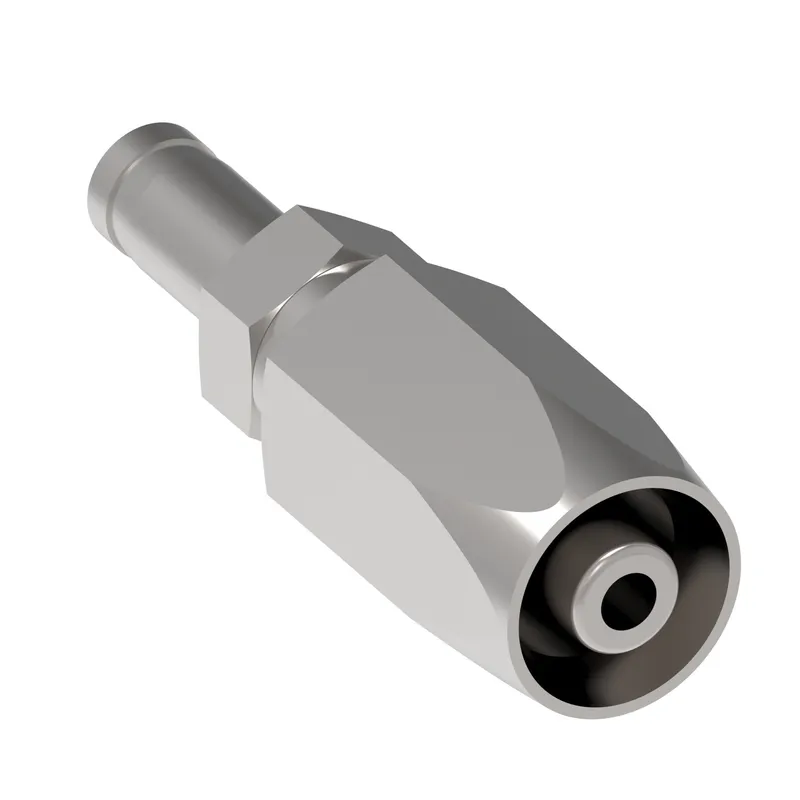

Danfoss 90406-06JK00-0

HOSE FTG, 4T/06, STPIPE/06, B, STR

MPN: 90406-06JK00-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90406-06JK00-0?

Danfoss HOSE FTG, 4T/06, STPIPE/06, B, STR, manufacturer part number 90406-06JK00-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	815628026147
A dimension IN	2.730
A dimension MM	69.342
Angle shape	Straight
Brand	Synflex by Danfoss
Construction Style	Crimp
End size 1	-6
End type 1	Standpipe Metric
Hex size 1 IN	0.625
Hex size 1 MM	15.000
Hose cut off factor IN	1.543
Hose cut off factor MM	39.000
Inside diameter IN	0.230
Inside diameter MM	5.842
Product height in	0.180
Product height mm	4.572
Product length in	2.730
Product length mm	69.342
Product material	Brass
Product width in	0.180
Product width mm	4.572 mm
Reusable socket hex MM	20.000
Thread sealant	No
Working pressure max BAR	400
Working temperature max C	93
Working temperature max F	200
Working temperature min C	-40
Working temperature min F	-40
