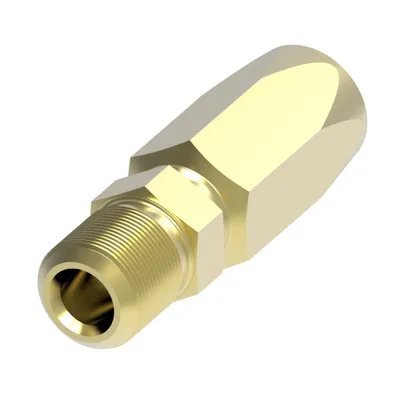

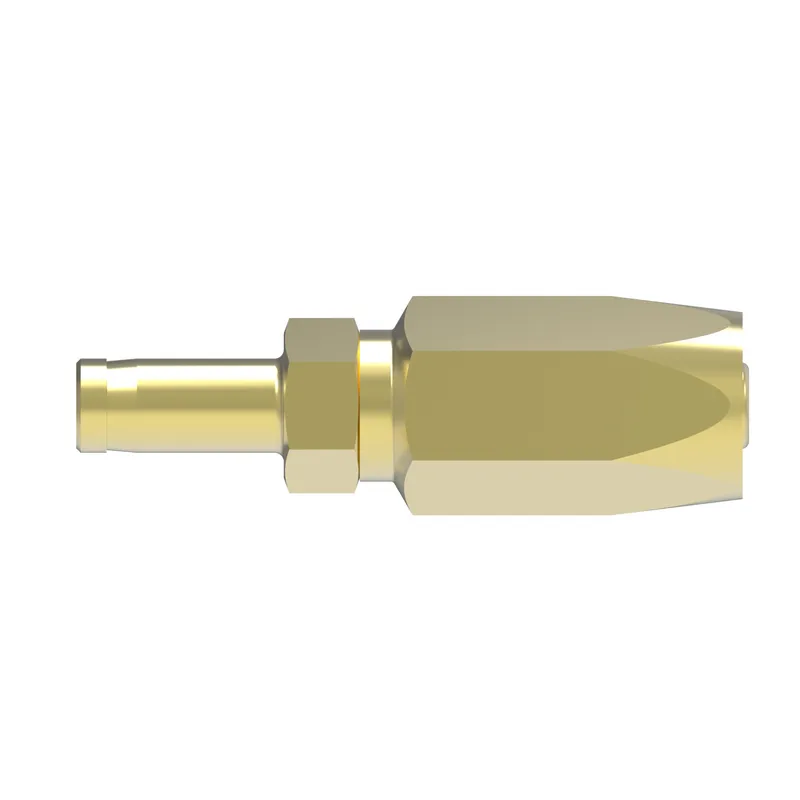

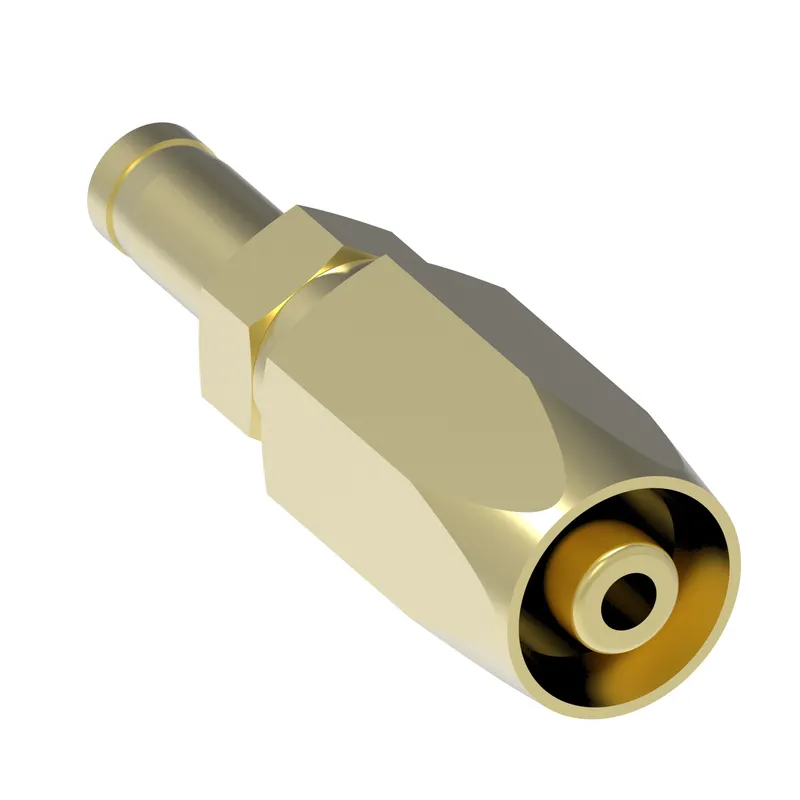

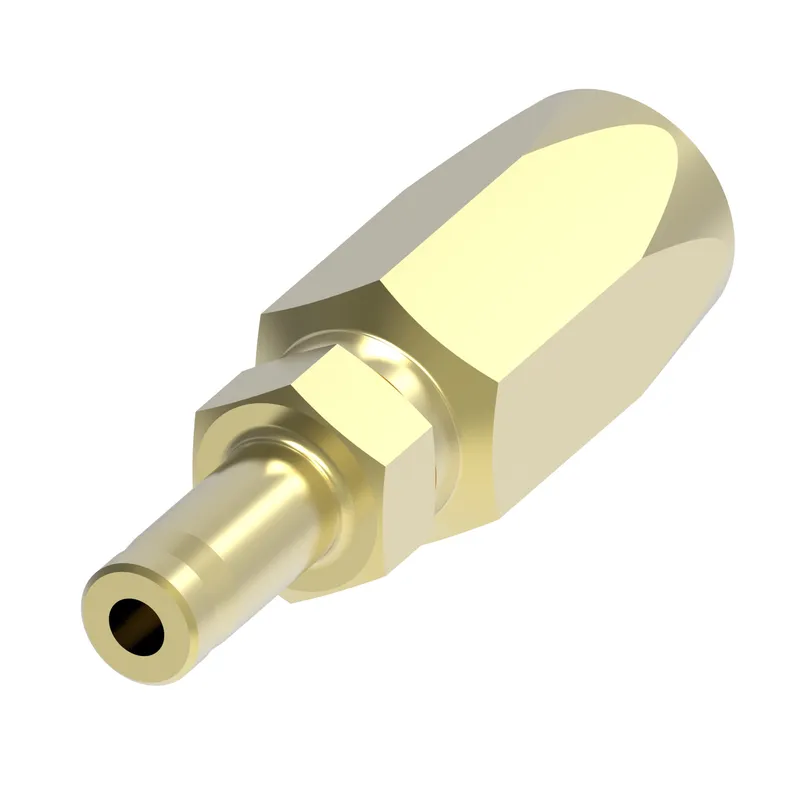

Danfoss 90404-04JK00-0

HOSE FTG, 4T/04, NPTF-M/04, B, STR

MPN: 90404-04JK00-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90404-04JK00-0?

Danfoss HOSE FTG, 4T/04, NPTF-M/04, B, STR, manufacturer part number 90404-04JK00-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789352460
A dimension IN	2.192
A dimension MM	55.700
Angle shape	Straight
Brand	Synflex by Danfoss
Construction Style	Reusable
End size 1	-4
Hex size 2 IN	0.500
Hex size 2 MM	12.000
Hose cut off factor IN	1.344
Hose cut off factor MM	34.160
Inside diameter IN	0.146
Inside diameter MM	3.708
Product height in	0.720
Product height mm	18.288
Product length in	2.190
Product length mm	55.626
Product material	Brass
Product width in	0.630
Product width mm	16.002 mm
Reusable socket hex MM	15.000
Thread sealant	No
Working pressure max BAR	400
Working temperature max C	93
Working temperature max F	200
Working temperature min C	-40
Working temperature min F	-40
