Danfoss 90316-165500-0

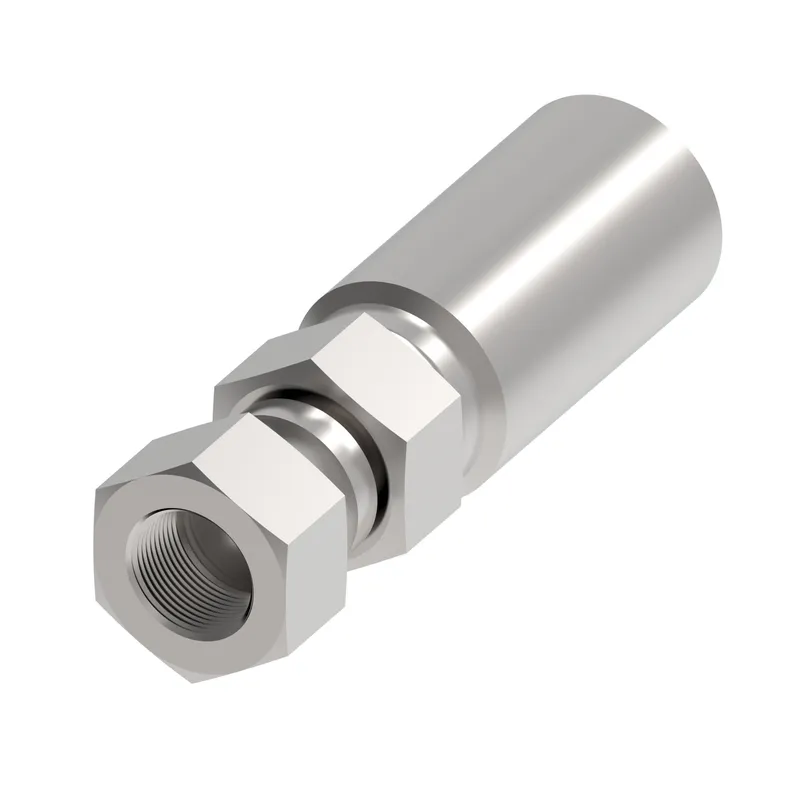

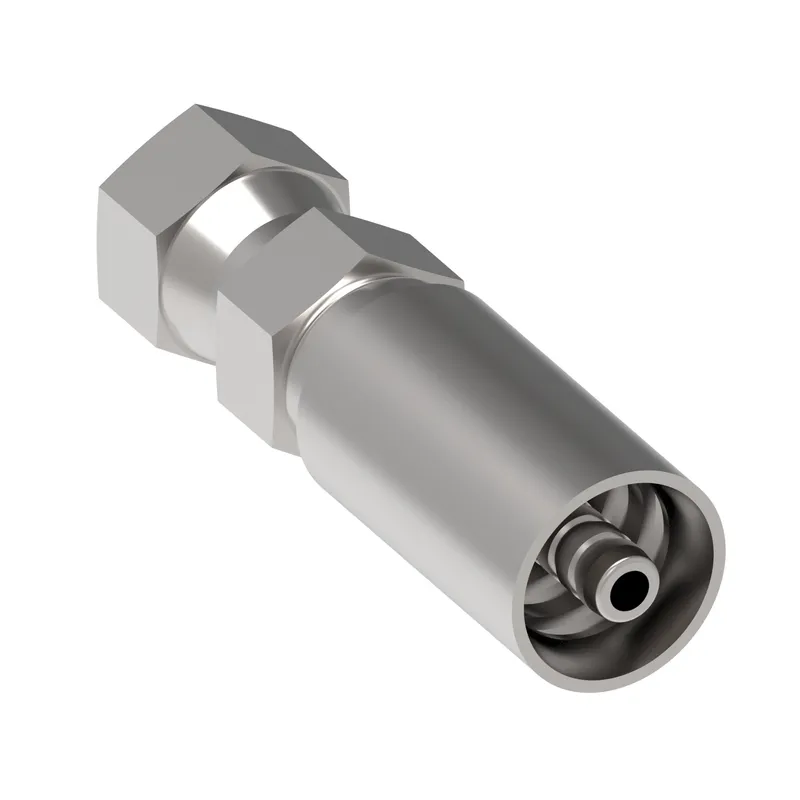

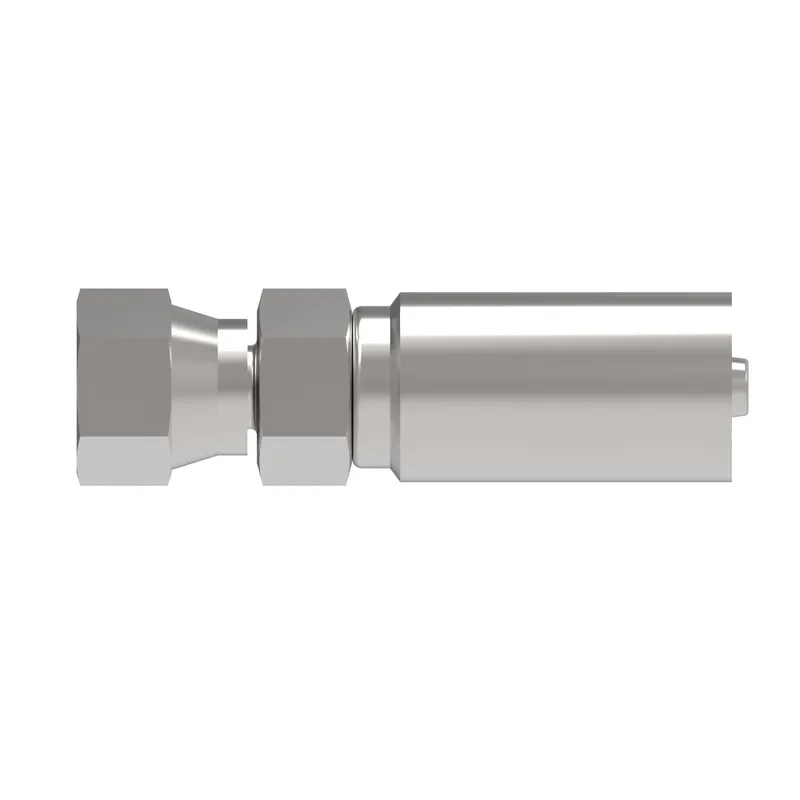

Ftng perm thermo SYNFLEX FEMALE SWIVEL

MPN
90316-165500-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90316-165500-0?

Danfoss Ftng perm thermo SYNFLEX FEMALE SWIVEL, manufacturer part number 90316-165500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146087300
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Construction StyleSwage
End size 1-16
End type 1Female 37 degree swivel
Hex size 1 IN1.380
Hex size 1 MM35.1
Hex size 2 IN1.500
Hex size 2 MM38.1
Hose cut off factor IN1.690
Hose cut off factor MM42.926
Hose size-16
Inside diameter IN0.810
Inside diameter MM20.574
Product materialCarbon steel
Thread sealantNo

90316-165500-0: frequently asked questions

When can 90316-165500-0 be shipped?

90316-165500-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90316-165500-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90316-165500-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90316-165500-0, subject to availability and destination.
