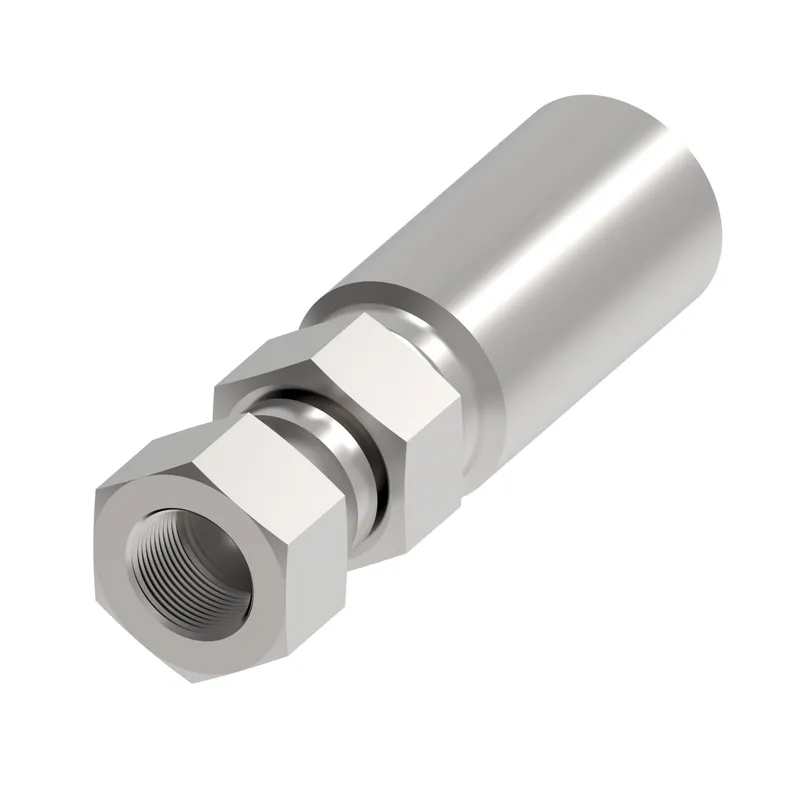

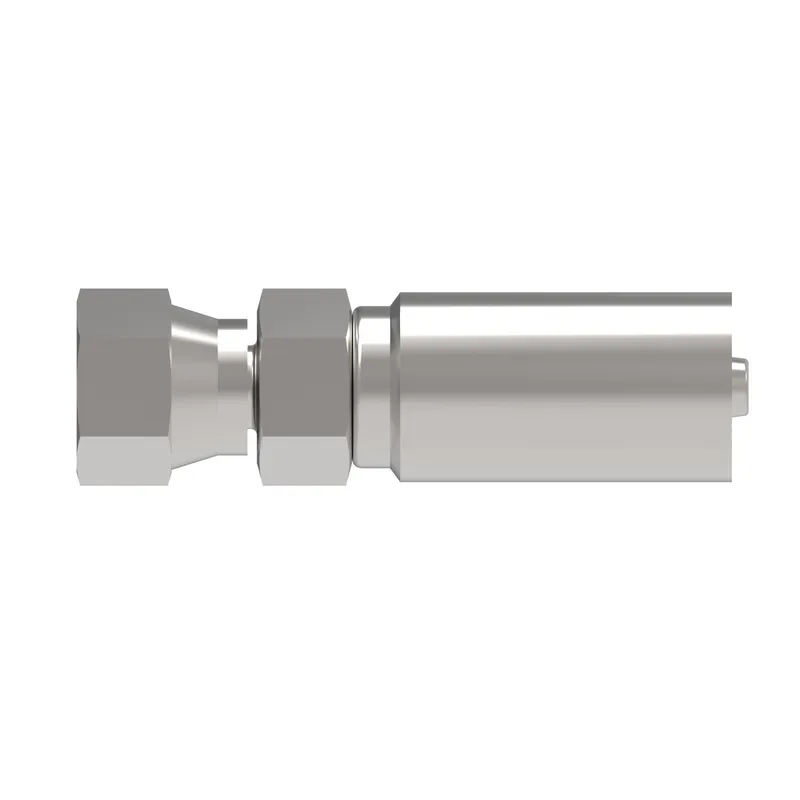

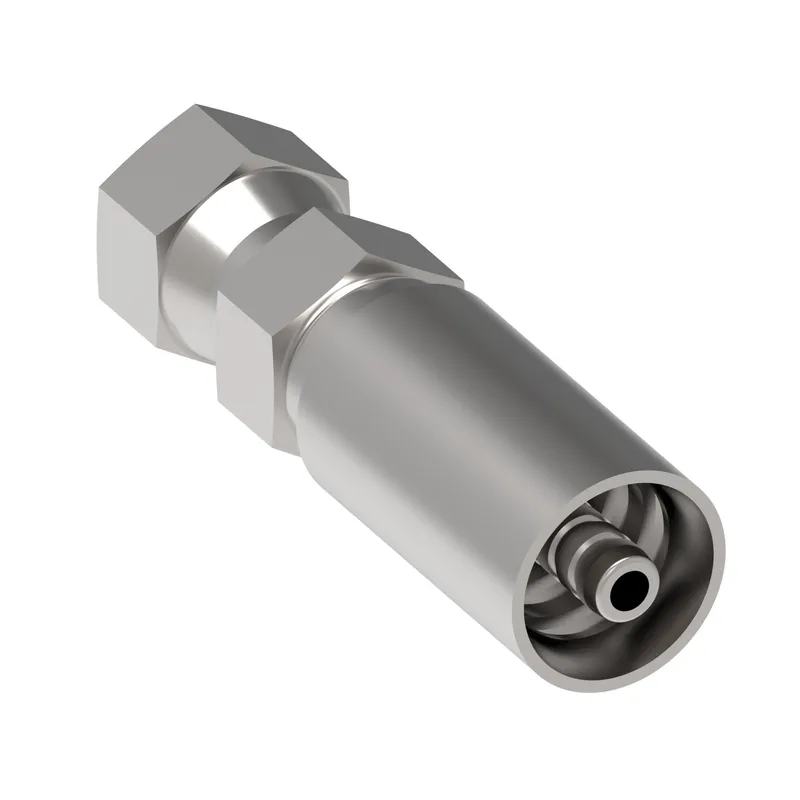

Danfoss 90312-125500-0

HOSE FTG, 4T/12, JIC-F/12, CS, STR

MPN
90312-125500-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90312-125500-0?

Danfoss HOSE FTG, 4T/12, JIC-F/12, CS, STR, manufacturer part number 90312-125500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789324450
A dimension IN3.432
A dimension MM87.170
Angle shapeStraight
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Compatible tube OD IN0.75
Compatible tube OD MM19.050
Construction StyleCrimp
End size 1-12
End type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN1.125
Hex size 1 MM28.0
Hex size 2 IN1.250
Hex size 2 MM31.0
Hose cut off factor IN1.745
Hose cut off factor MM44.320
Hose size-12
Inside diameter IN0.625
Inside diameter MM15.880
Product height in1.130
Product height mm28.702
Product length in3.430
Product length mm87.122
Product materialCarbon steel
Product width in1.130
Product width mm28.702 mm
Thread sealantNo
Thread size 11 1/16-12 UN
Tube OD 1 IN0.750
Tube OD 1 MM19.050
Working pressure max BAR228.00
Working pressure max PSI3300.00
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90312-125500-0: frequently asked questions

When can 90312-125500-0 be shipped?

90312-125500-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90312-125500-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90312-125500-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90312-125500-0, subject to availability and destination.
