Danfoss 90306-0655S0-0

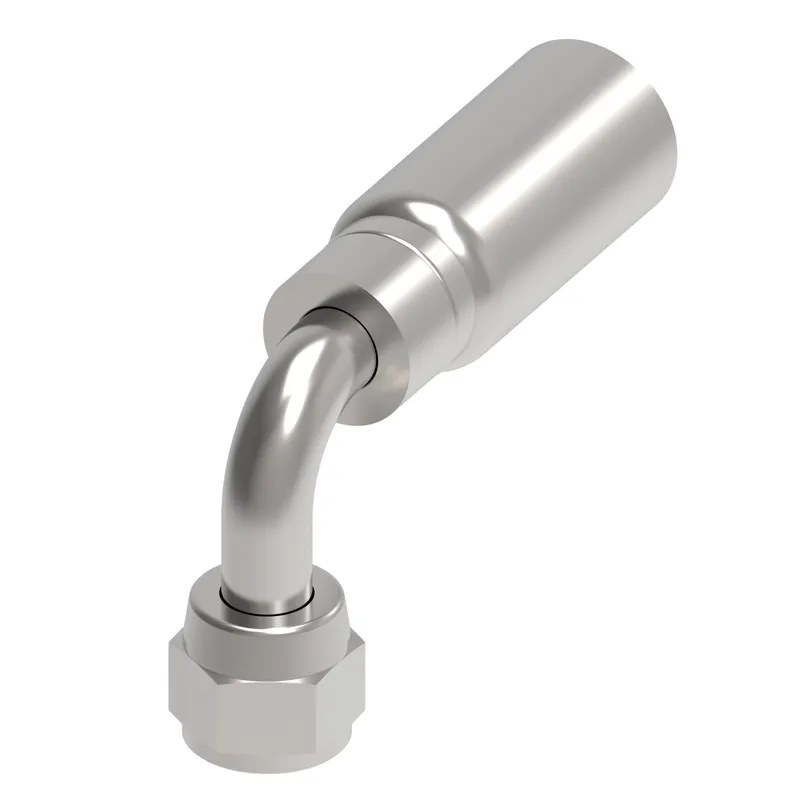

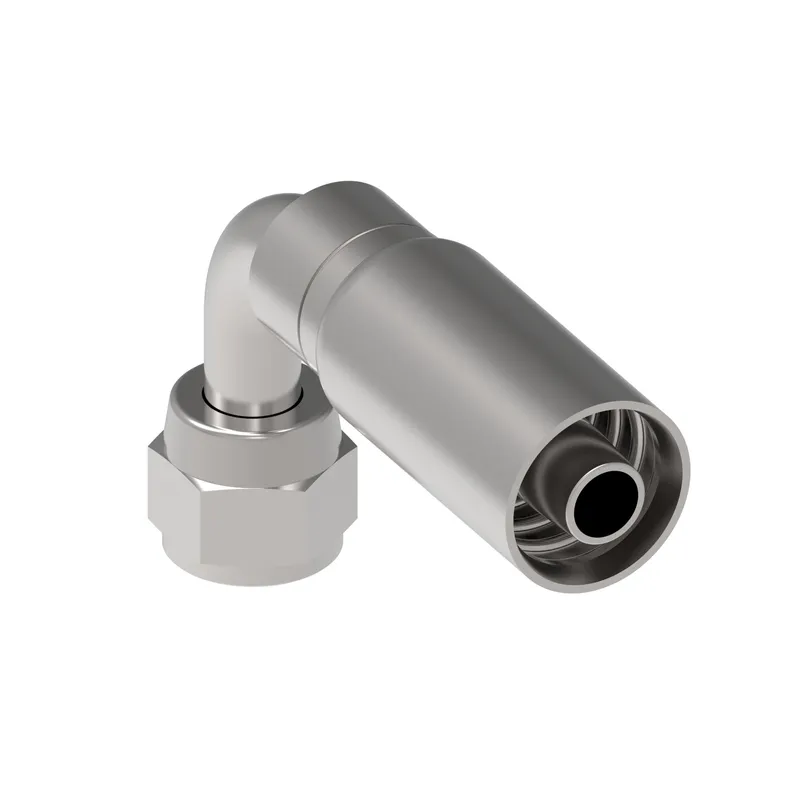

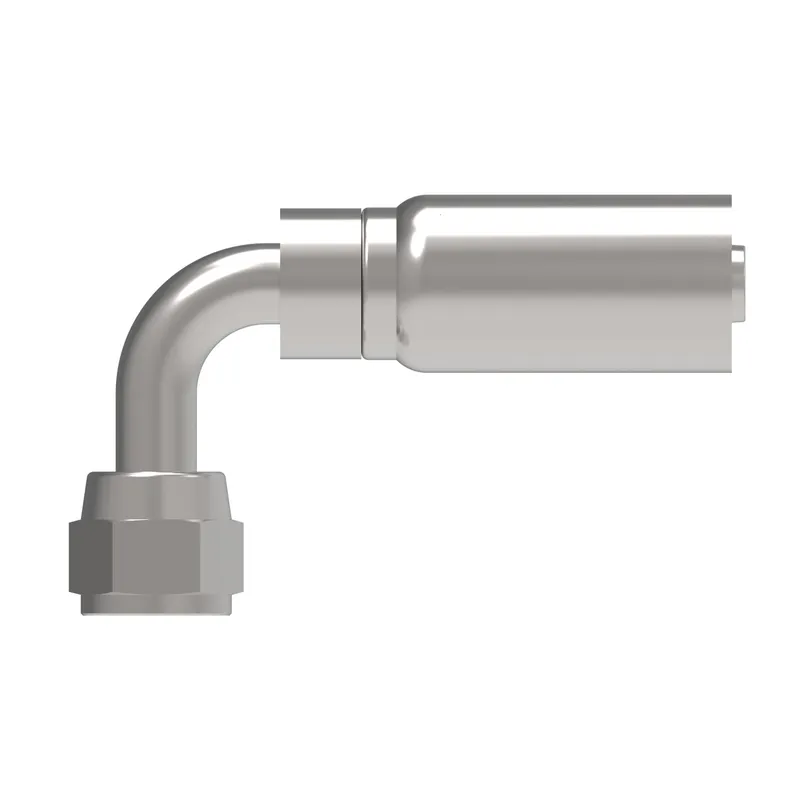

HOSE FTG, 4T/06, NPTF-M/06, CS, 90D

MPN
90306-0655S0-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90306-0655S0-0?

Danfoss HOSE FTG, 4T/06, NPTF-M/06, CS, 90D, manufacturer part number 90306-0655S0-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789325235
A dimension IN2.620
A dimension MM66.548
Angle shape90 Degree
Compatible hose ID IN0.380
Compatible hose ID MM9.652
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Compatible tube OD IN0.38
Compatible tube OD MM9.652
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM29.0
End size 1-6
End type 1Female inverted flare
Finish platingZinc plating
Hex size 1 IN0.688
Hex size 1 MM17.0
Hex size 2 IN0.690
Hex size 2 MM17.5
Hose cut off factor IN1.370
Hose cut off factor MM34.800
Hose size-6
Inside diameter IN0.240
Inside diameter MM6.100
Product height in1.130
Product height mm28.702
Product length in2.620
Product length mm66.548
Product materialCarbon steel
Product width in0.690
Product width mm17.526 mm
Thread sealantNo
Thread size 19/16-18 UNF
Tube OD 1 IN0.380
Tube OD 1 MM9.652
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
