Danfoss 90306-065540-0

CONEXION PERMANENTE JIC A 37 G HEMBRA

MPN
90306-065540-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90306-065540-0?

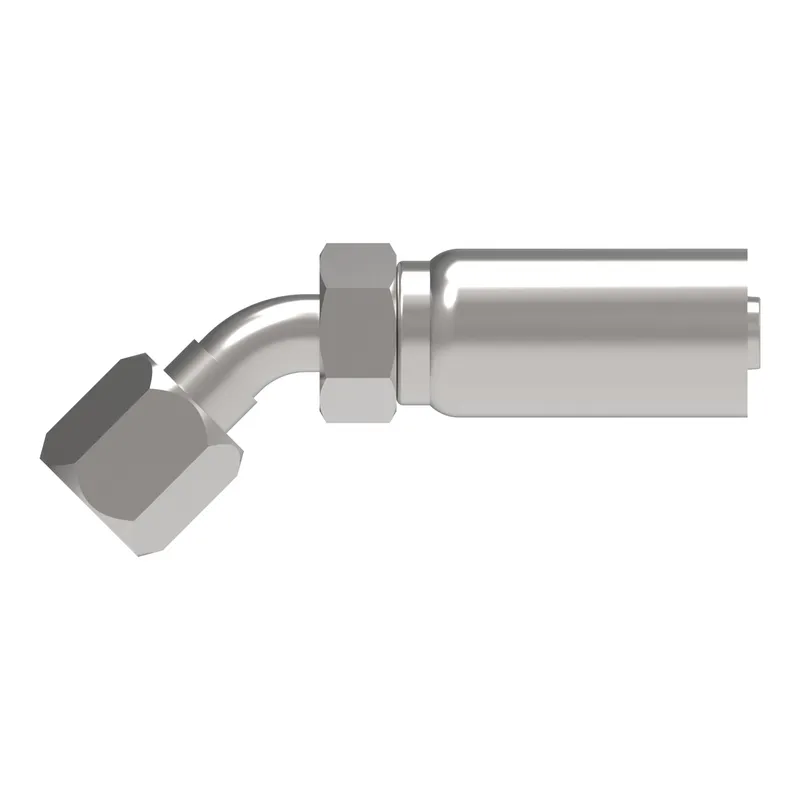

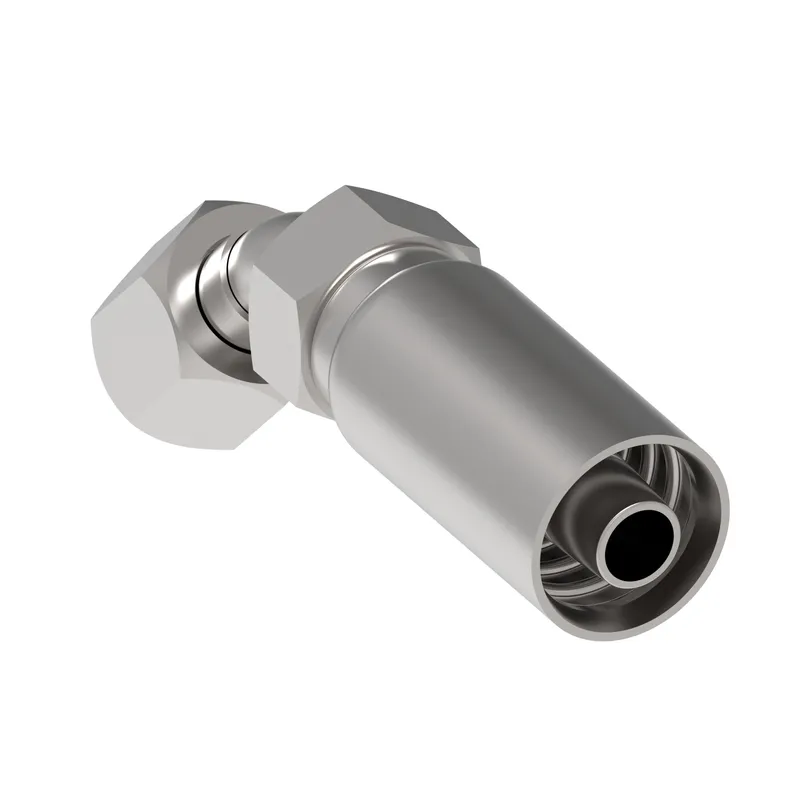

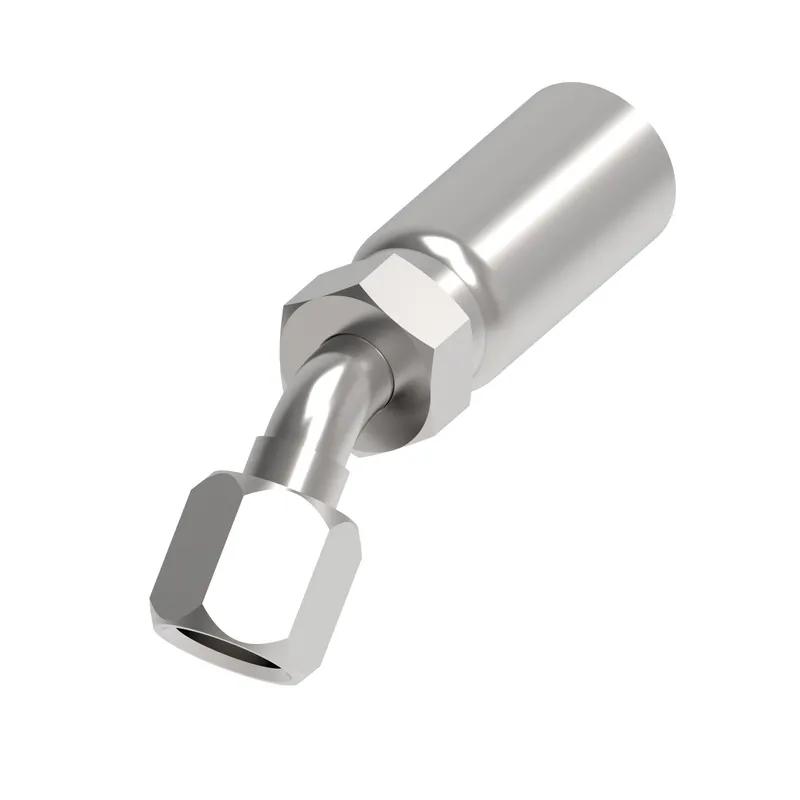

Danfoss CONEXION PERMANENTE JIC A 37 G HEMBRA, manufacturer part number 90306-065540-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789325228
Angle shape45 Degree
BrandSynflex by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.652
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Compatible tube OD IN0.38
Compatible tube OD MM9.652
Construction StyleSwage
End size 1-6
End type 1Female 37 degree swivel
Hex size 1 IN0.750
Hex size 1 MM19.100
Hex size 2 IN0.690
Hex size 2 MM17.500
Hose cut off factor IN1.690
Hose cut off factor MM42.926
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.112
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.380
Tube OD 1 MM9.652
Working pressure max BAR276
Working pressure max PSI4000

90306-065540-0: frequently asked questions

When can 90306-065540-0 be shipped?

90306-065540-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90306-065540-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90306-065540-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90306-065540-0, subject to availability and destination.
