Danfoss 90304-0655S0

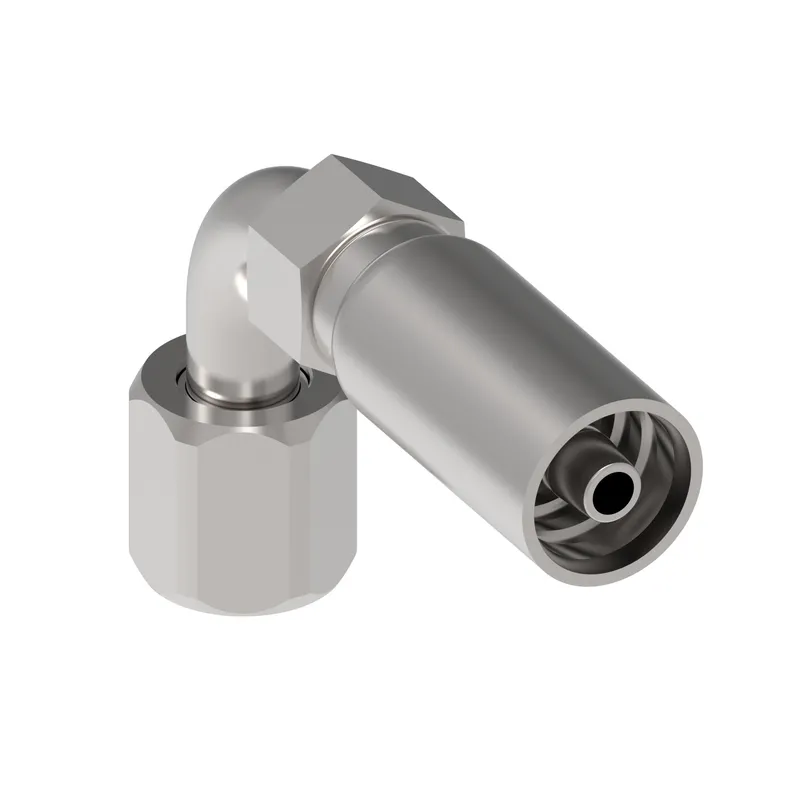

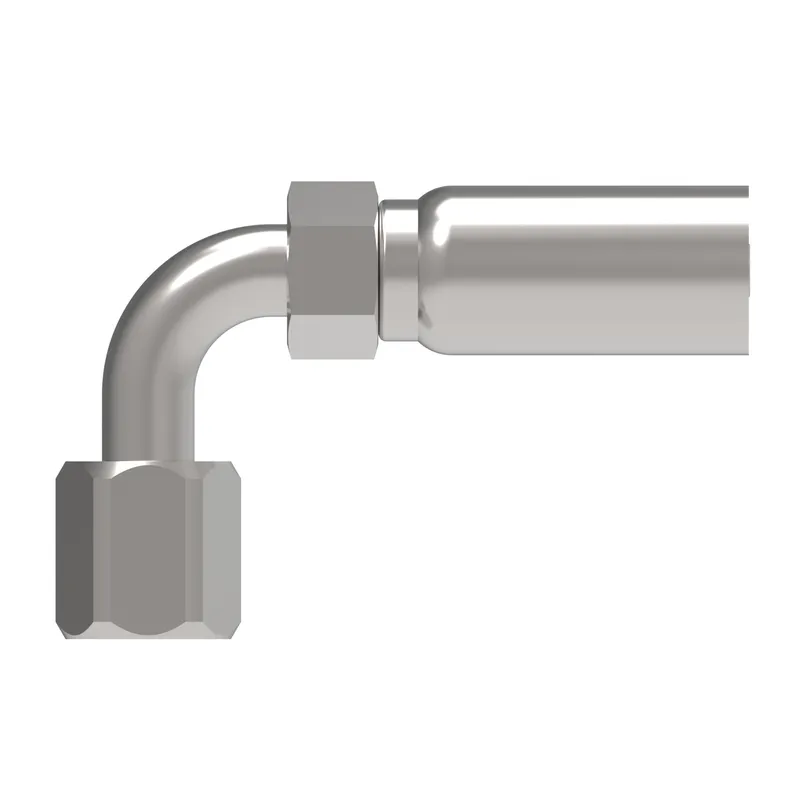

HOSE NIPPLE ASSY,4T/04,JIC-F/06,CS,90D

MPN
90304-0655S0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90304-0655S0?

Danfoss HOSE NIPPLE ASSY,4T/04,JIC-F/06,CS,90D, manufacturer part number 90304-0655S0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.432
A dimension MM61.770
Angle shape90 Degree
BrandSynflex by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Construction StyleCrimp
Drop dimension IN1.125
Drop dimension MM28.60
End type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN0.625
Hex size 1 MM15.000
Hex size 2 IN0.688
Hex size 2 MM17.000
Hose cut off factor IN1.352
Hose cut off factor MM34.340
Hose size-4
Inside diameter IN0.156
Inside diameter MM3.960
Product height in1.220
Product height mm30.988
Product length in2.590
Product length mm65.786
Product materialCarbon steel
Product width in0.690
Product width mm17.526 mm
Thread sealantNo
Thread size 19/16-18 UNF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90304-0655S0: frequently asked questions

When can 90304-0655S0 be shipped?

90304-0655S0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90304-0655S0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90304-0655S0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90304-0655S0, subject to availability and destination.
