Danfoss 90304-065500-0

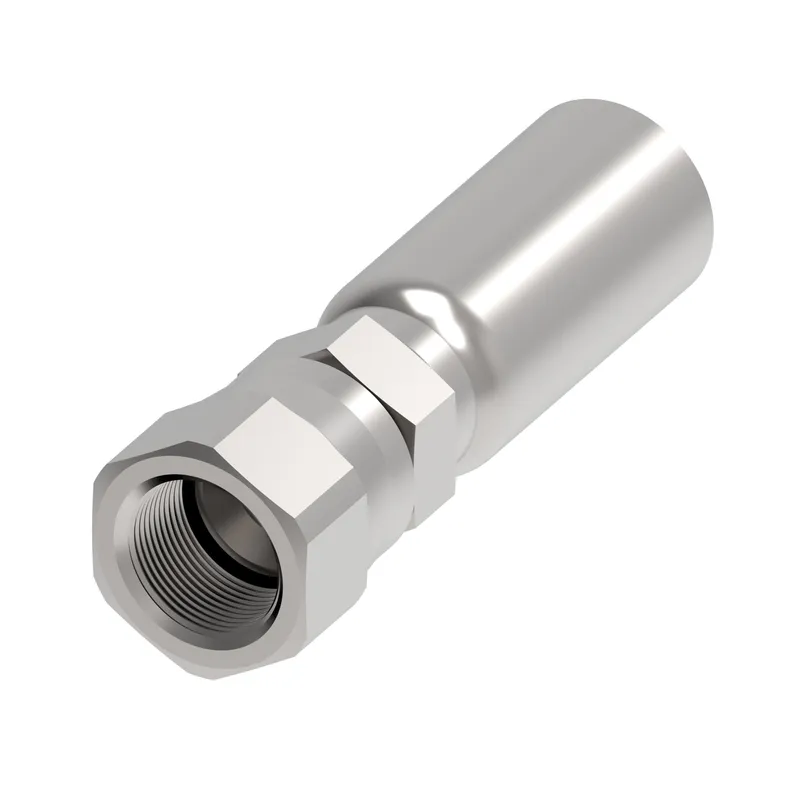

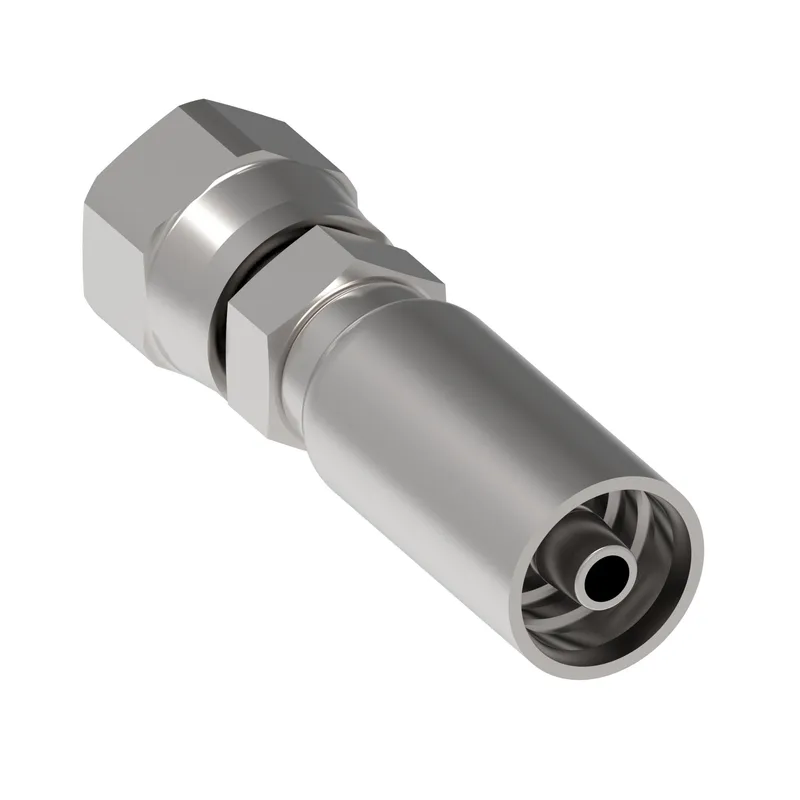

HOSE NIPPLE ASSY,4T/04,JIC-F/06,CS,STR

MPN
90304-065500-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90304-065500-0?

Danfoss HOSE NIPPLE ASSY,4T/04,JIC-F/06,CS,STR, manufacturer part number 90304-065500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.540
A dimension MM64.500
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.652
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Compatible tube OD IN0.38
Compatible tube OD MM9.652
Construction StyleCrimp
End size 1-6
End type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN0.625
Hex size 1 MM15.000
Hex size 2 IN0.750
Hex size 2 MM19.000
Hose cut off factor IN1.460
Hose cut off factor MM37.084
Hose size-6
Inside diameter IN0.1600
Inside diameter MM4.0000
Product height in0.750
Product height mm19.050
Product length in2.540
Product length mm64.516
Product materialCarbon steel
Product width in0.750
Product width mm19.050 mm
Thread sealantNo
Thread size 19/16-18 UNF
Tube OD 1 IN0.380
Tube OD 1 MM9.652
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
