Danfoss 90304-042400-0

Ftng perm thermo 30 DEG INVERTED FLARE

MPN
90304-042400-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

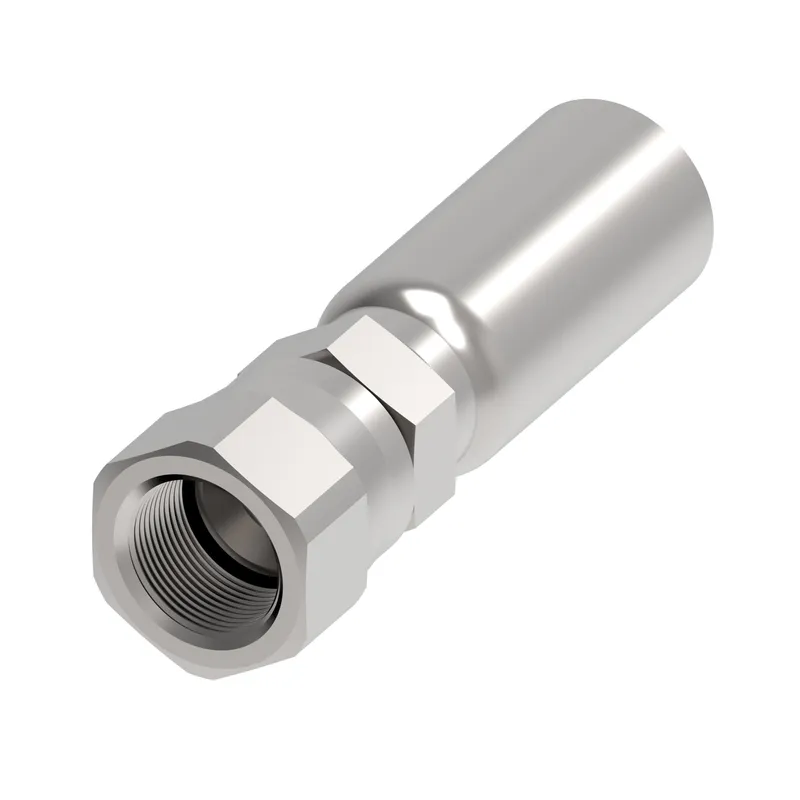

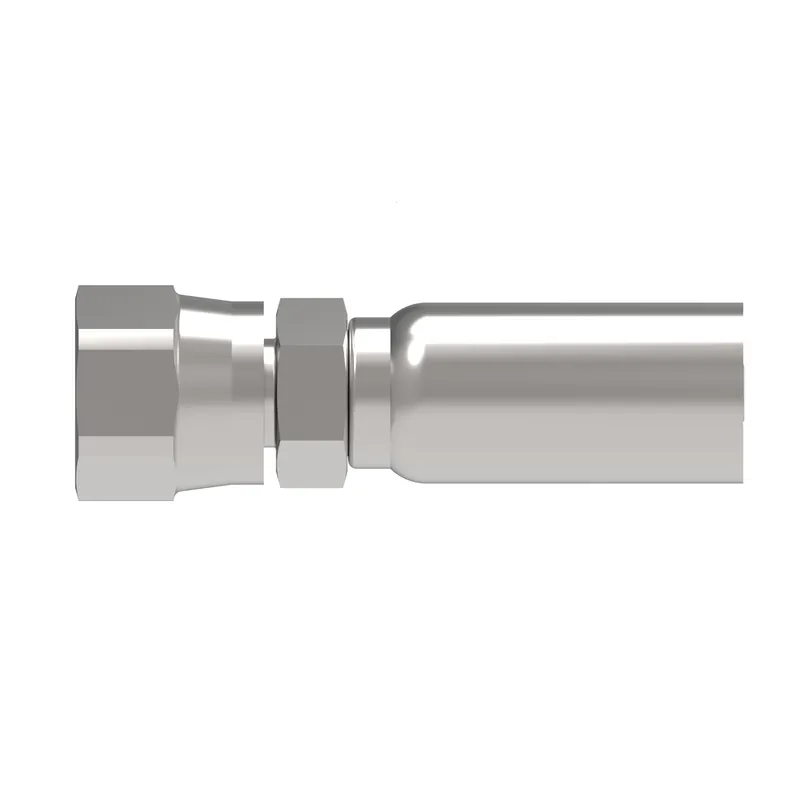

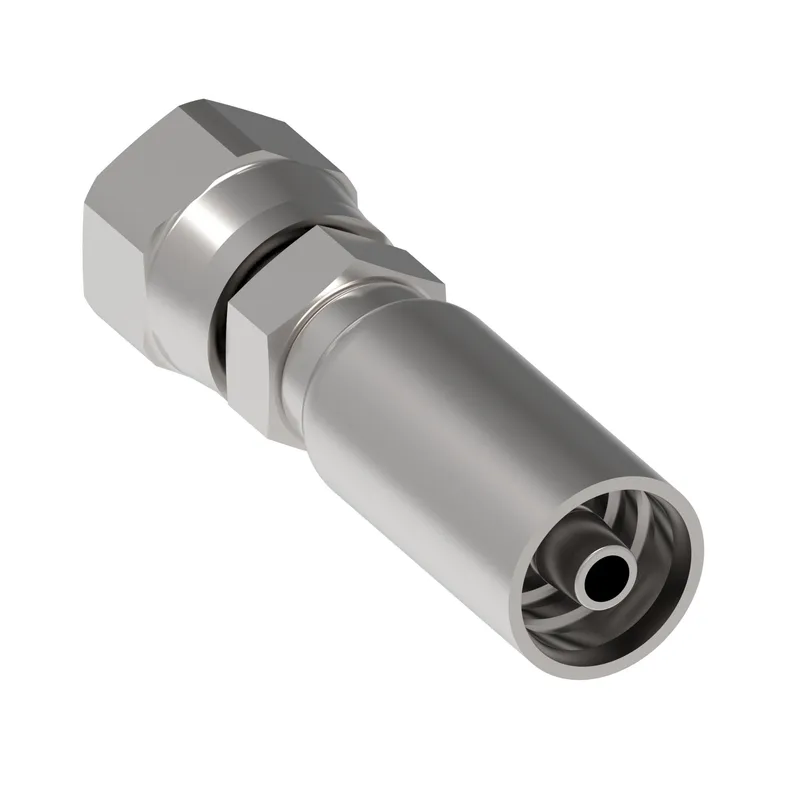

What is the Danfoss 90304-042400-0?

Danfoss Ftng perm thermo 30 DEG INVERTED FLARE, manufacturer part number 90304-042400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789324740
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Compatible tube OD IN0.25
Compatible tube OD MM6.350
Construction StyleSwage
End size 1-4
End type 1Female 37 degree swivel
Hex size 1 IN0.630
Hex size 1 MM16.002
Hex size 2 IN0.750
Hex size 2 MM19.050
Hose cut off factor IN1.310
Hose cut off factor MM33.274
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.064
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.250
Tube OD 1 MM6.350
Working pressure max BAR17
Working pressure max PSI250
Working temperature max C66
Working temperature max F150
Working temperature min C-23
Working temperature min F-10

90304-042400-0: frequently asked questions

When can 90304-042400-0 be shipped?

90304-042400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90304-042400-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90304-042400-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90304-042400-0, subject to availability and destination.
