Danfoss 90304-041000-0

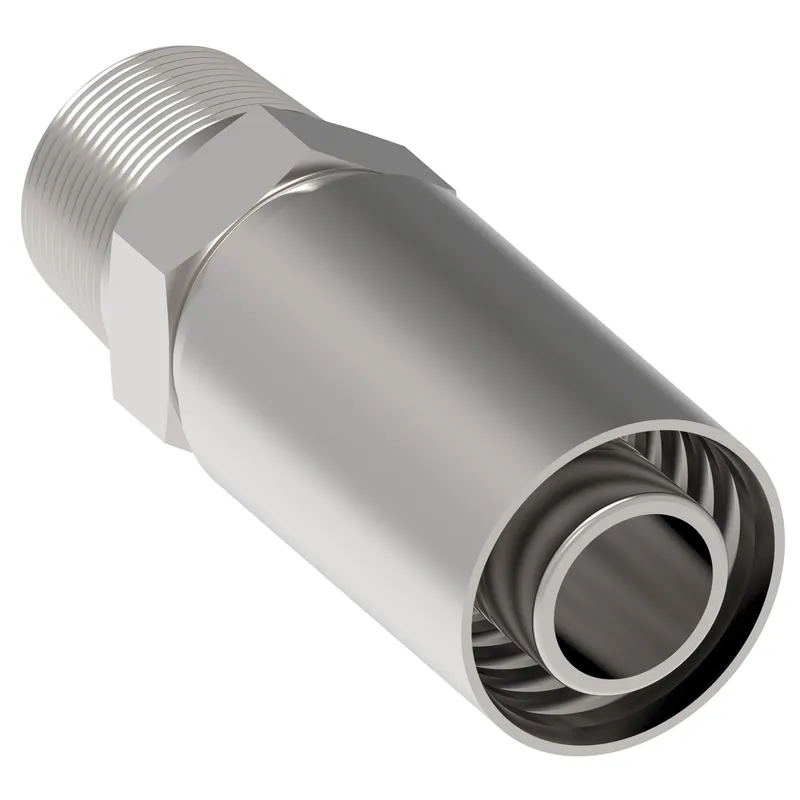

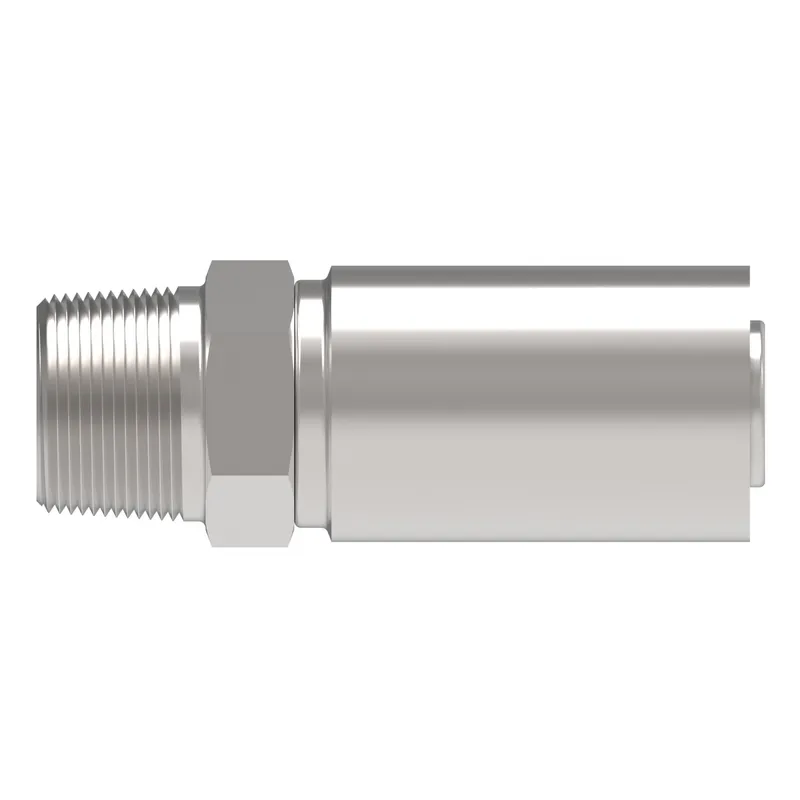

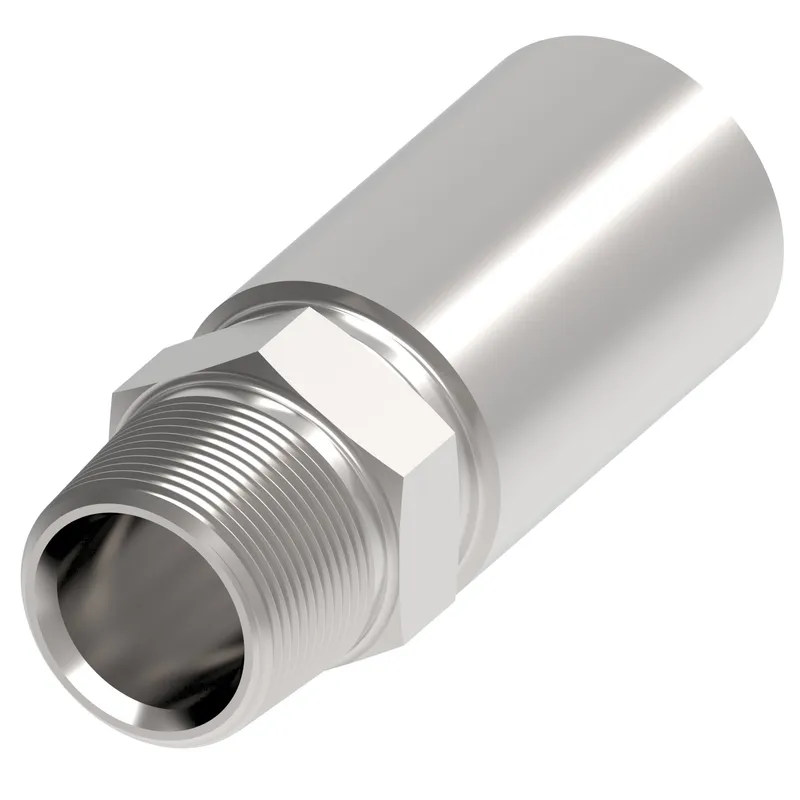

HOSE NIPPLE ASSY,4T/04,NPTF-M/04,CS,STR

MPN
90304-041000-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90304-041000-0?

Danfoss HOSE NIPPLE ASSY,4T/04,NPTF-M/04,CS,STR, manufacturer part number 90304-041000-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789304759
A dimension IN2.307
A dimension MM58.597
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Compatible tube OD IN0.25
Compatible tube OD MM6.350
Construction StyleCrimp
End size 1-4
End type 1Male pipe (NPTF)
Finish platingZinc plating
Hex size 1 IN0.688
Hex size 1 MM17.000
Hose cut off factor IN1.227
Hose cut off factor MM31.165
Hose size-4
Inside diameter IN0.156
Inside diameter MM3.962
Product height in1.060
Product height mm26.924
Product length in2.310
Product length mm58.674
Product materialCarbon steel
Product width in1.060
Product width mm26.924 mm
Thread sealantYes
Thread size 11/4-18 NPTF
Tube OD 1 IN0.250
Tube OD 1 MM6.350
Working pressure max BAR655
Working pressure max PSI9500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90304-041000-0: frequently asked questions

When can 90304-041000-0 be shipped?

90304-041000-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90304-041000-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90304-041000-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90304-041000-0, subject to availability and destination.
